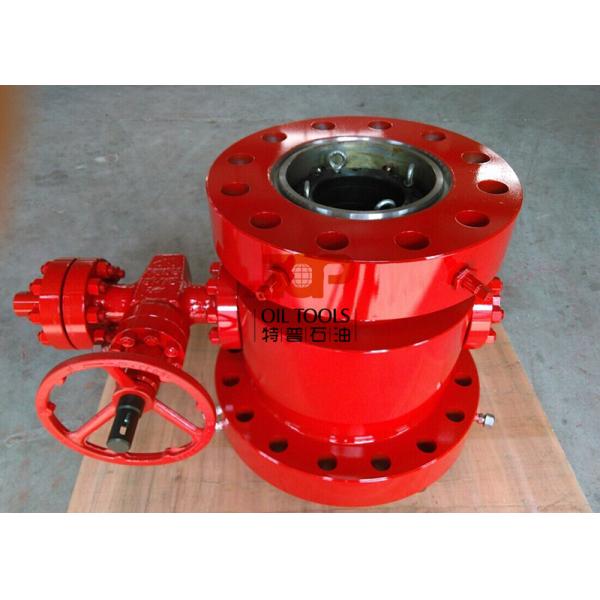

AISI 4130 6A Casing Spool Wellhead For Wellhead Casing Head Assembly
AISI 4130 6A Casing Spool Wellhead For Wellhead Casing Head Assembly
AISI 4130 6A Casing Spool Wellhead For Wellhead Casing Head Assembly
AISI 4130 6A Casing Spool Wellhead For Wellhead Casing Head Assembly
Specifications
Brand Name :
ZZ TOP OIL TOOLS
Model Number :
Casing Spool
Certification :
ISO, API
Place of Origin :
China
MOQ :
1 set
Price :
USD 1-10000/set
Payment Terms :
L/C, T/T, D/P
Supply Ability :
10 set/month
Delivery Time :
30-50 days
Packaging Details :
Pollywood
Product :
Casing Spool
Material :
AISI 4130 Alloy Steel
Flange Size :
13 5/8"
Working Pressure :
5000 Psi
Connection :
Flange end
Usage :
Wellhead Equipment
Working Condition :
Oil & Gas H2S service
Working Temperature :
P-U
Description

API 6A Wellhead Casing Spool For Wellhead Casing Head Assembly

Casing spool is well control equipment connected above the Casing Head for oil & gas well drilling operation. The casing spool is designed and manufactured according to API 6A Specification. The casing spool provides a bore in the top bowl for the casing hanger seals that allows the suspension of production casing. In lower bowl, it provides a secondary seal for the previous casing string (intermediate casing) against the counterbore.

Specification of Casing Spool

Bottom flange Top flange
Size W.P. (psi) Size W.P. (psi) A mm (in) B mm (in) C mm (in)
11" 2, 000 11" 2, 000 500 (19.69) 230 (9.06) 280 (11.02)
3, 000 500 (19.69) 230 (9.06) 280 (11.02)
3, 000 3, 000 500 (19.69) 230 (9.06) 280 (11.02)
5, 000 500 (19.69) 230 (9.06) 280 (11.02)
5, 000 5, 000 650 (25.59) 230 (9.06) 280 (11.02)
10, 000 650 (25.59) 230 (9.06) 280 (11.02)
13-5/8" 2, 000 11" 2, 000 480 (18.90) 230 (9.06) 280 (11.02)
3, 000 560 (22.47) 230 (9.06) 280 (11.02)
5, 000 660 (25.98) 230 (9.06) 280 (11.02)
13-5/8" 2, 000 580 (22.83) 230 (9.06) 350 (13.80)
3, 000 580 (22.83) 230 (9.06) 350 (13.80)
5, 000 600 (23.62) 230 (9.06) 350 (13.80)
3, 000 11 3, 000 560 (22.47) 230 (9.06) 280 (11.02)
5, 000 660 (25.98) 230 (9.06) 280 (11.02)
13-5/8" 3, 000 660 (25.98) 230 (9.06) 350 (13.80)
5, 000 660 (25.98) 230 (9.06) 350 (13.80)
13-5/8" 5, 000 11 5, 000 660 (25.98) 230 (9.06) 280 (11.02)
10, 000 725 (28.54) 230 (9.06) 280 (11.02)
15, 000 725 (28.54) 230 (9.06) 280 (11.02)
13-5/8" 5, 000 725 (28.54) 230 (9.06) 350 (13.80)
5, 000 725 (28.54) 259 (10.20) 350 (13.80)
10, 000 740 (29.13) 230 (9.06) 350 (13.80)
15, 000 750 (29.53) 230 (9.06) 350 (13.80)
10, 000 11 10, 000 725 (28.54) 230 (9.06) 280 (11.02)
15, 000 725 (28.54) 230 (9.06) 280 (11.02)
13-5/8" 10, 000 740 (29.13) 230 (9.06) 350 (13.80)
15, 000 800 (31.50) 230 (9.06) 350 (13.80)
16-3/4" 2, 000 11 2, 000 580 (22.83) 230 (9.06) 280 (11.02)
3, 000 580 (22.83) 230 (9.06) 280 (11.02)
13-5/8" 2, 000 580 (22.83) 304 (11.97) 350 (13.80)
3, 000 600 (23.62) 304 (11.97) 350 (13.80)
5, 000 620 304 350


AISI 4130 6A Casing Spool Wellhead For Wellhead Casing Head Assembly AISI 4130 6A Casing Spool Wellhead For Wellhead Casing Head Assembly
