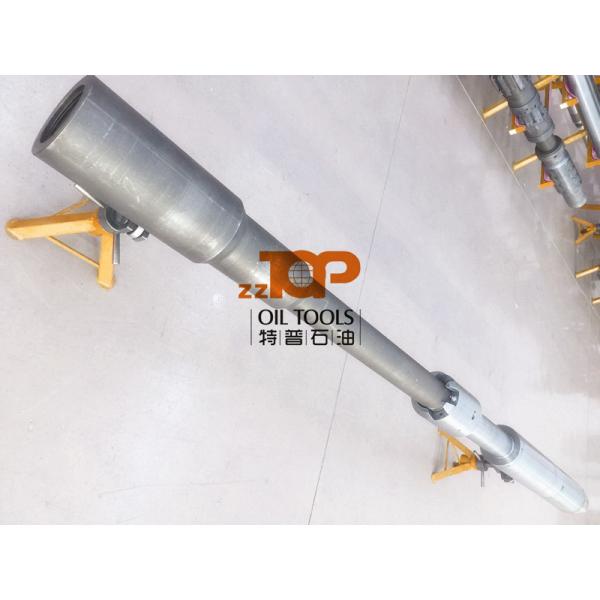

8 Inch Super Safety Valve For Oil Well Drill Stem Testing Tools BOP Subsurface Safety Valve
8 Inch Super Safety Valve For Oil Well Drill Stem Testing Tools BOP Subsurface Safety Valve
8 Inch Super Safety Valve For Oil Well Drill Stem Testing Tools BOP Subsurface Safety Valve
8 Inch Super Safety Valve For Oil Well Drill Stem Testing Tools BOP Subsurface Safety Valve
Specifications
Brand Name :
ZZ TOP OIL TOOLS
Model Number :
SSV
Certification :
ISO, API
Place of Origin :
China
MOQ :
1 set
Price :
USD 1-10000/set
Payment Terms :
L/C, T/T, D/P
Supply Ability :
10 set/month
Delivery Time :
30-50 days
Packaging Details :
Pollywood
Product :
Super Safety Valve / SSV
Application :
Oil Well Testing Service
Usage :
Well Flow Control
Size :
8 inch
Working Pressure :
15000psi
Connection :
IF, EUE , CAS
Working Condition :
Oil & Gas & H2S service
Working Temperature :
Up to 425oF
Description

BOP Safety Valve / Super Safety Valve For Oil Well Testing Service

The BOP Safety Valve is fail-safe sub-surface barrier, works as a master valve for testing from a land or jack-up rig. It is normally run inside or below the blowout preventer (BOP) and is used to control well flow. The Safety Valve is held in the BOP so that when activated, the ball valve will seal off the string below. Meanwhile, pipe rams can be activated to seal off the annulus

The BOP Safety Valve features a 3.0-in. ID, 8.0-in. OD, and 15,000 psi working pressure. This valve has a through port for chemical injection downhole or to control a subsurface safety valve. It is capable of cutting wireline and coiled tubing using the nitrogen charge or by application of balance line pressure.


Technical parameter of BOP Safety Valve / Super Safety Valve


OD
ID
End
Total Length
Tensile Rating**
Working Pressure
Temperature Range
in. (cm) in. (cm) Connections in, (cm) lb (kg) lb (kg) °F(°C)
8.00 3,01 5 3/4 4SA.B 142.93 1417,032 15,000 -20 to 350
(20,32) (7.65) X5-4ACME.B (363.05) (642 755) (6804) (-29 to 177)



8 Inch Super Safety Valve For Oil Well Drill Stem Testing Tools BOP Subsurface Safety Valve 8 Inch Super Safety Valve For Oil Well Drill Stem Testing Tools BOP Subsurface Safety Valve
