Oil & Gas Well Downhole Drill Stem Testing Tools String APR DST Tools String
Oil & Gas Well Downhole Drill Stem Testing Tools String APR DST Tools String
Oil & Gas Well Downhole Drill Stem Testing Tools String APR DST Tools String
Oil & Gas Well Downhole Drill Stem Testing Tools String APR DST Tools String
Specifications
Brand Name :
ZZ TOP OIL TOOLS
Model Number :
APR Tools
Certification :
ISO, API
Place of Origin :
China
MOQ :
1 set
Price :
USD 1-10000/set
Payment Terms :
L/C, T/T, D/P
Supply Ability :
10 set/month
Delivery Time :
30-50 days
Packaging Details :
Pollywood
Product :
Drill Stem Testing Tool String / DST Tool String
Material :
Alloy Steel / Inconnel
Size :
5inch
Working Pressure :
10000psi / 15000psi
Application :
Oil & Gas Well Dowhole Testing Service
Connection :
IF, EUE , CAS
Working Condition :
Oil & Gas & H2S service
Working Temperature :
Up to 425oF
Description

Oil & Gas Well Downhole Drill Stem Testing Tools String APR DST Tools String

The Drill Stem Testing Tools / DST tools manufactured by ZZ Top is full bore type and annular pressure operated, applicable for 4 1/2” to 20” casing, the tools OD is 3 7/8” and 5”, Working pressure upto 105Mpa, working temperature upto 425F.


As per NACE MR0175 standard, the materials ZZ Top used is AISI41XX Alloy steel with hardness in 30HRC in average but also consider the high working pressure to choose high hardness material used in Critical parts i.e. Nitrogen Case, for ball valve, the material is Inconel 718. And for strict working condition such as high H2S, CO2, Acid and HCL, we also suggest the material Inconnel or other high Nickel alloy steel.

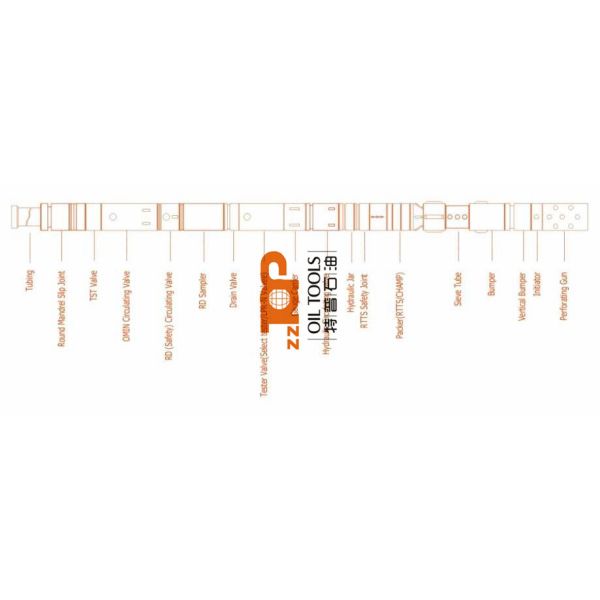

Specifcation of Drill Stem Testing tool String

Name Size Specification
RTTS Packer 4 1/2”-20” Casing 70Mpa, 400F
CHAMP IV Packer 7”-13 3/8” Casing 70Mpa,400F
Champ XHP Packer 7”-13 3/8” Casing 105Mpa, 400F
RTTS Circulating Valve 4 1/2”-20” Casing 70Mpa, 400F
IPO Circulating Valve 5” OD 105Mpa 400F
Hydraulic Circulating Valve 3 7/8” and 5” OD 105Mpa 400F
RD Safety Circulating Valve 3 7/8” and 5” OD 105Mpa, 400F
RD Circulating Valve 3 7/8” and 5” OD 105Mpa, 400F
OMNI Circulating Valve 3 7/8” and 5” OD 105Mpa, 400F
RTTS Safety Joint 4 1/2”-20” Casing 105Mpa, 400F
Round mandrel slip joint 3 7/8” and 5” OD 105Mpa, 400F
TST Valve 3 7/8” and 5” OD 105Mpa, 400F
RD Sampler 3 7/8” and 5” OD 105Mpa, 400F
Drain valve 3 7/8” and 5” OD 105Mpa, 400F
LPR-N Valve 3 7/8” and 5” OD 105Mpa, 400F
Select tester valve 3 7/8” and 5” OD 105Mpa, 400F
Hydraulic Jar 3 7/8” and 5” OD 105Mpa, 400F
Gauge Carrier Design as per Gauges 105Mpa, 400F
Radial shock absorber 7”Casing 105Mpa, 400F
Vertical Shock Absorber 5” OD 105Mpa, 400F
Super Safety Valve 8” OD 105Mpa, 400F
