15000psi High Pressure Retrievable CHAMP Packer For Drill Stem Testing Service
15000psi High Pressure Retrievable CHAMP Packer For Drill Stem Testing Service
15000psi High Pressure Retrievable CHAMP Packer For Drill Stem Testing Service
15000psi High Pressure Retrievable CHAMP Packer For Drill Stem Testing Service
Specifications
Brand Name :
ZZ TOP OIL TOOLS
Model Number :
7" Retrievable Packer
Certification :
ISO, API
Place of Origin :
China
MOQ :
1 set
Price :
USD 1-10000/set
Payment Terms :
L/C, T/T, D/P
Supply Ability :
10 set/month
Delivery Time :
30-50 days
Packaging Details :
Pollywood
Product :
CHAMP Packer
Material :
Alloy Steel / Inconnel
Size :
7 inch
Working Pressure :
15000psi
Application :
Drill Stem Testing
Connection :
IF, EUE , CAS
Working Condition :
Oil & Gas & H2S service
Working Temperature :
Up to 425oF
Description

High Pressure Retrievable Packer CHAMP Packer For Drill Stem Testing Service

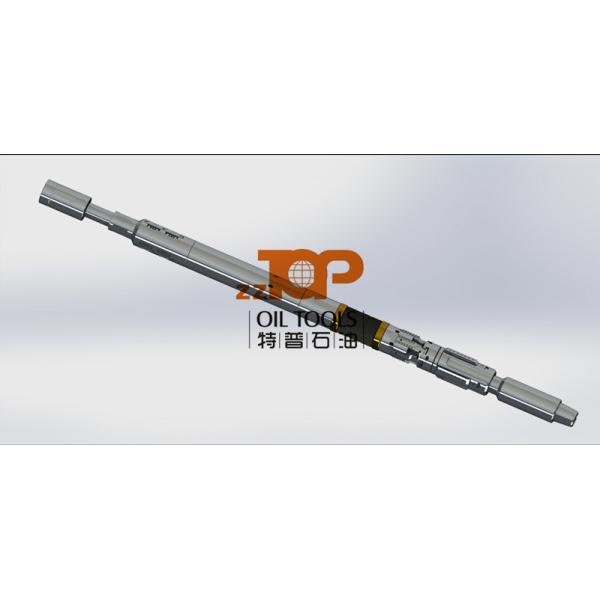

The CHAMP Packer is a hook-wall type retrievable packer with concentric by pass which is used for drill stem testing operation. When the CHAMP Packing is going in the hole, the bypass of packer is held open until the slips are set by the J-slot that controls the mechanical slips.

The CHAMP packer is also well suited to tubing conveyed perforating applications where the firing head assembly is easily incorporated into the CHAMP packer. The CHAMP packer is ideally suited for horizontal applications due to its limited rotational requirements and integrated bypass.


Each CHAMP PACKER consist of following components:
• J-slot mechanism
• Mechanical slips
• Packer elements
• Hydraulic slips
• Bypass

Technical parameter

Max. Working Pressure: 15000PSI Max.
Working Temperature: 400F
Packer Element: NBR/ HNBR/VITON
Thread Connection: IF, EUE, PH6,VAM Top H2S As per NACE MR0175(Above 175F)

Specifcation of CHAMP Packer

Size(in) Casing Range(lb/ft) W.P W.T Connection Service
4 1/2
5
5 1/2
6 5/8		 9.5-13.5 15000psi 400F 2 3/8” EUE NACE MR0175
15.1-18.1
18-21.4 2 7/8” EUE
11.5-15
13-20 2 7/8” EUE
20-23
28-32 3 1/2” EUE/IF
7 17-26 3 1/2” EUE/IF
29-35
38
7 5/8 20-39 3 1/2”EUE/IF
9 5/8 29.3-40 4 1/2” IF
43.5-58.4
59.4-71.8
