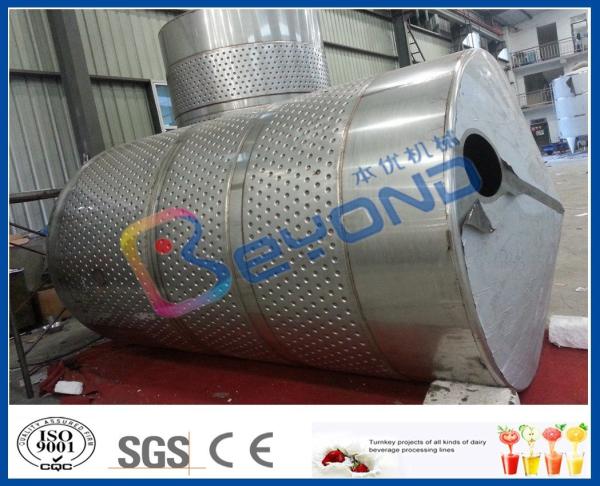

Insulation Coil Type Miller Jacket Stainless Steel Tanks Energy Saving SGS / CE / ISO9001
Insulation Coil Type Miller Jacket Stainless Steel Tanks Energy Saving SGS / CE / ISO9001
Insulation Coil Type Miller Jacket Stainless Steel Tanks Energy Saving SGS / CE / ISO9001
Insulation Coil Type Miller Jacket Stainless Steel Tanks Energy Saving SGS / CE / ISO9001
Insulation Coil Type Miller Jacket Stainless Steel Tanks Energy Saving SGS / CE / ISO9001
Insulation Coil Type Miller Jacket Stainless Steel Tanks Energy Saving SGS / CE / ISO9001
Insulation Coil Type Miller Jacket Stainless Steel Tanks Energy Saving SGS / CE / ISO9001
Insulation Coil Type Miller Jacket Stainless Steel Tanks Energy Saving SGS / CE / ISO9001
Specifications
Brand Name :
Shanghai Beyond
Model Number :
BY-JT
Certification :
SGS/CE/ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
negotiation
Supply Ability :
50 pcs per month
Delivery Time :
35-50 working days upon receipt of payment and confirmed the drawings
Packaging Details :
export standard package
product name :
jacket tank
material :
SUS304/SUS316L
capacity :
customized
Voltage :
according to customer local voltage
powder consumption :
energy saving type
warranty :
12 months/1 year
Seat port :
Shanghai
Description

jacket tank insulation tank coil type jacket tank miller jacket tank

Usage:

The jacket in tank can be made with dimple pad or hollow jacket or coiled pipes, which can heat or cool the product;

Special design of flow path ensures the cooling or heating medium distribute much well in the jacket, so the heat exchange efficiency is high.

Application : Widely used for preparing(heating), sterilizing, fermentation, aging, blending, cream storage etc.

Technical parameter

Model Diameter External diameter

Height

(mm)

 Insulation(mm)

Jacket

(δ)

 Diameter of inlet/outlet
BYDG-500 φ500 800 2140 50 1.5 φ38
BYDG-1 φ1000 1050 2380 50 1.5 φ38
BYDG-1.5 φ1500 1180 2550 50 1.5 φ38
BYDG-2 φ2000 1340 2760 50 1.5 φ38
BYDG-2.5 φ2500 1420 2940 50 1.5 φ38
BYDG-3 φ3000 1540 3050 50 1.5 φ38
BYDG-4 φ4000 1650 3200 50 1.5 φ38
BYDG-5 φ5000 1780 3250 50 1.5 φ38
BYDG-6 φ6000 1900 3350 50 1.5 φ38
BYDG-8 φ8000 2100 3800 60 1.5 φ65
BYDG-10 φ10000 2300 4050 60 1.5 φ65
BYDG-12 φ12000 2520 4450 60 1.5 φ65
BYDG-15 φ15000 2540 4700 60 1.5 φ65
