Specifications
Brand Name :
Beyond
Model Number :
1-10TPH
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
50 work days
Packaging Details :
Container Lading;Wooden Package and Frameworks;PE Film Wraps
Raw material :
Fruit, Vegetables, Garlic/Pepper/Celery/Pumpkin
Applicable Industries :
: Manufacturing Plant, Food & Beverage Factory, Food Shop, Food&Beverage shops
Power(W) :
≤30KW
Warranty :
1 Year
After-sales Service :
Field installation, commissioning and training
Application fields :
Fruit processing plant, Vegetable processing plant, Beverage Factory
ory Machinery Function :
Crushing Machine
Output product name :
Fruit and Vegetables Mince
Application :
Fruit and Root Vegetables
Material :
SUS304/316L
Capacity :
1-10TPH
Particle size :
100mesh
Condition :
New
Description

10T/H Fruit and Vegetables Multi-function Crusher

Industrial Fruit And Vegetable Crusher High Crushing Efficiency Energy Saving

• Equipment Description:

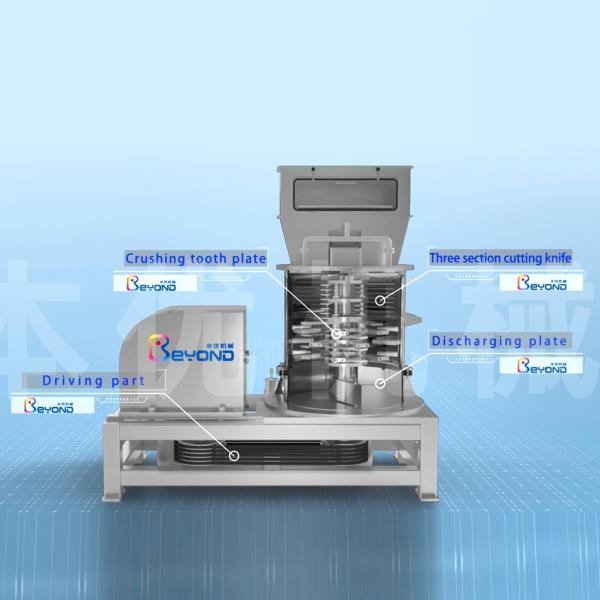

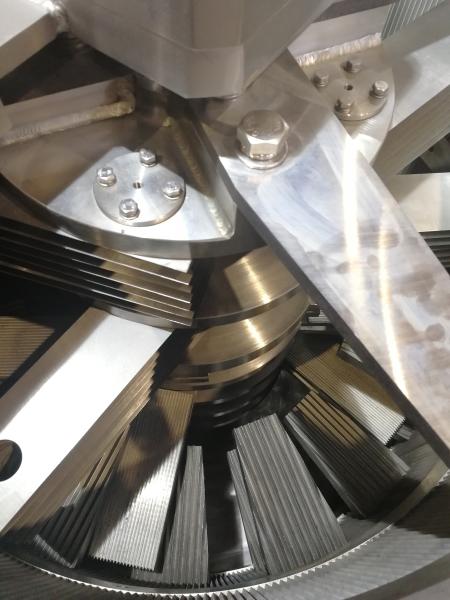

The raw material vertically falls into the high-speed rotating impeller from the upper part of the machine. Driven by high-speed centrifugal force, materials are regularly hinged in the cutter, swift knife and grinding plate clamping chamber on the rotary table. When the turntable rotates, the cutter will cut the materials inside the machine into pieces, the swift knife will cut the sections into fine particles, and the grinding plate will grind them into slurry. The crushed materials are discharged straight through the bottom part, forming a closed circuit and circularly discharged for many times. The machine is mainly composed of frame, cutter, throwing knife, grinding plate, coupling, bearing, motor, drive shaft and other components. The frame is a fully closed frame structure welded from stainless steel thick plates and other profiles, having an excellent safety protection performance.

• Application Scope:

Suitable for fruit and vegetables crushing such as stone fruit (mango, peach, apricot, jujube etc.),berry (kiwi, strawberry etc.), kernel fruit (apple, pear, pumpkin etc.) and also fiber vegetables (green vegetable, celery, pepper, etc.).
Industrial Fruit And Vegetable Crusher High Crushing Efficiency Energy Saving
• Equipment Features:

1. High crushing efficiency, energy saving, minor impacts by product status, high crushing ratio, high output capacity, 1.5 times higher than similar domestic
products;

2. Wearing parts use high hardness, high toughness and multi-alloy wear-resistant materials, the service life extended by 2-3 times;

3, The Cutter, throwing knife, grinding plate are easy and convenient to replace, can meet a variety of products crushing.

Industrial Fruit And Vegetable Crusher High Crushing Efficiency Energy Saving
