200kg/H Dairy Processing Plant Sphere Concentrating Tank For Pharmacy / Juice
200kg/H Dairy Processing Plant Sphere Concentrating Tank For Pharmacy / Juice
200kg/H Dairy Processing Plant Sphere Concentrating Tank For Pharmacy / Juice
200kg/H Dairy Processing Plant Sphere Concentrating Tank For Pharmacy / Juice
200kg/H Dairy Processing Plant Sphere Concentrating Tank For Pharmacy / Juice
200kg/H Dairy Processing Plant Sphere Concentrating Tank For Pharmacy / Juice
Specifications
Brand Name :
Beyond
Model Number :
80-410kg/h
Certification :
ISO9001
Place of Origin :
Shanghai,China
MOQ :
1 set
Price :
$5000/set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets /year
Delivery Time :
50 work days
Packaging Details :
Standard Export Package, Wood Crates Package
Material :
SUS304/316L Both Available
Production standard :
GMP conformity
Condensing rate :
1.35-1.45
Condition :
New
certification :
ISO9001
Description

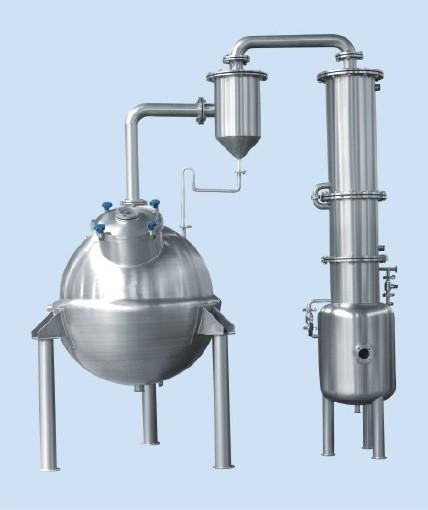

Equipment name:Sphere Concentrating Tank for Pharmacy/Juice/Candy

• Scope of application:
The equipment is applied for the solution function such as vacuum concentration,crystallization,paste collection,distillation,alcohol recycling etc;in the industries such as Chinese medicine,western medicine,foodstuff,dextrose,juice,candy,pharmaceutical,chemical industry and so on.The condensing rate could reach 1.35~1.45.

• Equipment description:

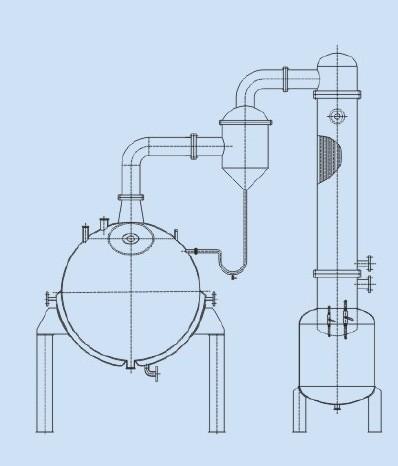

The machinery is composed of four important parts including main body of condensing boiler,gas liquid separator,cooler and water tank.All material are supported by SUS304 to make sure meeting GMP standards during the production.Beause of decompression condense mode applied in the equipment so the condensing time is shortened and the available compositions of thermal zensitive materials also shall not be damaged

• Technical parameters:

Specification QN-250 QN-500 QN-700 QN-1000 QN-1500 QN-2000
Evaporation Capacity(kg/h) 80 110 150 200 280 410
Nominal Capacity (L) 250 500 700 1000 1500 2000
Interlayer Pressure (Mpa)
Vacuum degree (Mpa)
Heating Area (m2) 1.0 1.5 2.7 3.1 4.0 5.0
Condensate Area(m2) 3.0 4.0 5.0 8.0 12.5 18.0
Weight of equipment (kg) 415 625 760 950 1700 1900
External dimension (mm) 1000*1000*2300 2100*1200*2500 2200*1400*2500 2000*1500*2700 3000*1600*4600 3600*1900*4000
