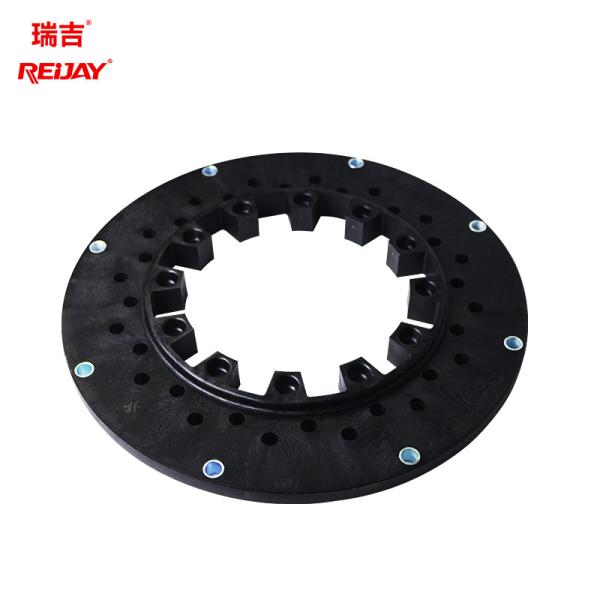

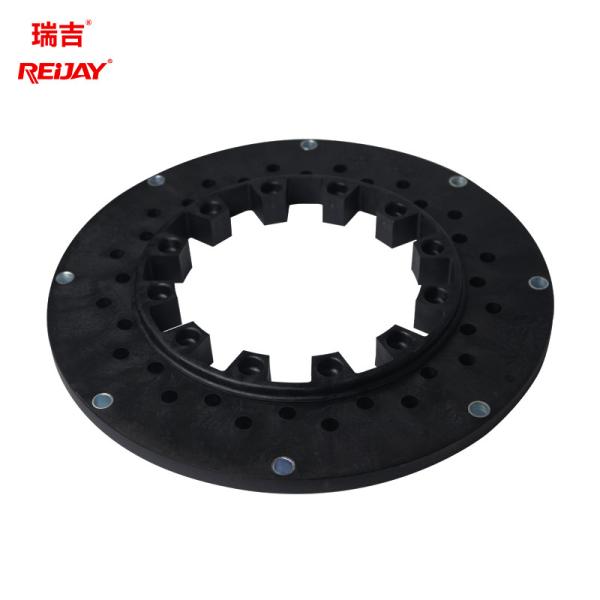

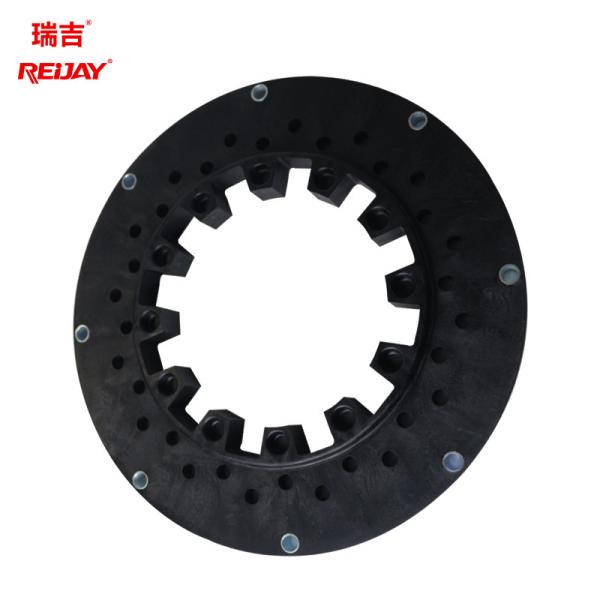

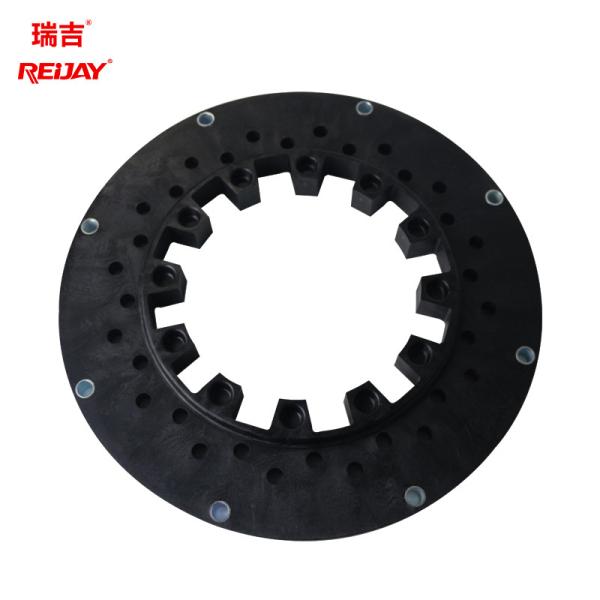

Rubber Steel Flywheel Coupler Corrosion Resistance For Hydraulic Transmission System
Rubber Steel Flywheel Coupler Corrosion Resistance For Hydraulic Transmission System
Rubber Steel Flywheel Coupler Corrosion Resistance For Hydraulic Transmission System
Rubber Steel Flywheel Coupler Corrosion Resistance For Hydraulic Transmission System
Rubber Steel Flywheel Coupler Corrosion Resistance For Hydraulic Transmission System
Rubber Steel Flywheel Coupler Corrosion Resistance For Hydraulic Transmission System
Rubber Steel Flywheel Coupler Corrosion Resistance For Hydraulic Transmission System
Rubber Steel Flywheel Coupler Corrosion Resistance For Hydraulic Transmission System
Specifications
Brand Name :
REIJAY
Model Number :
RB
Certification :
ISO9001/ ITS16949
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 sets/ month
Delivery Time :
Negotiable
Packaging Details :
Available upon request
Key Words :
Hydraulic Transmission System
Model :
RB
Application :
Construction Machinery Engine
Warranty :
2 years
Product Name :
Sae Flywheel Coupling
Installation :
Video Guide
Material :
Rubber and Steel
Feature :
Maintenance-free
Description

High thermal stability and corrosion resistance Sae Flywheel Coupling for hydraulic transmission system

Sae Flywheel Coupling is used for flexible transmission and has strong correction ability in axial, radial and angular directions. The material cooperation of the steel bushing and the nylon flange ensures that the friction between the contact surfaces of the teeth is very small in continuous transmission, and no maintenance is required.

Sae Flywheel Coupling's nylon composite (crystal structure) has a smooth, hard exterior, high thermal stability, and is corrosion-resistant by lubricants, fuels, hydraulic oils, solvents, etc. It is an ideal material for the production of couplings. Metal parts will wear each other when they move against each other without lubrication, while smooth nylon and steel will not wear without lubrication and maintenance.

Technical Specifications

Size Bolt Mounting Center Circle D1 (mm) Outer Diameter D (mm) Bolt Hole Diameter Quantity (mm) Location Dimension
96 50 96 4x8 70
125 100 125 3x8 80
135 100 135 3x8 135
150 130 150 5x8 106
152 122 152 3x12 105
155 125 155 3x12 155
210 185 210 3x10 125
220 165 220 6x10 220
220 185 220 3x12 125
170 140 170 3x14 170
209 165/170 209 6x16/3x16 209
RB series FL Flywheel Coupling
Size Prebore (mm) Dimension (mm)
min. max. B D2 L1 L2 L3 L4 L5
42 20 42 65 100 42 35 42 20 13
48 20 48 68 100 50 43 50 20 13
65 25 65 96 132 55 49 55 27 21
65 25 65 96 172 55 46 55 31 22
80 30 80 124 172 55 46 55 30 21
100 38 100 152 265 70 78 70 35 21

Our Strategic Partners

Rubber Steel Flywheel Coupler Corrosion Resistance For Hydraulic Transmission System

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.

FAQ

Q: Who are we?

We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.

Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment

Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters

Q: What can you buy from us?

Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.

Q: Why should you buy from us, not from other suppliers?

We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.

Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.

Q: What are your terms of payment?
Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.

Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

Accepted Payment Currency: USD, EUR, HKD, CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

Language Spoken: English, Chinese, Spanish
