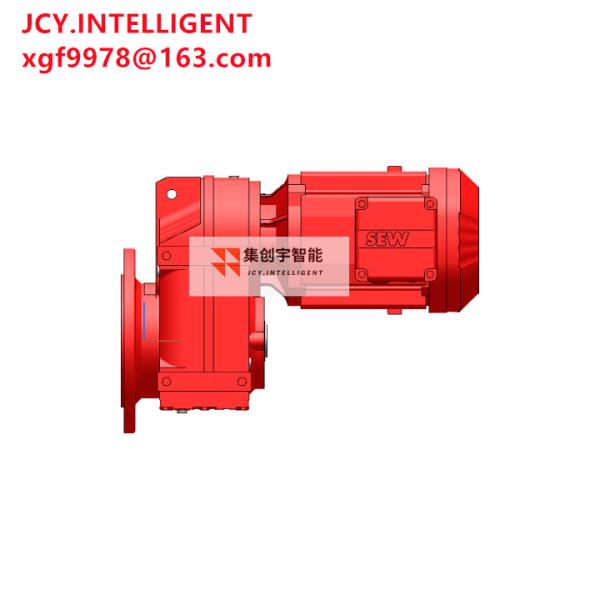

OEM Reduction Drive Parallel Shaft Gear Motor 2.2KW 35.79 515NM
OEM Reduction Drive Parallel Shaft Gear Motor 2.2KW 35.79 515NM
OEM Reduction Drive Parallel Shaft Gear Motor 2.2KW 35.79 515NM
OEM Reduction Drive Parallel Shaft Gear Motor 2.2KW 35.79 515NM
OEM Reduction Drive Parallel Shaft Gear Motor 2.2KW 35.79 515NM
OEM Reduction Drive Parallel Shaft Gear Motor 2.2KW 35.79 515NM
Specifications
Brand Name :
SEW
Model Number :
FAF57DRN100LS4
Certification :
CE/3C
Place of Origin :
CHINA
MOQ :
1
Price :
Discussed
Payment Terms :
T/T, Western Union
Supply Ability :
1000000 pieces/year
Delivery Time :
3-5 WORK DAYS
Packaging Details :
Standard wooden packing
Motor power [kW :
9
Overall gear ratio :
35.79
Output speed [1/min :
9
Flange :
250mm
Description

▶▶▶Description:

Parallel-shaft gearmotors
The parallel-shaft gearmotors of the series F..DR.. are perfect for all your design-related applications where you rely on space-saving components. They provide optimum installation conditions thanks to their slim design.


F series Parallel-shaft gearmotors
✪●✪
Product size&Technical data
Gear unit size F27 F37 F47 F57 F67 F77
Motor Power(KW) 0.12-3 0.12-3 0.12-3 0.12-7.5 0.12-7.5 0.12-15
gear ratio range 4.16-140.74 3.77-128.51 4.99-190.76 5.18-199.70 3.97-228.99 4.28-130.42
Mamax Gear unit(Nm) 130 200 400 600 820 1500
　 　 　 　 　 　 　
Gear unit size F87 F97 F107 F127 F157 　
Motor Power(KW) 0.25-30 0.75-37 2.2-55 5.5-90 9.2-200 　
gear ratio range 4.12-270.68 3.87-102.16 5.03-254.4 4.66-170.83 11.92-267.43 　
Mamax Gear unit(Nm) 3000 4300 7840 12000 20000 　


Catalog designation FAF57DRN100LS4BE5HF/TF
Product Parallel-shaft helical gearmotors F..DRN.. (IE3)
Rated motor speed [1/min] 1450
Output speed [1/min] 32
Overall gear ratio 35.79
Output torque [Nm] 515
Service factor SEW-FB 1.15
Mounting position M1
Base / top coat 7031 Blue gray (51370310)
Position of connector/terminal box [°] 0
Cable entry/connector position X
Hollow shaft [mm] 40
Design type B5 flange-mounted design with hollow shaft
Permitted output overhung load with n=1400 [N] 6440
Lubricant quantity 1st gear unit [Liter] 2.3
Flange diameter [mm] 250
Flange 250
Motor power [kW] 2.2
Duration factor S1-100%
Efficiency class GR3
Efficiency (50/75/100% Pn) [%] 86.4 / 87.5 / 86.9
Motor voltage [V] 230/400
Wiring diagram R13
Frequency [Hz] 50
Rated current [A] 8.3 / 4.75
Cos Phi 0.76
Thermal class 155(F)
Motor protection type IP55


OEM Reduction Drive Parallel Shaft Gear Motor 2.2KW 35.79 515NM
▶▶▶Features

Parallel-shaft helical gear units
•Slim design for limited installation space
•Also available with reduced backlash
•Available variants:
•Foot- or flange-mounted
•B5 or B14 flange-mounted
•Solid or hollow shaft
•Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®

▶▶▶ SEW reducer F series Parallel-shaft gearmotors

Simple, slim shape, hollow or solid shaft, flange, footing or torque arm mounting
Transmission efficiency up to 98%, low vibration, low noise
out speed (rpm): 0.1rpm - 752 rpm
Torque range(Nm)/Power range(KW): 130Nm - 18,000 Nm/ 0.12KW - 200 kW





OEM Reduction Drive Parallel Shaft Gear Motor 2.2KW 35.79 515NM
▶▶▶FAQ

Q: Can you print other colors?
A:Yes. Customized color can be printed on the gear motor according to your requirements.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
