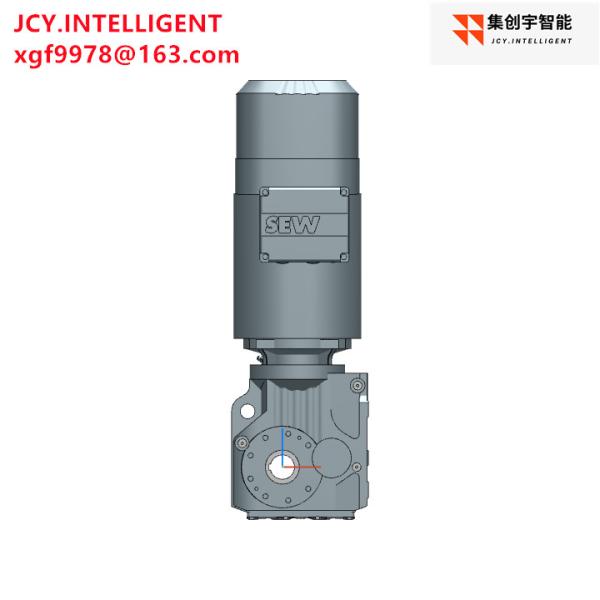

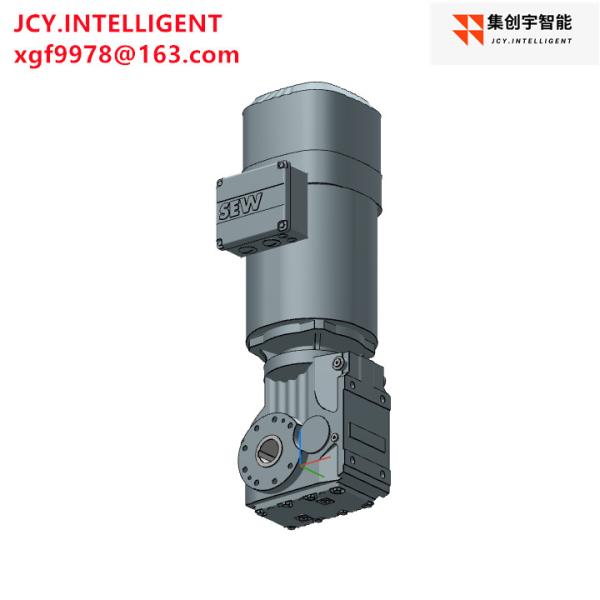

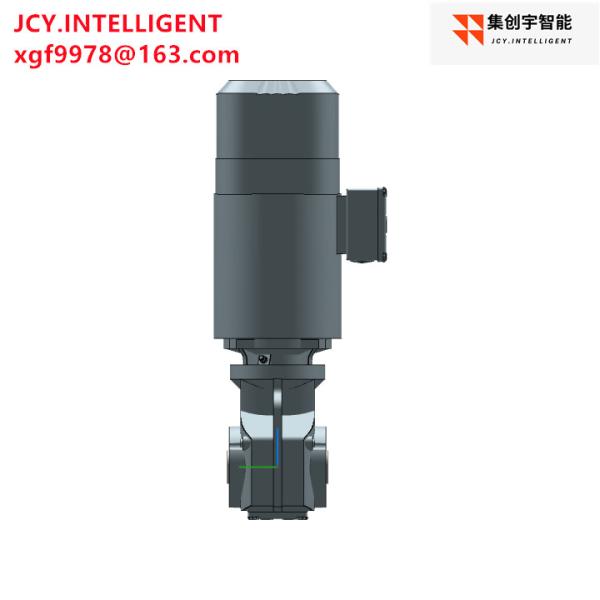

3HP Helical Inline Bevel Heavy Duty Gear Motor 9.2KW KA77 DRN132L4/BE20 8.48
3HP Helical Inline Bevel Heavy Duty Gear Motor 9.2KW KA77 DRN132L4/BE20 8.48
3HP Helical Inline Bevel Heavy Duty Gear Motor 9.2KW KA77 DRN132L4/BE20 8.48
3HP Helical Inline Bevel Heavy Duty Gear Motor 9.2KW KA77 DRN132L4/BE20 8.48
3HP Helical Inline Bevel Heavy Duty Gear Motor 9.2KW KA77 DRN132L4/BE20 8.48
3HP Helical Inline Bevel Heavy Duty Gear Motor 9.2KW KA77 DRN132L4/BE20 8.48
Specifications
Brand Name :
SEW
Model Number :
KA77 DRN132L4/BE20
Certification :
CE/3C
Place of Origin :
CHINA
MOQ :
1
Price :
Discussed
Payment Terms :
T/T, Western Union
Supply Ability :
1000000 pieces/year
Delivery Time :
3-5 WORK DAYS
Packaging Details :
Standard wooden packing
Motor power [kW :
9.2
Catalog designation :
KA77 DRN132L4/BE20
Overall gear ratio :
8.48
Rated motor speed [1/min :
1470
Motor frequency [Hz :
9
Mounting position :
M4AB
Description

▶▶▶Description:

Helical-bevel gearmotors

Helical-bevel gearmotors: low-maintenance and high efficiency

K series Helical-bevel gearmotors
✪●✪
Product size&Technical data
Gear unit size K37 K47 K57 K67 K77 K87
Motor Power(KW) 0.12-3 0.12-3 0.12-7.5 0.12-7.5 0.12-15 0.25-30
gear ratio range 3.98-106.38 4.64-131.87 4.69-145.14 5.2-144.79 7.24-192.18 7.21-197.37
Mamax Gear unit(Nm) 200 400 600 820 1550 2700
　 　 　 　 　 　 　
Gear unit size K97 K107 K127 K157 K167 K187
Motor Power(KW) 0.75-37 2.2-45 5.5-90 9.2-200 9.2-200 9.2-200
gear ratio range 7.54-176.05 7.35-143.47 8.68-146.07 12.65-150.41 17.34-164.50 17.18-179.86
Mamax Gear unit(Nm) 4300 8000 13000 20000 35000 53000
　 　 　 　 　 　 　
Gear unit size K19 K29 K39 K49 　 　
Motor Power(KW) 0.12 - 1.1 0.12 - 2.2 0.12 - 4 0.12 - 7.5 　 　
gear ratio range 4.5 - 58.68 3.19 - 71.93 2.81 - 58.24 4.00 - 75.20 　 　
Mamax Gear unit(Nm) 80 130 300 500 　 　

3HP Helical Inline Bevel Heavy Duty Gear Motor 9.2KW KA77 DRN132L4/BE20 8.48

▶▶▶Features

☆Helical-bevel gear units (two and three stages)
•High efficiency
•Gearing with high fatigue strength
•Long, maintenance-free service life
•Can be combined with our complete motor portfolio
☆Sizes K..37 to K..187 (three stages)
•Double gear units for very low output speeds also available
•Reduced backlash variant
•Available variants:
•Foot- or flange-mounted
•B5 or B14 flange-mounted
•Solid or hollow shaft
•Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®

Catalog designation KA77 DRN132L4/BE20
Product Bevel-helical gearmotors K..DRN.. (IE3)
Product data 　
Speed 50Hz [r/min] 1470 / 173
Total ratio [i] 8,48
Ma max [Nm] 890
Output torque 50Hz [Nm] 505
Service factor SEW-FB 1,75
Mounting position M4AB
ISO code CLP 220
Lubricant type Miner.Oil
Lubricant volume [l] 5,90
Motor power [kW] 9.2
Motor frequency [Hz] 50
Cyclic duration factor S1-S10 S1
Voltage range [V] 380-400 delta/660-690 star
Nominal current [A] 19,20 / 11,20
cos phi 0,77
Thermal cl.[°C]/Enclosure[IP] 155(F) / 55
International efficiency class IE3
Efficiency (100% Pn) [%] 91,0
Design specification IEC 60034
K.V.A.code K
China Efficiency Class Grade 3
Ambient temperature min. [°C] -20
Ambient temperature max. [°C] 40
Brake voltage [V]/-torque [Nm] 400 AC / 150
Brake voltage range [V] 380-460 AC
Brake rectifier nameplate BGE1.5
Nameplate English
Weight 154.00 kg

▶▶▶ SEW K series Helical-bevel gearmotors

Three-stage bevel gear - bevel gear with high output torque, hollow or solid shaft, flange, footing or torque arm mounting

Transmission efficiency up to 98%, small size, light weight, low vibration, low noise

out speed (rpm): 0.1rpm - 522 rpm

Torque range(Nm)/Power range(KW): 200Nm - 50,000 Nm/ 0.12KW - 200 kW

SIZE:K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187

KS37,KS47,KS57,KS67,KS77,KS87,KS97,KS107,KS127,KS157,KS167,KS187

KA37,KA47,KA57,KA67,KA77,KA87,KA97,KA107,KA127KA157,KA167,KA187

KF37,KF47,KF57,KF67,KF77,KF87,KF97,KF107,KF127,KF157,KF167,KF187

3HP Helical Inline Bevel Heavy Duty Gear Motor 9.2KW KA77 DRN132L4/BE20 8.48

▶▶▶FAQ

Q:How to choose a gearbox which meets your requirement?
A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

Q: What information shall we give before placing a purchase order?
A:a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
