DJI FlyCart 30 120m high Building cleaning Tethered drone system
DJI FlyCart 30 120m high Building cleaning Tethered drone system
Specifications
Brand Name :
MYUAV
Model Number :
FC30X
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Description

1. Brief introduction

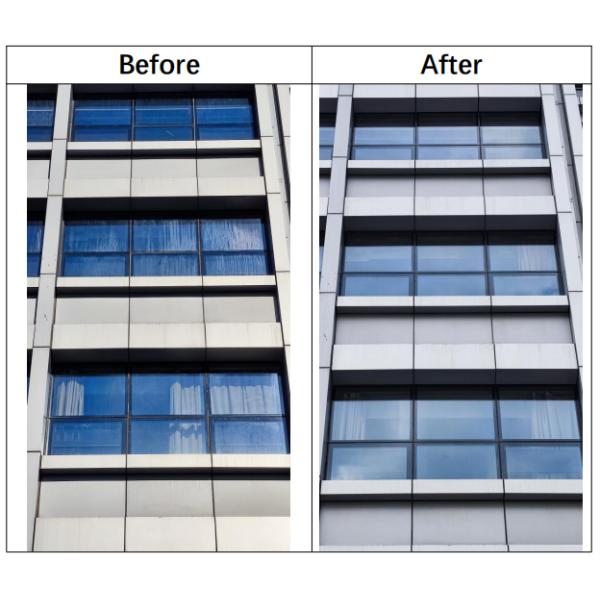

  • 120m high building cleaning
  • 250bar high-pressure cleaning power
  • Ground tethered system power supply for 8-10 hours continuous working time
  • 500~900L/ hour ground water supply
  • Battery as backup for safety
  • IP68 waterproof power supply
  • Max.20 ㎡/min cleaning efficiency

2. System configuration

1. FlyCart 30 DJI drone
2. Electrical Wash/spray payload system
3. FC30X Onboard Power Supply together with Tethered Base Station
4. Ground pump by customers
5. Min.200L Water tank and 380V min.20kw power by customers

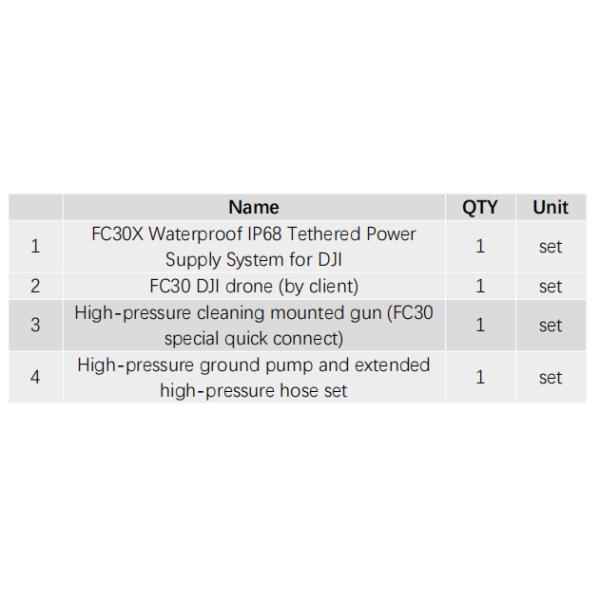

3. System components

DJI FlyCart 30 120m high Building cleaning Tethered drone system

  • Supporting requirements:

1. Tap water supply and tap water take-over length of about 30m (subject to the actual situation)200L~500L water tank (customer local procurement), 2 sets (one set to put fresh water, one set to put detergent mixture)

2. 4-core 6-square power supply cable of about 40-50 meters (subject to the actual situation), access to AC380V ~ 20kw power supply / 20kw rated power generator
3. Customized cleaning detergent (consumables) for all kinds of materials, water softener
  • Personnel requirements:
CAAC grade 4 licence pilots (change of pilots every half hour), 2 persons.

4. Detailed parameters

  • DJI Drone
DJI FlyCart 30 is a civil large payload UAV that combines large payload, long range, strong signals and high intelligence. FlyCart 30 can provide stable and reliable solutions for various application scenarios.
It is equipped with front and rear active phased array radar and binocular vision system, which can realise multi-directional, all-weather and all-time intelligent obstacle avoidance during flight.
The UAV comes standard with a built-in parachute to ensure flight safety.
Equipped with a compact folding storage design to meet the needs of ordinary vehicle transit.

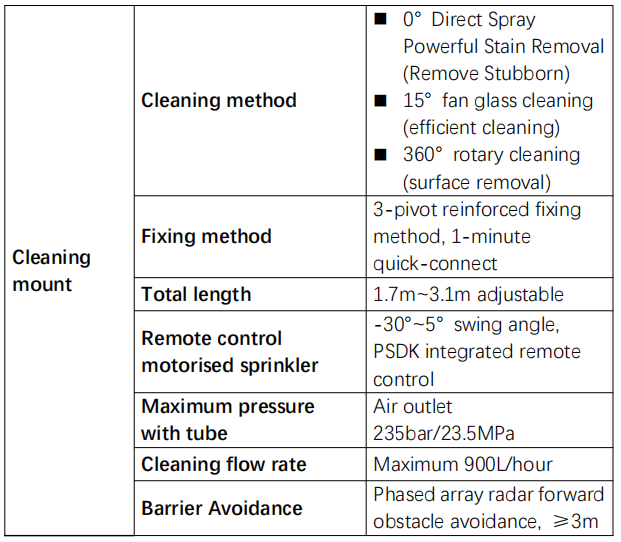

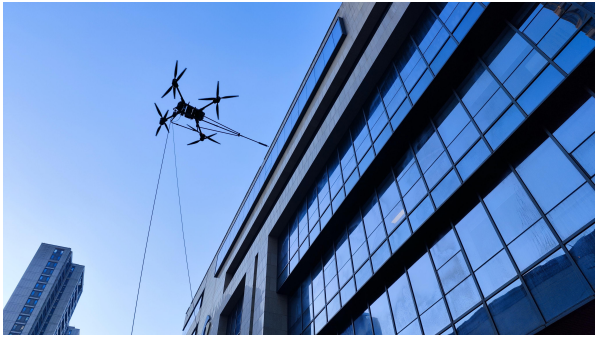

  • Highpressure wash gun payload system

DJI FlyCart 30 120m high Building cleaning Tethered drone system

DJI FlyCart 30 120m high Building cleaning Tethered drone system

DJI FlyCart 30 120m high Building cleaning Tethered drone system

DJI FlyCart 30 120m high Building cleaning Tethered drone system

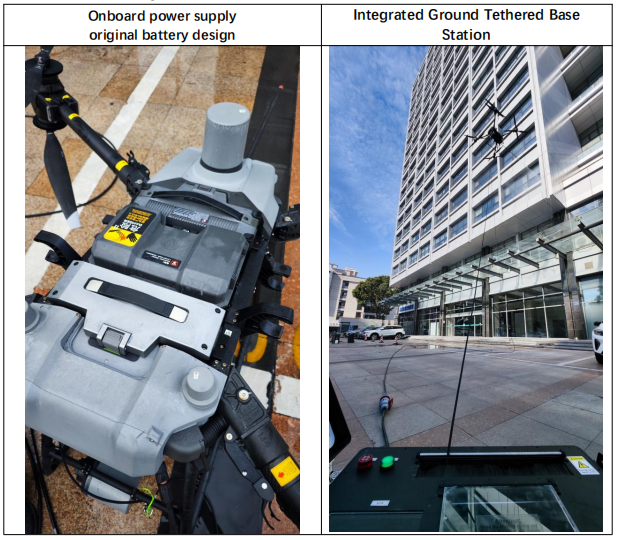

  • Tethered system

DJI FlyCart 30 120m high Building cleaning Tethered drone system

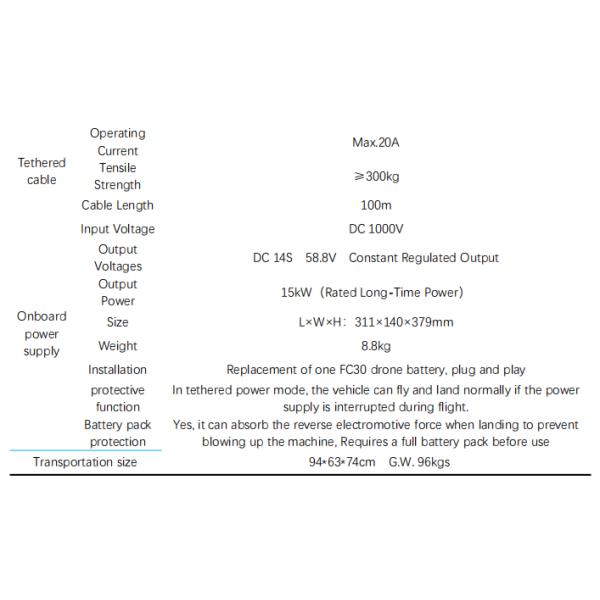

Performance indicators

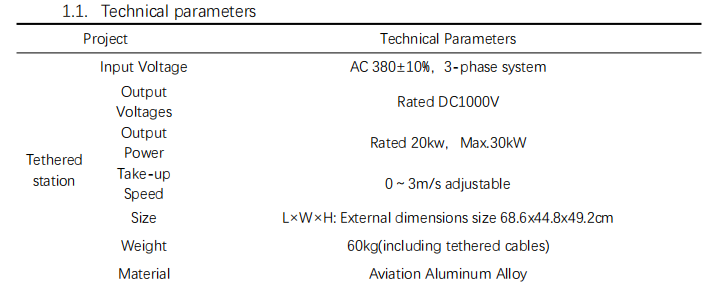

1.1. Technical parameters
DJI FlyCart 30 120m high Building cleaning Tethered drone system
DJI FlyCart 30 120m high Building cleaning Tethered drone system

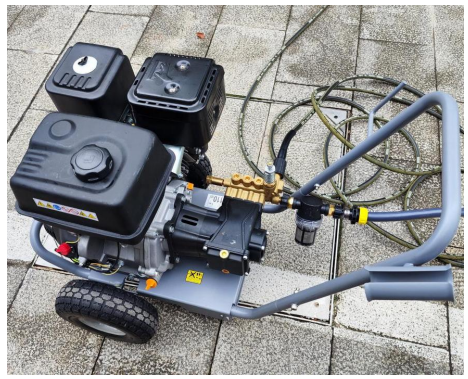

  • High-pressure washer (options)
  1. Karcher HD 9/25G Classic with extension tube

DJI FlyCart 30 120m high Building cleaning Tethered drone system

Max pressure (bar) 300
Working pressure (bar) 250
Water flow (L/h) 900
Maximum inlet temperature (Celsius) 60
Size (mm) 875*538*702
Net weight (kg) 50
Connection load (kW) 8.5
Oil tank (L) 6.5

2.Karcher 380VAC, 6500W, 240bar, 15L/minute

DJI FlyCart 30 120m high Building cleaning Tethered drone system

3.Karcher 380VAC, 9000W, 230bar, 17L/minute

DJI FlyCart 30 120m high Building cleaning Tethered drone system

5. Equipment operation process

1. Check if the equipment is complete: check if the drone body,cleaning device, control system and guards are intact.
2. Install the cleaning device: Install the cleaning quick-connect device on the bracket below the drone, and make sure it is firmly connected. Connect the tethered power supply connector and make sure the cable is fixed on the bracket underneath the UAV.
3. Connect the tethered power supply: Switch on the drone, connect the remote control, switch on the tethered power supply and take off the drone.

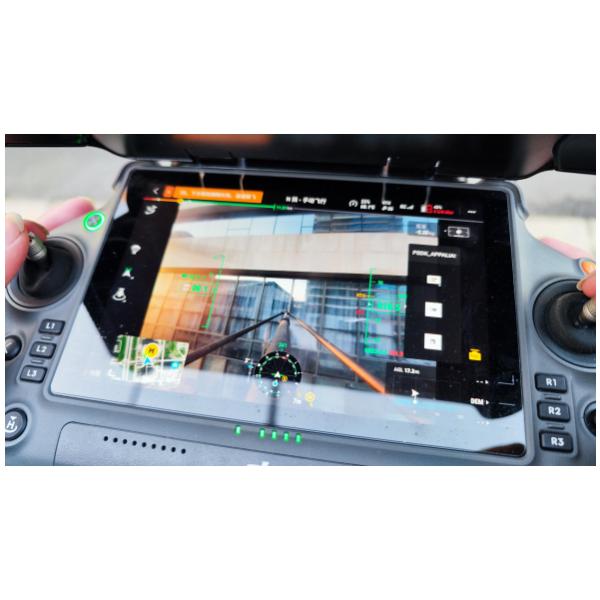

4. Control the UAV flight: Turn on the front radar obstacle avoidance and set the locking distance to 3m, turn off the lower obstacle avoidance. Use the remote control to control the drone flight, adjust the flight height, speed and direction as needed.
5. Start cleaning: After determining the cleaning object, use the corresponding cleaning nozzle, turn on the cleaning pump, and use the drone to clean the target.
6. The first time the curtain wall should be sprayed with cleaner to ensure even coverage. After a certain interval of time, flush the curtain wall with water to form a hanging film on the surface of the glass curtain wall with the best effect.

6. Precautions for equipment operation

Daily operation:
Before operation, be sure to understand the functions and operation methods of the equipment.
During operation, the stability and safety of the drone should be maintained.
During the cleaning process, the cleaning system should be selected according to the surface material and the degree of dirt.
At the end of the operation, the power should be turned off in time and the equipment should be well maintained.
Special operation:
When encountering special circumstances, emergency braking or manual control of the UAV to return to the flight can be taken.
When encountering equipment failure, you should stop the machine in time to check and contact professional personnel for maintenance.

7. Equipment maintenance
Daily maintenance: after each use, the main body of the drone and the cleaning device should be cleaned to keep the equipment clean
and tidy. At the same time, check whether there is any damage or looseness of the parts and deal with them in time.
Regular Maintenance: It is recommended to carry out a comprehensive equipment inspection and maintenance once a month, including replacing worn parts and cleaning the internal circuit boards.
8. Principles of use
1. When in use, the power supply should be well ventilated and heat dissipated; the air passage of the module unit should not be
obstructed;
2. The power supply should be used under the environmental conditions specified in the specification;
3. The potentiometers in the power supply shall not be adjusted arbitrarily;
4. It shall not be operated under volatile gas or flammable environment;
5. Do not remove the cover or touch the internal parts under any circumstances;
6. For safety reasons, do not carry out internal warranty and parts replacement alone;
7. The power supply must be safely insulated when in use, either side of which must have a safety distance of more than 8mm from the
outside metal shell; if it is less than 8mm, need to be padded with more than 1mm thickness of PVC sheet to strengthen the insulation;
8. In the process of switching on or using, smoke or unpleasant odour is found, the power supply should be switched off immediately.
9. Warranty period
The warranty period of this product is 1 year. During the warrantyperiod, any natural damage under normal use will be repaired by the
Company free of charge;
However, if any of the following circumstances, it is not included inthe warranty:
① Unauthorised repair and damage without the permission of the Company;
② Arbitrary addition or modification;
③Improper operation or use;
④ Damage caused by abnormal environmental conditions exceeding specifications;
⑤ Deliberate human damage;
⑥ Damage caused by irresistible natural disasters.
10. Scope of maintenance
If this equipment fails to operate normally during the warranty period due to errors in materials and manufacturing techniques, our
company will provide free maintenance or replacement. The maintenance service will cover all kinds of labor services as well as any necessary adjustments or replacement of parts.
11. Restrictive covenants
1. If you send back the product, can not be consistent with the factory product packaging and damaged in transit, the same will not be
warranted.
2. We are not responsible for any of the following:
① Damage caused by fire, earthquake, riot, war, terrorist attack, acts of third parties and other matters;
② Damage caused by the customer's intention or negligence, misuse, or use under other abnormal conditions;
③ For incidental damages arising from the action or use of this product [interruption of business, loss of business benefits (including
loss of use of instruments, costs incurred for replacement of any equipment, device or service, or claims by your customer)];
④ For damages arising from the application of a method of use other than the contents of these instructions;
⑤ Under any circumstances, such as operation, cleaning or warranty, please make sure to observe the safety code stipulated in item 7; if
any violation of the code results in safety concerns beyond those of the original design and manufacture, we will not be responsible.
