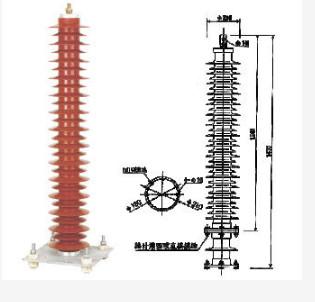

Metal Oxide High Voltage Lightning Arrester Air Termination Support
Metal Oxide High Voltage Lightning Arrester Air Termination Support
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
XK
Certification :
ISO9001 / GB / IEC
MOQ :
12 Pieces
Price :
Negotiation
Standard :
GB11032-2000
Application :
Lightning System
Product name :
lightning arrester
Product Keywords :
air termination
Selling Units :
Single item
Single package size  :
43X30X35 cm
Single gross weight :
12.000 kg
Package Type :
EXPORTING PACKAGE
Description

Free sample air termination with great price

Product Description

Type

Rated

voltage

(kV)

MCOV

(kV)

 Residual voltage (KV)

2000ms square

wave impulse

current withstand

4/1OMS high

current impulse

(kV)

Steep

current

impulse

switching

current

impulse

8/20 ms

Lightning

current

impulse
HY10W-3 3 2.55 9.5 7.7 9 100 100
HY10W-6 6 5.1 19.5 15.4 18 100 100
HY10W-9 9 7.65 28.5 23. 1 27 100 100
HY10W-10 10 8.4 36 30 23 250 150
HY10W-11 11 9.4 40 33 30 250 150
HY10W-12 12 10.2 38.0 30.8 36 200 100
HY10W-15 15 12.7 47.5 38.5 45 200 100
HY10W-18 18 15.3 57.0 46.2 54 200 100
HY10W-21 21 17.0 66.5 53.9 63 200 100
HY10W-24 24 19.2 76.0 61.6 72 200 100
HY10W-27 27 21.9 85.5 69.3 81 200 100
HY10W-30 30 24.2 95.0 76.5 90 200 100
HY10W-33 33 26.8 104.5 84.7 99 400 100
HY10W - 36 36 29 114.0 92.4 108 400 100
HY10W-42 42 34.1 132.3 100. 1 126 400 100
HY10W-48 48 39 152.0 126.0 150 400 100
HY10W-54 54 43 171.0 139.0 162 600 100
HY10W-60 60 48 208.0 160.0 180 600 100
HY10W-66 66 52.8 230.0 172.0 198 600 100
Metal Oxide High Voltage Lightning Arrester Air Termination Support

FAQ

Metal Oxide High Voltage Lightning Arrester Air Termination Support

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
