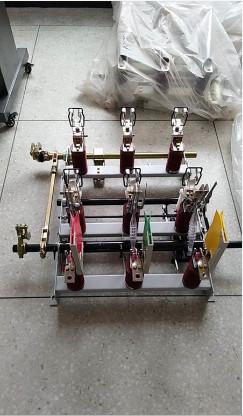

12kv 11kv Vacuum Load Break Switch / Electrical Load Break Disconnect
12kv 11kv Vacuum Load Break Switch / Electrical Load Break Disconnect
Specifications
Place of Origin :
china
Brand Name :
XK
Model Number :
FN12
Certification :
ISO9001 / GB / IEC
Supply Ability :
100 Piece/Pieces per Month
Packaging Details :
EXPORTING PACKING
MOQ :
1 Piece/Pieces
Price :
Negotiation
keywords :
12kv vacuum load breaker switch
Max. Current :
1250A
Max. Voltage :
12KV
Standard :
IEC
Rated Current :
630A,1250A
Rated Voltage :
12KV
Mechanical life :
10000
Port :
NINGBO
Description

12kv vacuum load breaker switch electrical load break switch vacuum load switch

Hot sale 12KV safety indoor AC high voltage load breaker switch

Product Description

12kv 11kv Vacuum Load Break Switch / Electrical Load Break Disconnect

Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise specializing in developping, design, manufacture, sales, import and export of low voltage and high voltage electrical products.

Company main products: indoor and outdoor high voltage vacuum circuit breaker, load break switches, disconnecting switches, drop out fuse cutour, lightning arrester, etc. All products comply with the requirements of GB, IEC, ANSI and other international standard.

ltem Unit Data
Rated voltage KV FN12-12D/630 FN12-12(R)D/125
Rated frequency HZ 12
Rated current A 50
1min power frequency withstand voltage KV 42 to ground and phases fracture 48
Lightning impulse withstand voltage KV 75 to ground and phases fracture 85
Rated thermal stable current KA
630
100
Rated dynamic stable current KA
50
Rated switching current(peak) KA
50
50
Rated short-circuit current(expected) KV
31.5
Maximum breaking current threshold HZ Fuse characteratic curve accorting
Minimum breaking current A Fuse characteratic curve accorting
Rated transfer current KV
50
1.5
Maximum breaking current KV 1.8
Breaking OFF-load transformer capacity KV/A 1250
Rated cable charging current A 10
Rated active load current breaking times Times 10000
Opening time when striker strikes S <0.06
Earth switch thermal current switch KA 20(2S)
Thermal stable current of earth switch KA 50 50
Motor operating power supply voltage V AC/DC 110/220

12kv vacuum load breaker switch electrical load break switch vacuum load switch

ltem Unit Data
FN12-10D/630 FN12-10(R)D/125
The total traveling distance of moving contact mm 200+8-2
Phase center distance (Before energy storage) mm 210±15
Moving contact overtravel distance mm 40±2
Auxiliary contact opening distance mm >150
Opening/Closing time difference among three phase ms <3
Opening speed m/s >2.8 >2.8
Closing speed m/s >3.8
Distance between metal flexible door and torch mm >125
Fracture distance of earth switch mm >150
Main circuit resistance Ω <120 <300
Maximum operating torque NM >160

12kv vacuum load breaker switch electrical load break switch vacuum load switch

12kv 11kv Vacuum Load Break Switch / Electrical Load Break Disconnect
