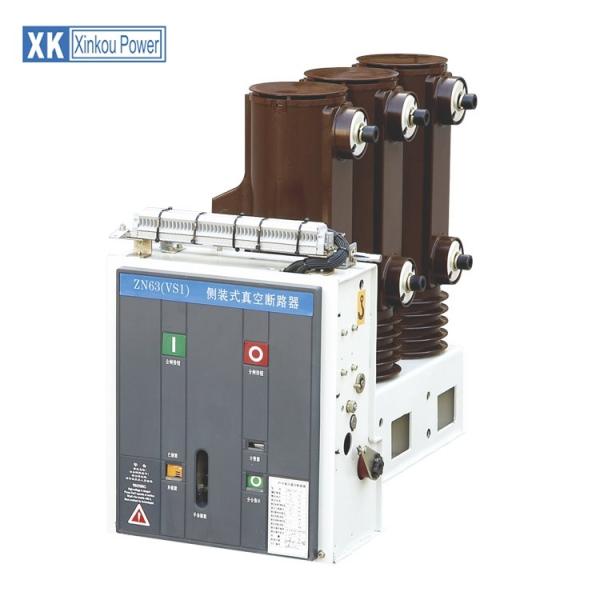

1250A 1600A 630a Vcb Breaker Indoor Side Mounting Three Phase Long Service
1250A 1600A 630a Vcb Breaker Indoor Side Mounting Three Phase Long Service
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
XK
Model Number :
VB7M
Certification :
ISO9001 / GB / IEC
Supply Ability :
100 Piece/Pieces per Month
Packaging Details :
EXPORTING PACKING
MOQ :
1 Piece/Pieces
Price :
Negotiation
Standard :
IEC
Rated Current :
630A,1250A, 1600A
Rated Voltage :
12KV
Mechanical life :
10000
Usage :
RING MAIN UNIT, SUBSTATION, NON-STD POWER SUPPLY SYSTEM
Port :
NINGBO
Description

Factory supply Indoor side mounting three-phase vacuum circuit breaker

Product Description

1250A 1600A 630a Vcb Breaker Indoor Side Mounting Three Phase Long Service

DISADVANTAGE OF VACCUM CIRCUIT BREAKER
Requirements of high technology for production of vacuum interrupters.
It needs additional surge suppressors for the interruption of low magnetizing currents in a certain range.
Loss of vacuum due to transit damage or failure makes the entire interrupter useless, and it cannot be repaired on site.
APPLICATIONS OF VACUUM CIRCUIT BREAKER
Because of the short gap and excellent recovery of vacuum circuit breaker, they are very useful as very high speed making switches in many industrial applications.
When the voltage is high and current to be interrupted is low these breakers have definite superiority over the other breakers.
For low fault interrupting capacities the cost is low in comparison to other interrupting devices.
Because of the least requirements of maintenance, these breakers are very suitable for the system which requires voltage from 11 to 33 kV

Item Unit Data
Rated voltage KV 12
Maximum working voltage KV 12
Rated Current A 630-1250 630-1600 630-1600
Rated short circuit breaking current KA 20 25 31.5
Rated short-circuit switching current KA 50 63 80
Rated peak withstand current KA 50 63 80
4S rated short-circuit withstand current KA 20 25 31.5
Rated insulation level 1min Power frequency withstand voltage KV 42(fracture 48)
lmpulse withstand voltage KV 75(fracture 84)
Rated short-circuit current breaking times Times 50
Rated Operating Mechanism Closing Voltage(DC) V AC,DC 110,220
Rated Operating Mechanism Opening Voltage(DC) V AC,DC 110,220
Contact opening distance mm 11±1
Overtravel(the length of contact spring compression) mm 3.5±0.5
Closing/Opening Time Difference Among Three Phase ms ≤2
Contact closing bounce time ms ≤2
Average opening speed m/s 0.9-1.2
Average closing speed m/s 0.5-0.8
Tripping Time Maximum operating voltage S ≤0.05
Minimum operating voltage S ≤0.08
Closing time S 0.1
The main circuit resistance of each phase 630≤50 1250≤45 1600≤40
Allowed Consumpted thickness of Contacts mm 3
