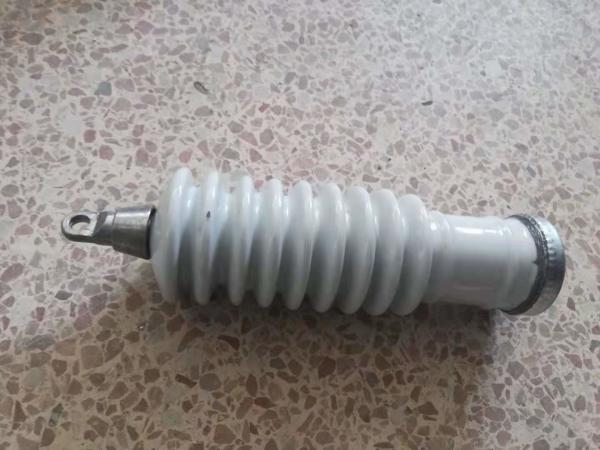

Y5WS Porcelain Gapless Lightning Arrester For Outdoor Distribution Line
Y5WS Porcelain Gapless Lightning Arrester For Outdoor Distribution Line
Specifications
Brand Name :
XK
Model Number :
Y5WS
Certification :
ISO9001 / GB / IEC
Place of Origin :
CHINA
MOQ :
1 PC
Price :
Negotiation
Supply Ability :
10000 PCS/Month
Packaging Details :
carton
Usage :
high voltage
Breaking capacity :
high
Application :
outdoor distribution line
Rated current :
5KA
Rated voltage :
10-15KV
Material :
porcelain
Color :
white
Standard :
IEC60099-4
Creepage distance :
31mm/KV
Oem :
available
Description

15KV porcelain type surge arrester Y5WS

Standards:IEC 60099-4
ambient condition:
1) The ambient air themperatures is no higher than +40° C, no lower than-40° C.
2) The altitude above sea level dose not exceed 2000m.
3) AC system frequency is 50Hz or 60Hz.
AC voltage brought to bear on arrester for a long time dose not exceed arrester's continuous operating voltage.
4) Maximum wind speed dose not exceed 35m/s.
5) The earthquake intensity dose not exceed 7 degrees.
Technical specification:

Y5WS Porcelain Gapless Lightning Arrester For Outdoor Distribution Line

lightning arrester product parameters
Type Rated voltage Continuous 1/4Steep 8/20ms 30/60Switching 2000μs Rectangular 4/10Current
(kV) operating current Lightning current wave withstand
　 voltage residual current residual current discharge
　 (kV≥) voltage residual voltage impulse(A) capacity
　 　 (kV≤) voltage (kV≤) 　 (kA)
　 　 　 (kV≤) 　 　 　
HY5W-3 3 2.55 9.5 9 7.7 100 65
HY5W-6 6 5.1 19 18 15.4
HY5W-9 9 7.65 28.5 27 23.1
HY5W-10 10 8.4 36 23 30
HY5W-11 11 9.4 40 30 33
HY5W-12 12 10.2 38 36 30.8
HY5W-15 15 12.7 47.5 45 38.5
HY5W-18 18 15.3 57 54 46.2
HY5W-21 21 17 66.5 63 53.9
HY5W-24 24 19.2 76 72 61.6
HY5W-27 27 21.9 85.5 81 69.3
HY5W-30 30 24.4 95 90 76.5
HY5W-33 33 26.8 104.5 99 84.7
HY5W-36 36 29 114 108 92.4
HY5W-42 42 34.1 132.3 126 100.1

FAQ

Y5WS Porcelain Gapless Lightning Arrester For Outdoor Distribution Line

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
