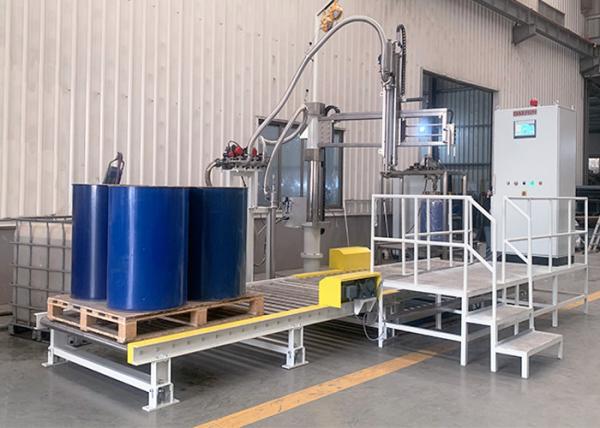

200L IBC Arm Type Semi Auto Pallet Filling Machine With Driven Conveyor
200L IBC Arm Type Semi Auto Pallet Filling Machine With Driven Conveyor
Specifications
Brand Name :
DAESUM
Model Number :
GZ1000-1XR
Certification :
ISO9001
Place of Origin :
CHINA SHANGHAI
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3 sets per quarter
Delivery Time :
5-10 work days
Packaging Details :
Strong wooden crate
Machine type :
GZ1000-1XR
Container :
200L Drum、IBC
Automatic degree :
Semi Automatic
Filling speed :
30-35 Drums/Hour
Nozzle qty :
1 (1-10)
Filling Accuracy :
±0.1-0.2%FS
Filling type :
Under the Liquid Surface Filling
Max weighing capacity: :
1500kg
Voltage :
380V/50Hz
Material :
SS304/SS316/PTFE；
Description

200L IBC Arm Type Semi-auto Pallet Filling Machine with Driven Conveyor

Introduction

GZ1000-A semi-auto machine is able to realize the automation of forklift pallet upload, manual cap loosening, manual positioning, auto quantitative filling and forklift heavy pallet out. The empty containers are placed on the pallet before filling, free from palletizing. Multi filling nozzles, equipment base, driven conveyor, ex-proof motor and air extraction equipment are optional.

Equipment Features

  • Less investment, occupy less area

  • Nozzle changeable filling machine, one machine can fill multiple materials with multiple nozzles,

  • ​ can be equipped with 2-10 nozzles

  • Suitable for multi types of containers, ranging from 25-1000L, flexible

  • Easy to operate, stable

Main Parameters Material Properties
TYPE

GZ1000-1AXR

1 NOZZLES

 Flammable and Explosive SUITABLE
Container

200LIBC

 Toxic and Harmful SUITABLE
Container Material Plastic/Metal DrumIBC High viscosity SUITABLE
Suitable for Variety of Drum Types Yes Strong Corrosive SUITABLE
Filling Speed 30-35 Drums/Hour Volatile SUITABLE
Numbers of Filling Station 1 Easy to Solidify SUITABLE
Max Weighing Capacity 1500kg
Filling Index value 100g Peripheral Equipment
Filling Accuracy ±0.1-0.2%FS Driven Conveyor YES(Optional)
Operating Temperature -10℃-+40℃ Drum Storage Warehouse NO (Optional)
Power 380V Coordinate Palletizier NO (Optional)
GAS Source 0.35～0.6MPa Automatic Pallet Warehouse NO (Optional)
Labeller NO (Optional)
Degree of Automation Wrapping Machine NO (Optional)
Auto Drum Infeeding YES
Auto Bunghole Positioning NO
Auto Cap Loosening NO
Auto Quantitative Filling YES
Auto Cap Feeding NO
Auto Capping NO
Auto Capping Inspection NO
Auto Heavy Drum Outfeeding YES
Auto Labelling NO(Optional)
Auto Palletizing NO(Optional)

FAQ

1. who are we?
We are based in Shanghai, China, start from 2001,sell to Eastern Asia(30.00%),Mid East(20.00%),

Southeast Asia(20.00%),Africa(15.00%),South America(5.00%),North America(5.00%),Eastern Europe(3.00%),

Oceania(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Special product filling machine,Dosing and mixing plant,Packaging machine,Palletizer,Gravimetric filling machine

4. why should you buy from us not from other suppliers?
Strong ability to dealing with high temperature, high viscosity, high inflammability and strong toxicity products. Very detailed and appropriate customized solutions for your specific needs. Time-endurable quality and user-friendly operation.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
