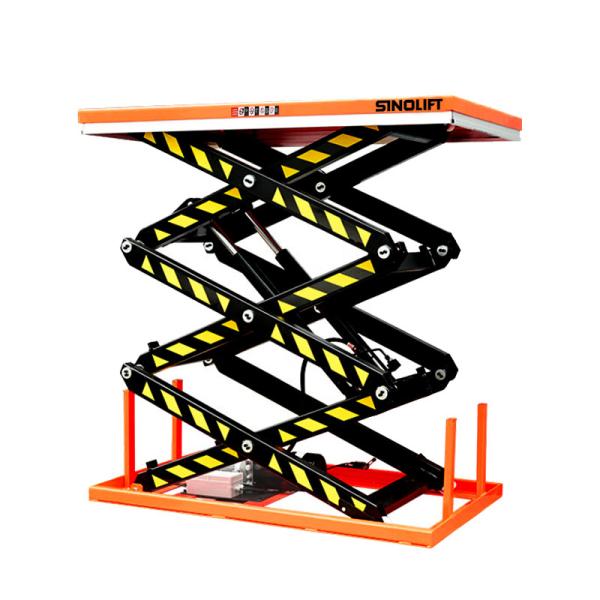

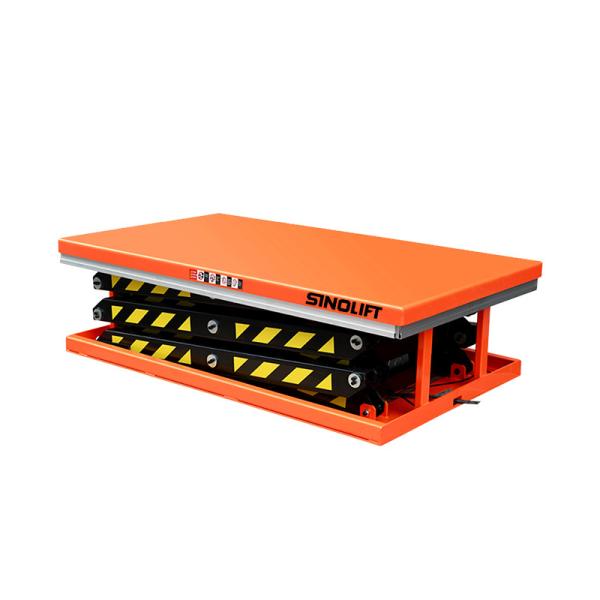

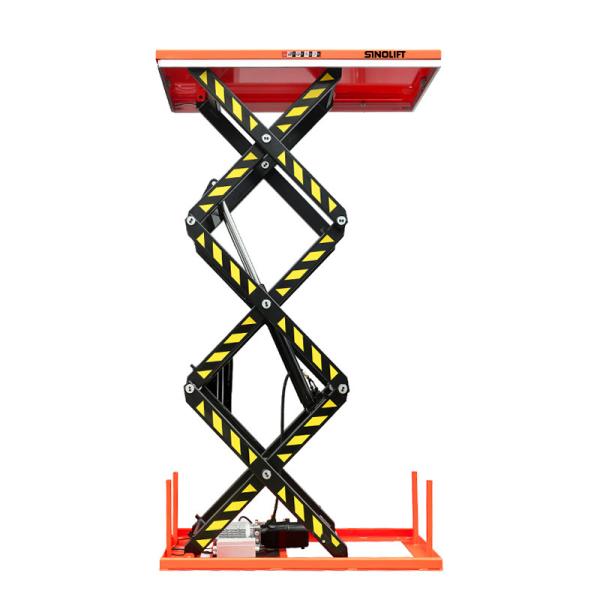

SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
Specifications
Brand Name :
SINOLIFT
Model Number :
HT
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
SINOLIFT HT Series Three Shear Small Hydraulic Scissor Electric Lift Tables Scissor Lifting Platform
Loading Capacity :
2000kg
Table Dimension :
1300X800mm
Base plate Size :
1210X585mm
Min./Max Height :
200/1000mm
Power :
380V/50Hz
Material :
Special Steel
Net Weight :
131Kg
Warranty :
1 year
After Service :
On-line service,Spare parts
Description

Product Description

1. Our large table lifting platform uses high quality pump station, so goods can be lifted stably.

2. In the event that platform encounters obstacles during descending process, the safety barrier strip under the
platform can ensure the safety.

3. The anti-clamping scissor forks can prevent injures.

4. The hydraulic platform is provided with overload protection function, ensuring the safety and reliability.

5. The electric lifting platform is fitted with safety wedge block, providing convenience for maintenance.

6. With super large table board, this large table lifting platform can be used to lift large size goods.

7. It is widely used for manufacturing and repairing work.

8. The large table lifting platform conforms to European EN1757-2 standard and American ANSI/ASME safety standard.

Model

HT1000

HT2000

Rated load

Kg

1000

2000

Platform Dimensions

mm

1700*1000

1700*1000

Base Dimensions

mm

1600*1000

1606*1010

Minimum altitude

mm

470

560

Lift height

mm

3000

3000

Lift time

s

35-45

50-60

Power parameter

380V/50Hz,AC2.2kw

Net weight

Kg

450

750

Product tags

hydraulic scissor lifting table

,

scissor hydraulic lift table

,

hydraulic scissor table lifts
