EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
Specifications
Brand Name :
Sinolift
Model Number :
EPS
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
EPS Semi-Electric Hydrualic Platform Stacker With Easier and Faster Lifting Operation Capacity 400Kg
Capacity :
400Kg
Max. Platform Height :
1915mm
Min. Platform Height :
85mm
Ovrall Size :
1040X570X1440mm
Paltform Width :
550mm
Front Load Wheel :
Ø150mm
Rear Steering Wheel :
Ø150mm
Lifting Speed :
95mm/130 S
Power Unit :
12V/0.8KW
Battery :
12V/60Ah
Net Weight :
106kg
Description

Feature:

1.Easier and faster lifting operation.
2.High quality hydraulic motor made in Italy.
3.Service free battery.
4.Maintenance-free battery and clear operating display.
5.Built-in charge can be very convenient and safety.

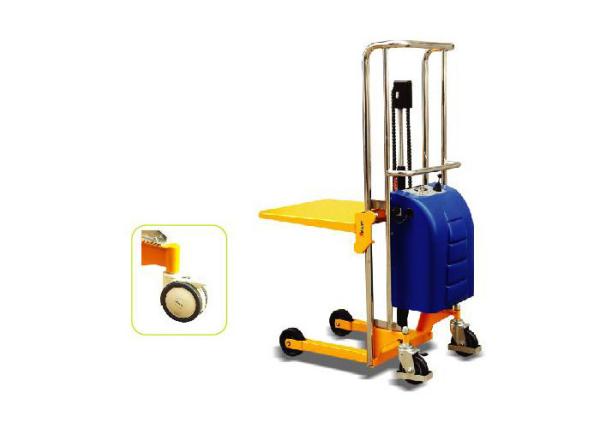

6.No-marking castor as standard.
7.Conforms to EN1757:1 2001.

Specification:

Model Platform EPS4120 EPS4150 EPS4180
Low Platform EPS4120L EPS4150L EPS4180L
Capacity (kg) 400 400 200~400
Max. Platform Height H (mm) 1315 1615 1915
1200 1500 1800
Min. Platform Height H1 (mm) 200 200 200
85(L) 85(L) 85(L)
Platform Length L1 (mm) 650 650 650
Paltform Width W (mm) 550 550 550
Front Load Wheel D (mm) Ø150 Ø150 Ø150
Ø75(L) Ø75(L) Ø75(L)
Rear Steering Wheel d (mm) Ø150 Ø150 Ø150
Ø125(L) Ø125(L) Ø125(L)
Lifting Speed (Laden/Unladen) mm/s 95/130 95/130 95/130
Lowering Speed (Laden/Unladen) mm/s 115/65 115/65 115/65
Power Unit V/kw 12/0.8 12/0.8 12/0.8
Battery V/Ah 12/60 12/60 12/60
Net Weight(PS/EP) (kg) 106 109 115
Noise-free Castor O O O
Ovrall Size LxWxH (mm) 1040x570x1440 1040x570x1740 1040x570x1940
Product tags

power lift stacker

,

high lift electric stacker

,

electric stacker model dyc
