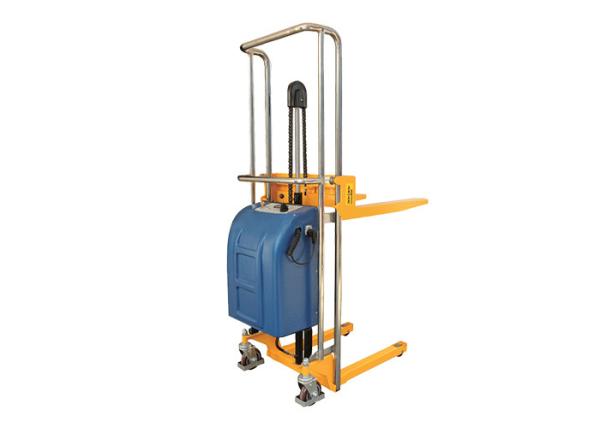

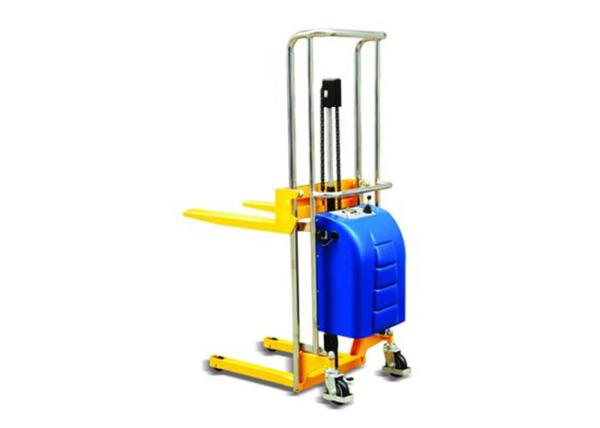

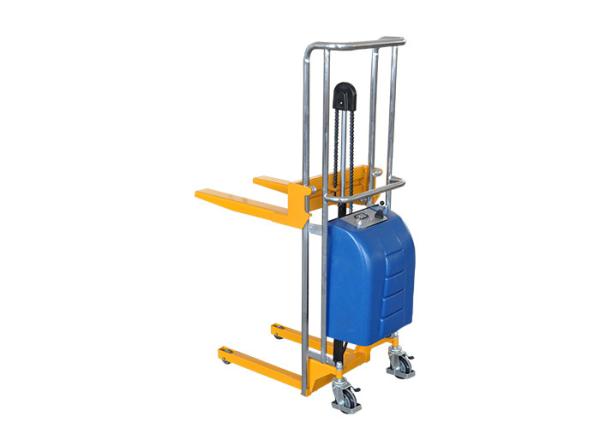

EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
Specifications
Brand Name :
Sinolift
Model Number :
EF
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
EF Semi-Electric Hydraulic Stacker With Low Profile Forks Capacity 400Kg
Capacity :
400kg
Max.Fork Height :
1800mm
Min.Fork Height :
85mm
Fork Size :
650X100mm
Fixed Fork Width :
550mm
Power Unit :
0.8KW
Battery :
12V/60Ah
Overall Height :
1410mm
Net Weight :
105Kg
Warranty :
1 year
After Service :
On-line service,Spare parts
Description

Feature:

1.Low profile forks can lift the pallet easily.
2. Easier and faster lifting operation.
3. High quality hydraulic motor made in Italy.
4.Service free battery.
5. Option platform available.
6. No-marking castor as standard.
7.Bespoke design can meet various technique requirements.
8. Conforms to EN1757.

Specification:

Model (Fixed Fork) EPF4120A EPF4150A EPF4180A
Capacity (kg) 400 400 200~400
Max.Fork Height (mm) 1200 1500 1800
Min.Fork Height (mm) 85 85 85
Fork Size (mm) 650x100 650x100 650x100
Fixed Fork Width (mm) 550 550 550
Load Roller (mm) Ф75 Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125 Ф125
Power Unit (KW) 0.8 0.8 0.8
Battery (V/Ah) 12/60 12/60 12/60
Overall Height (mm) 1410 1710 2010
Overall Width (mm) 590 590 590
Overall Length (mm) 1100 1100 1100
Net Weight (kg) 105 108 114
