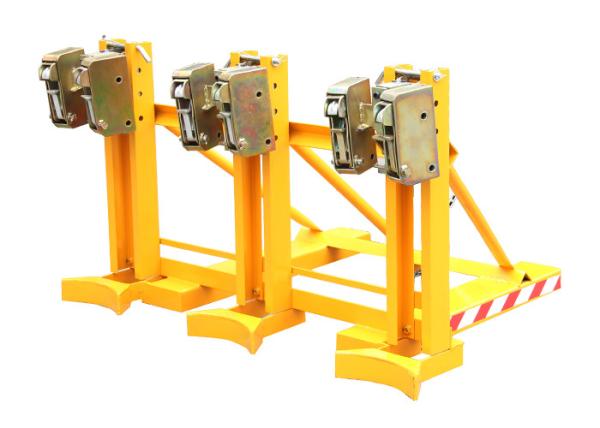

DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
Specifications
Brand Name :
Sinolift
Model Number :
DG1080B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/month
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
DG1080B Forklift Mounted Drum Grab Welded Steel Construction Forklift Drum Grabber Load Capacity 360Kg X2
Load Capacity :
3X360Kg
Overall Size :
1110X1520X850mm
Straddle inner Width :
670mm
Staddle outline Width :
990mm
Load Center :
1150mm
Foks leg (length*width) Height :
150X55mm
Grab Min. Height :
465mm
Grab Max. Height :
690mm
Straddle Length :
900mm
Net Weight :
123kg
Warranty :
1 year
Description

Feature:

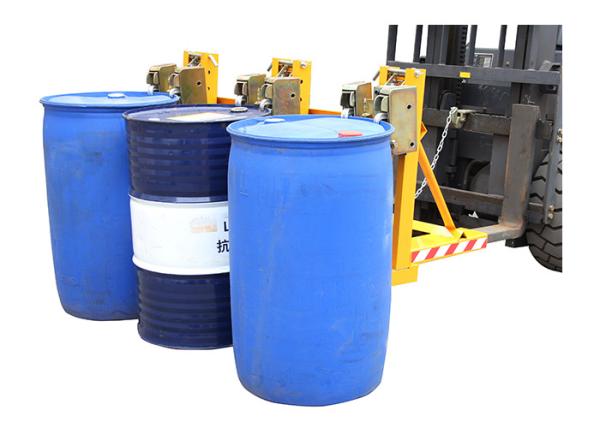

* This time tested and proven design allows a fork truck operator to easily secure, move and release drums without leaving the seat of the fork truck.

* For use with open and closed head plastic, steel and fiber drums with a top lip strong enough to support the weight of the drum.

* Includes safety chain and T-Locks to secure unit to the fork truck.

* Welded steel construction.

* Powder coat finish.

* Accommodates 30 and 55 gallon drums.

* Fork pockets measure 165mm(6-1/2") wide x 63.5mm (2-1/2") high usable.

1. Grab, lift, move and place drums without the operator leaving driver's seat;

2. Completely Mechanical and Automatic drum grab requires no hydraulic

or electrical connections;

3. Automatic clamping mechanism for handling steel and plastic drums in

high volume applications

4. Carriage mounted models are available to mount directly on the carriage

of most lift trucks for tight aisle applications;

- Can handle 1,2,3 drums simultaneously;

5. Totally enclosed fork pockets with attached safety chain and cam lock

secures attachment to lift truck.

Specification:

Model 　 DG1080B
Capacity kg 3X360
Net Weight kg 123
Overall Size mm 1110X1520X850
Load Center mm 1150
Grab Min. Height mm 465
Grab Max. Height mm 690
Grab Middle Height mm 615--540
Foks leg (length*width) mm 150X55
Straddle inner Width mm 670
Staddle outline Width mm 990
Straddle Length mm 900
