DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
Specifications
Brand Name :
Sinolift
Model Number :
DTF450C-1
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
DTF450C-1 Portable Drum Truck with Scale Loading Capacity 450kg
Model :
DTF450C-1
Load Capacity :
450kg
Drum Size :
30 Gallon Steel Drum (Ø450x700), Gallon Steel Drum (Ø572x900), or 210L Plastic Drum
Lifting Height :
1100mm
Outline Dimensions :
1140×950×1870mm
Inner Width of Front Leg :
920mm
Outer Width of Front Leg :
1140mm
Net Weight :
135Kg
Warranty :
1 year
After Service :
On-line service,Spare parts
Description

Feature:

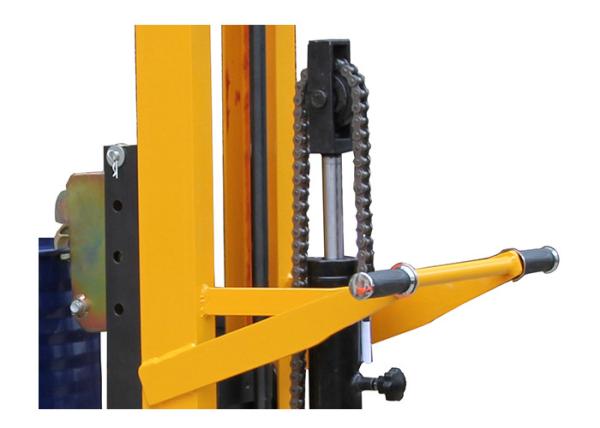

1.Heavy-duty design of 450 KG loading weight; lift with pedals; Ergonomic handle is easy and safe to operate with Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:1100mm
2.Automatic clamping tight the oil drum during lifting which is safety and reliable
3.Fit for handling oil drums placed along pallet edges or corners; carry oil drums from the direction of diagonal line of pallet
4.With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰
5.Applicable for transferring, weighting, stacking and pallet loading & unloading, etc. of all kinds of oil drums.
Note: Electronic weighting device is built in DTF450C-1; eagle gripper is optional to equip

Specification:

Model 　 DTF450C-1
Load Capacity kg 450
Drum Size 　 30 Gallon Steel Drum (Ø450x700), Gallon Steel Drum (Ø572x900), or 210L Plastic Drum
Lifting Height mm 1100
Outline Dimensions mm 1140×950×1870
Front Wheel mm Φ150×50(PU)
Rear Wheel mm Φ125×50(PU)
Inner width of Front Leg mm 920
Outer Width of Front Leg mm 1140
Self-Weight kg 135
