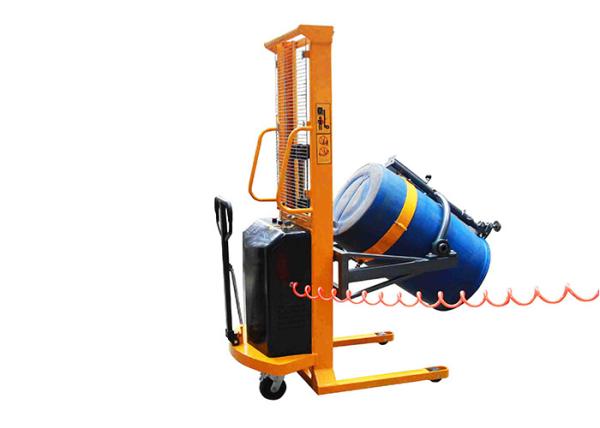

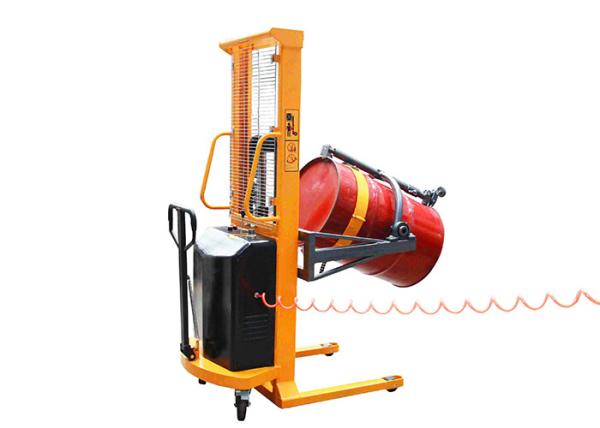

DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
Specifications
Brand Name :
Sinolift
Model Number :
DA300
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Delivery Time :
15 days
Supply Ability :
1000 Set/Month
Packaging Details :
Sandard Export Package
Product Name :
DA300 Rotator Air Drum Rotator Pneumatic Drum Lifter Capacity 300kg
Capacity :
300KG
Power :
1.6-3.3KW
Application :
Chemical Plants
Type :
Pneumatic
Pressure :
4-7 Bar
Rotating speed at highest power :
2550-3000RPM
Torque at highest power :
2.3-4.1Nm
Max. torque :
3.5-6.3Nm
Warranty :
1 year
After Service :
On-line service,Spare parts
Description

Feature:

1. Special design for lifting, rotating or stacking drum;
2. It has a clamp-style cradle which securely grips around the drum and a steel jaw which securely grips the top lip of the drum;
3. Pneumatically rotate 180 degree, and can keep the drum at any angle;
4. Could be operated with hand pump and power for lifting;
5. Economical, ergonomics, efficient, durable and reliable;
6. Can add scale on it, depend on customer request;

The pneumatic stacker is a very robust unit that is designed to be used continually on a production basis. The rotator is designed to lift and rotate all drums from 55 Gallon steel drums and 200L plastic close drums. The main chassis is constructed from hot rolled channel sections and not folded plate. This gives the unit excellent rigidity and a long service life. So they are widely used for chemical plants and food plants for transferring, loading & unloading, charging and compounding materials of fluids, such as dyes, paintings, adhesives, petrol, edible oils, etc.

Specification:

Technical Data of Pneumatic Lifting Motor:

Pressure Power Rotating speed at highest power Torque at highest power Max. torque Rotating speed at maximum torque Gas consumption
(Bar) (KW) (rpm) (Nm) (Nm) (rpm) (L/S)
4 0.6 2550 2.3 3.5 255 20
5 0.8 2750 2.9 4.4 275 26
6 1.1 2900 3.5 5.3 290 31
7 1.3 3000 4.1 6.3 300 36

Technical Data of Pneumatic rotating motor:

Pressure Power Rotating speed at highest power Torque at highest power Max. torque Rotating speed at maximum torque Gas consumption
(Bar) (KW) (rpm) (Nm) (Nm) (rpm) (L/S)
4 0.37 85 41 63 255 20
5 0.5 90 52 79 275 26
6 0.68 96 63 95 290 31
7 0.8 100 73.8 113 300 36
