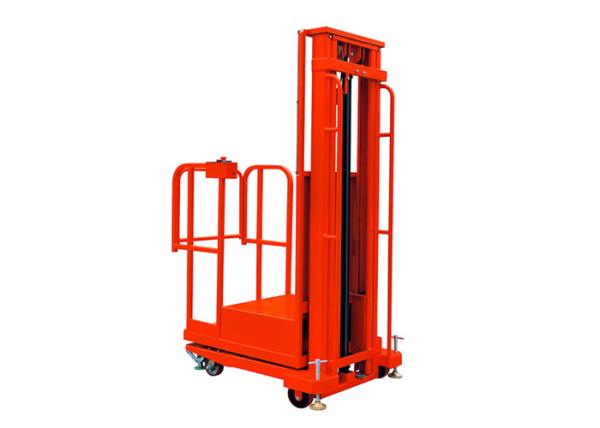

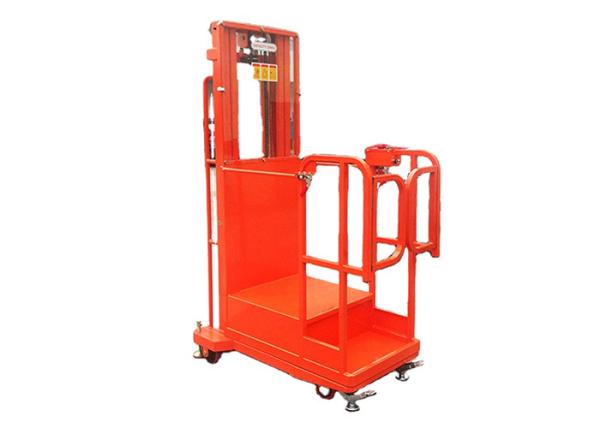

ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
Specifications
Brand Name :
Sinolift
Model Number :
ZDYT
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
ZDYT Series Full Electric Order Picker Lift Rated Capacity 300Kg
Lift Rated Capacity :
300kg
Max.Platform Height :
4500mm
Platform Size :
600X640mm
Min. Turning Radius :
1500mm
Driving Motor :
2X24V/0.5KW DC
Lifting Motor :
24V/1.6KW
Battery :
2X12V/200Ah
Charger :
24V/15A
Overall Dimension :
1530X700X1830mm
Net Weight :
430Kg
Warranty :
1 year
Description

Feature:

1. Be able to drive at maximum height of platform
2. Maneuverable, extremely easy to use
3. High safety and efficiency
4. Imported top quality electric control system
5. "C” section forks for greatest strength
6. Supplied with battery and automatic charger
7. Conforms to EN-280

Specification:

Model 　 ZDYT300-2.7 ZDYT300-3.3 ZDYT300-3.5 ZDYT300-4.0 ZDYT300-4.5
Max.Platform Height H mm 2700 3300 3500 4000 4500
Max.Machine Height H1 mm 4120 5000 5500 6000 6500
Mast 　 Duplex 2-stage Triplex 3-stage
Ground Clearance H1 mm 40 40 50 50 50
Lift Rated Capacity kg 300 300 300 300 300
Platform Size mm 600×640 600×640 600×640 600×640 600×640
Max.Drive Speed (platform Stowed) km/h 4 4 4 4 4
Max.Drive Speed (platform Elevated) km/h 1.6 1.6 1.1 1.1 1.1
Min. Turning Radius mm 1500 1500 1700 1700 1700
Max. Climbing Capacity % 20 20 25 25 25
Driving Wheel Size mm Φ230×80 Φ230×80 Φ230×80 Φ230×80 Φ230×80
Steer Wheel inch 6 6 6 6 6
Driving Motor V/kw 2×24DC/0.5 2×24DC/0.5 2×24DC/0.4 2×24DC/0.4 2×24DC/0.4
Lifting Motor V/kw 24/1.6 24/1.6 24/2.0 24/2.0 24/2.0
Battery V/Ah 2X12/120 2X12/120 2X12/120 2X12/120 2X12/120
Charger V/A 24/15 24/15 24/20 24/20 24/20
Overall Length mm 1530 1530 1550 1550 1550
Overall Width mm 700 700 700 700 700
Overall Height mm 1830 1830 1640 1810 1980
Net Weight kg 430 450 655 665 675
