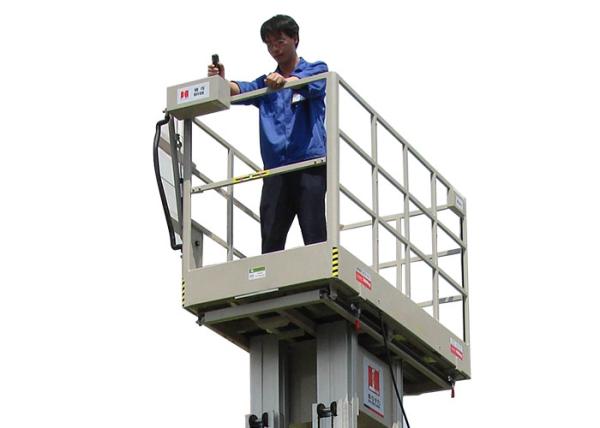

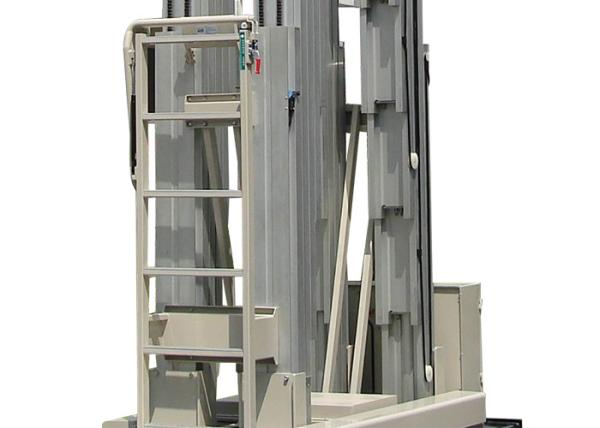

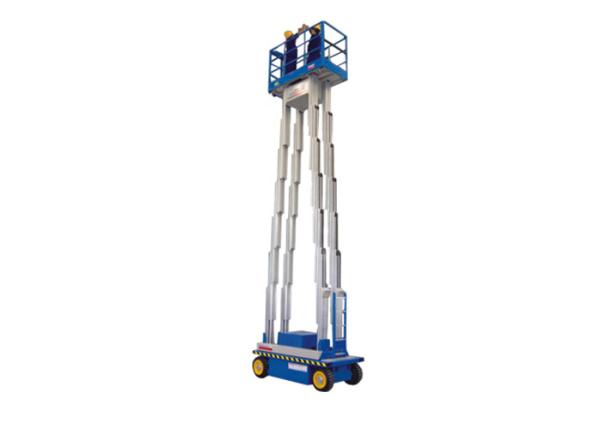

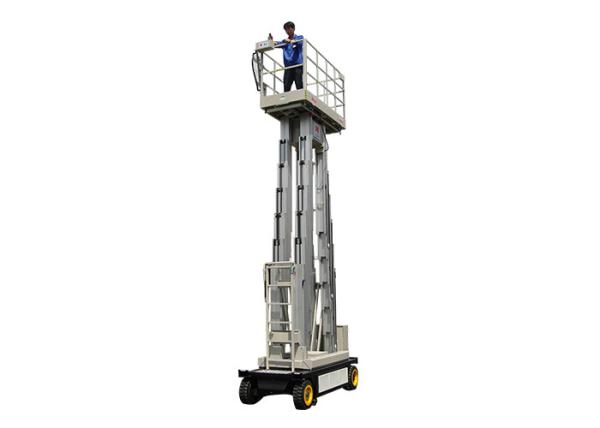

AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
Specifications
Brand Name :
Sinolift
Model Number :
AMWP-4000
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
AMWP-4000 Four Mast Self-propelled Aerial Work Platform Capacity 400Kg
Rated Capacity :
400kg
Max. Platform Height :
8000mm
Min. Platform Height :
7700mm
Platform Size :
1720X1040X1150mm
Overall Dimension :
2230X1100X960mm
Charger :
24V/12A
Driving Motor :
24V/3KW
Lifting Motor :
24V/3KW
Battery :
2X12V/100Ah
Net Weight :
2050Kg
Warranty :
1 year
Description

Feature:

1. Suitable for 1-3 person to work upraised

2. Maximum Platform height available: 6m;8m.

3. Power Supply: DC 24V

4. Platform roll out horizontally (optional)

5. Roll out length: 0.9M

6. Traveling method: hydraulic powered self-propeller.

Specification:

Model No. AMWP6-4000 AMWP8-4000
Max. Platform Height mm 6000 8000
Max. Machine Height mm 7700 9700
Min. Platform Height mm 　
Ground Clearance mm 50
Lift Rated Capacity kg 400 300
Platform Extend Capacity kg Free Set
Platform Size mm 1720×1040×1150
Platform Extend Length mm Free Set
Max. Drive Speed (Platform Stowed) km/h 3~4
Max. Drive Speed (Platform Elevated) km/h 0.6-1
Max. Travel Grade % 15-20
Roller Out Length mm 900
Driving Motor v/kw 24/ 3
Lifting Motor v/kw 24/ 3
Aneroid Battery v/Ah 2×12/100
Charger v/A 24/ 12
Pothole Protection System v/A Automechanism
Overall Length mm 2230
Overall Width mm 1100
Overall Height mm 1960
Overall Net Weight kg 2050 2200
