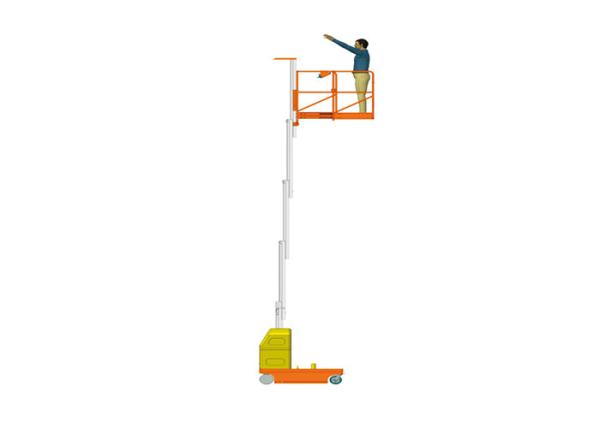

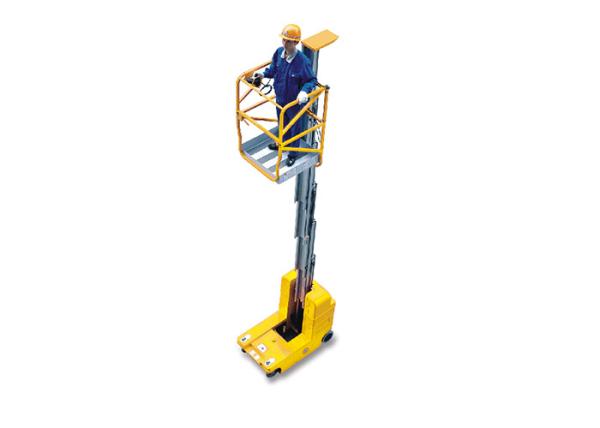

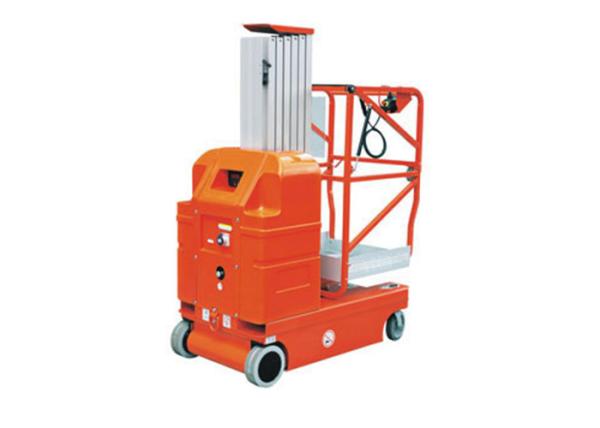

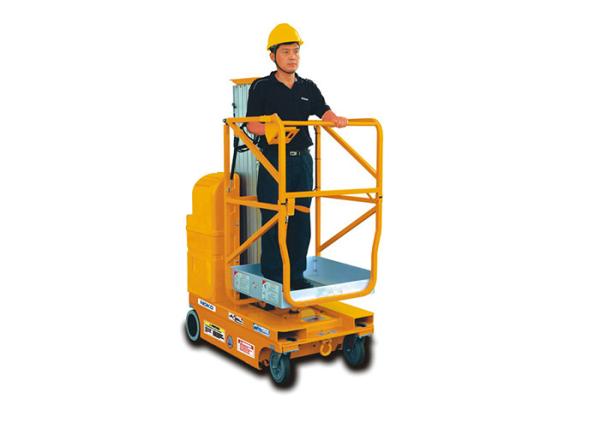

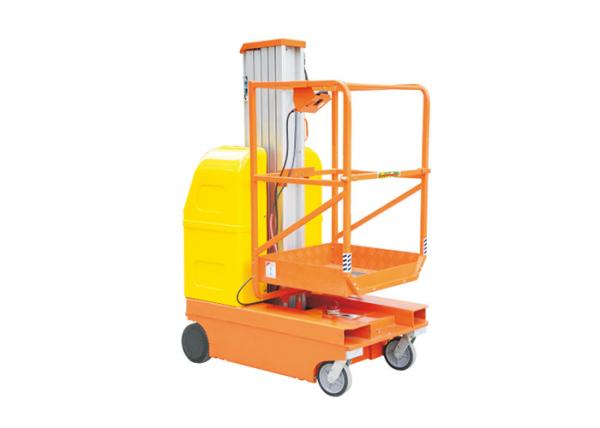

AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Lift Capacity 150Kg
Specifications
Brand Name :
Sinolift
Model Number :
AMWP-1000
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
AMWP-1000 Single Mast Self-propelled Aerial Work Platform Capacity 150Kg
Lift Rated Capacity :
150kg
Max. Platform Height :
7500mm
Min. Platform Height :
510mm
Ground Clearance :
50mm
Platform Size :
780X700X1150mm
Driving Motor :
2X24V/0.4-0.5KW
Lifting Motor :
24V/2KW
Charger :
24V/12Ah
Net Weight :
850kg
Warranty :
1 year
After Service :
On-line service,Spare parts
Description

Feature:

The product has passed the CE certification and is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc. It is only for one persons working .

1. It is powered by DC, can move automatically, has the function of exchanging low and high speeds, can be controlled manually and requires no manual push.

2. The driving motor has the automatic braking function.

3. It can climb to a certain gradient.

4. It has special design for moving on unleveled floor and tilt alarm..

5. The malfunction can be diagnosed and displayed in codes. The emergent drop will be locked.

6. The electricity recharge is protected. In recharging condition, the operation is stopped.

Specification:

Model No.　AMWP6-1000AMWP7.5-1000
Max. Platform Heightmm60007500
Max. Machine Height76009000
Min. Platform Height510
Ground Clearance50
Lift Rated Capacitykg150125
Platform Extend CapacityFree Set
Platform Sizemm780×700×1150
Platform Extend LengthFree Set
Max. Drive Speed (Platform Stowed)km/h3~4
Max. Drive Speed (Platform Elevated)0.6-1
Min. Turning Radiusmm1350
Max. Travel Grade%15-20
Caster Sizein8
Driving Wheel Sizemmф230-250×80
Driving Motorv/kw2×24/0.4-0.5
Lifting Motor24/ 2
Aneroid Batteryv/Ah2×12/100
Chargerv/A24/ 12
Pothole Protection System　Automechanism
Overall Lengthmm1360
Overall Width790
Overall Height1980
Overall Net Weightkg850880
