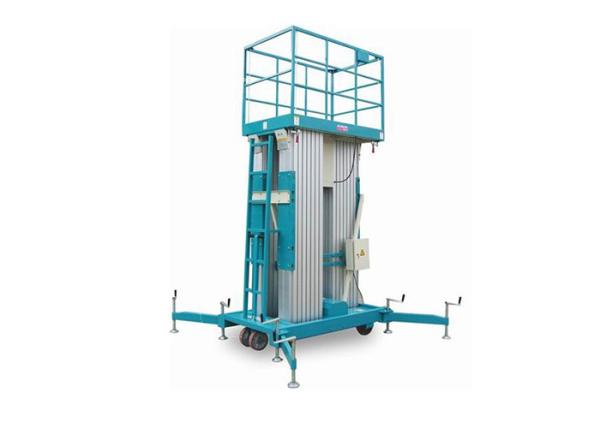

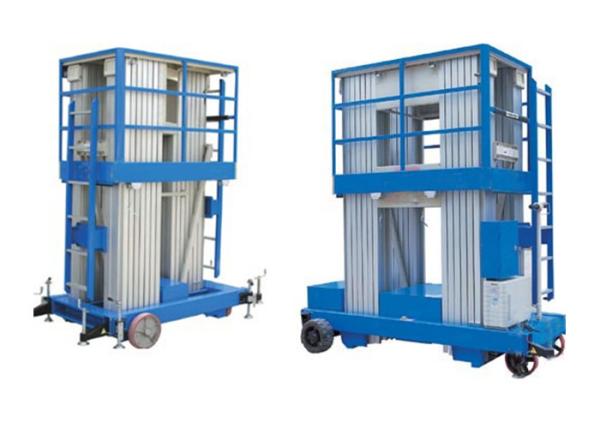

GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
Specifications
Brand Name :
Sinolift
Model Number :
GTWY-3000
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
GTWY-3000 Thress Mast Aluminum Aerial Work Platform Capacity 300Kg
Capacity :
300kg
Working Height :
15700mm
Platform Height :
14000mm
Platform Size :
1480X800mm
Voltage :
220V/50hz
Power Pack :
1.5KW
Stored Dimensions :
1690X1040X2120mm
Net Weight :
720Kg
Warranty :
1 year
After Service :
On-line service,Spare parts
Description

Feature:


1. Two sets of independent upper and lower lifting structures;
2. Three groups of aluminum alloy mast combination for lower lifting structure and double mast combination for upper lifting structure;
3. The two structures can be shifted automatically with better operation and stability;
4. The guardrail can be entirely hung on the platform without occupying too much room, offering easy in passing through lower passage;
5. Its overall dimension is the smallest among similar products and it can be used both outside and indoor;
6. Electric driving unit is equipped for moving;
7. Power Supply: Single phase AC;
8. Traveling Method: powered propeller as standard; manual traveling as option;
9. Available accessories: uninterruptible power supply;
10. Conforms to CE, one of National Key New Products 2001.

Specification:

Model GTWY10-3000 GTWY12-3000 GTWY14-3000
Working Height mm 11700 13700 15700
Platform Height mm 10000 12000 14000
Platform Capacity kg 300 250 200
Loading Persons p 2 2 2
Platform Size mm 1480×800 1480×800 1580×800
Voltage v/hz Ac220/50 Ac220/50 Ac220/50
Power Pack kw 1.5 1.5 1.5
Stored Dimensions mm 1690x1040x2120 1690x1040x2480 1790x1040x2480
Net Weight kg 720 780 920
