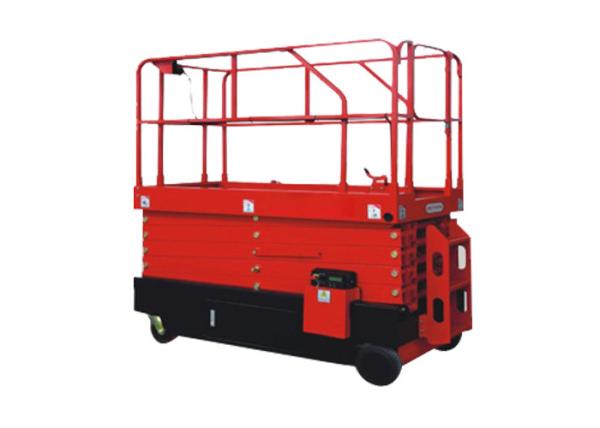

FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
Specifications
Brand Name :
Sinolift
Model Number :
FSJY(mini)
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
FSJY(mini) Self-propelled Aerial Work Platform Capacity 240Kg
Rated Capacity :
240kg
Maximum Working Height :
5000mm
Maximum Platform Height :
3000mm
Overall Dimension :
1180X760X1830mm
Platform Size :
1170X600mm
Wheel base :
990mm
Driver Motor :
2X24V/0.4KW
Lifting Motor :
24V/0.8KW
Battery :
2X12V/80Ah
Warranty :
1 year
Description

Feature:

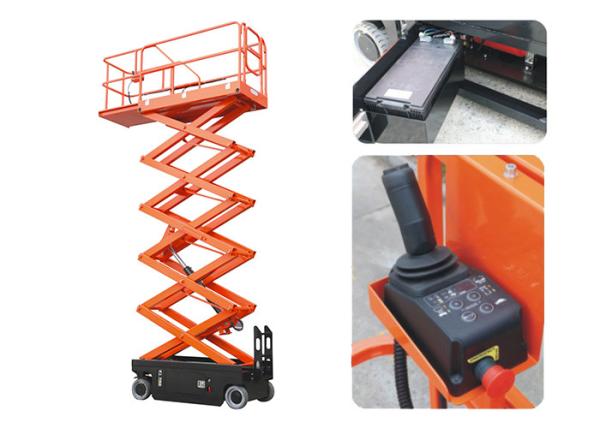

SJY Work platform, scissors movement design to keep stable lifting and lowering, with its high capacity and large working place,

could be mainly used in construction area, maintenance for large warehouse, maintenance for street lamp and so on.

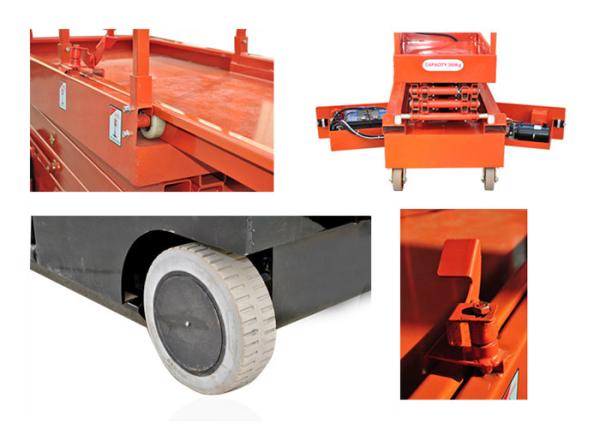

Moreover, because of its big solid tire, it could work perfectly in rough ground.

1. DC motor and driving systems.

2. With safety-falling equipment.

Specification:

Model Number 　 FSJY0.24-3 (mini)
Lift Rated Capacity kg 240
Maximum working height mm 5000
Maximum platform height mm 3000
Overall Length mm 1180
Overall Width mm 760
Overall Height mm 1830
Platform Size mm 1170×600
Ground clearance mm 60
Wheel base mm 990
Minimum turn radius mm 1200
Driver Motor V/kw 2×24/0.4
Lifting Motor V/kw 24/0.8
Running speed(platform Stowed) km/h 4
Running speed(platform Elevated) km/h 0.8
Rising/falling speed sec 20/30
Battery V/Ah 2×12/80
Charger V/A 12/24
Maximum climbing ability % 10-15
Maximum working allowable angle / 2°
Driving Wheel mm Φ230×80
Front wheel in 6
Lifting capacity kg 490
