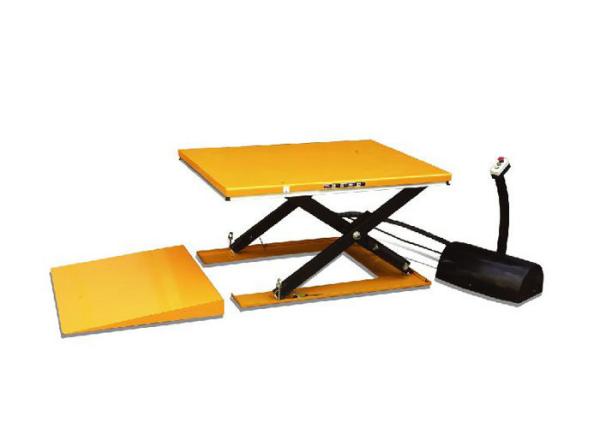

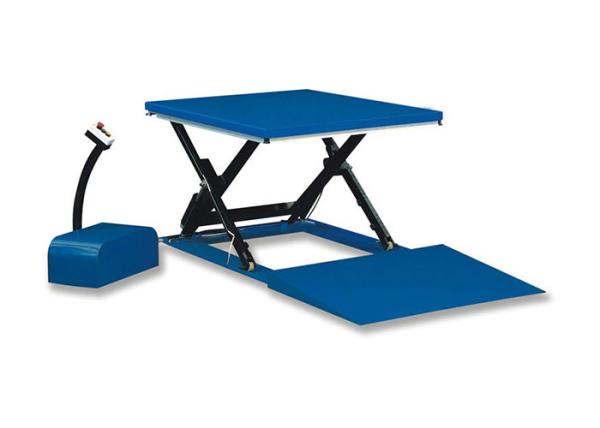

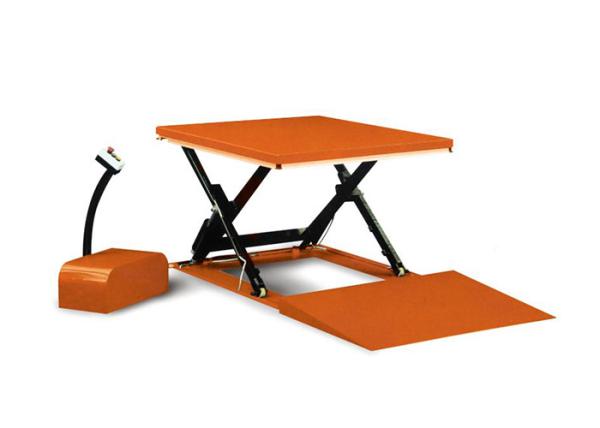

HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
Specifications
Brand Name :
SINOLIFT
Model Number :
HY
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
HY Series Electric Low Profile Stationary Lift Table With Capacity 1 Ton- 2 Ton
Rated Capacity :
1000kg-2000kg
Platform Size :
1600X1200mm
Min. Height :
105mm
Max. Height :
870mm
Stroke :
775mm
Lifting Time :
30mm
Power Pack :
380V/50HZ, AC 2.2kw
Net Weight :
405kg
Warranty :
1 year
After Service :
On-line service,Spare parts
Description

Feature:

1. Heavy duty design with larger platform
2. These tables achieve a low closed height, eliminating the need for a pit installation.
3. They are manufactured to all European safety standards including EN1570:1999.
4. Remote power pack with pedestal and controls, IP54 protection.
5. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
6. 24V control box with UP and DOWN buttons and emergency stop.
7. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC 380V/50HZ/3phase.
8. Hose burst safety valve to stop the lift table lowering in case of hose breakage.
9. Removable lifting eyes to facilitate handling and installation of the lift table.
10. Oil-less bushings on pivot points.
11. Loading ramp is a standard equipment.

Specification:

Model 　 HY1001 HY1002 HY1003 HY1004 HY1005 HY1501 HY1502 HY1503 HY2001 HY2002
Capacity (kg) 1000 1500 2000
Platform Size LXW(mm) 1450×1140 1600×1140 1450×800 1600×800 1600×1000 1600×800 1600×1000 1600×1200 1600×1200 1600×1000
Min. Height (mm) 85 105
Max. Height (mm) 860 870
Stroke (mm) 775
Lifting Time (second) 25 30 35
Power Pack 　 380V/50HZ, AC 0.75kw 380V/50HZ, AC 1.5kw 380V/50HZ, AC 2.2kw
Net Weight (kg) 357 364 326 332 352 367 401 415 419 405
