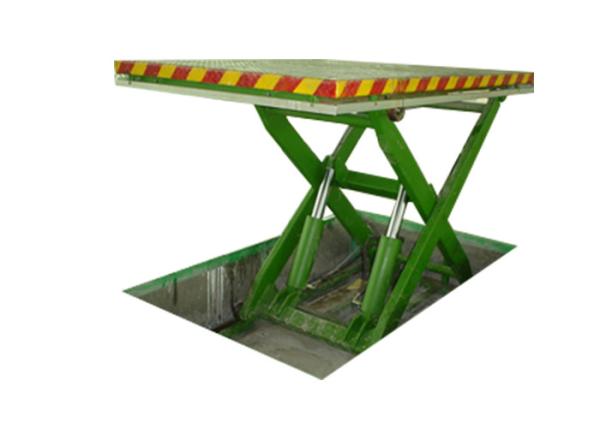

SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1000Kg to 10000Kg
SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1000Kg to 10000Kg
SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1000Kg to 10000Kg
SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1000Kg to 10000Kg
SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1000Kg to 10000Kg
SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1000Kg to 10000Kg
SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1000Kg to 10000Kg
SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1000Kg to 10000Kg
SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1000Kg to 10000Kg
SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1000Kg to 10000Kg
Specifications
Brand Name :
SINOLIFT
Model Number :
SJG
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
SJG Single Scissorslift Elevator Shot Blast Treatment Steel Single Scissor Elevator Platform Capacity 1200Kg to 3000Kg
Model :
SJG
Loading Capacity :
1000Kg-10000Kg
Lifting Height :
1700mm
Lift Height :
460-800mm
Platform Size :
2500X2000mm/2500X4000mm
Elevating Time :
30S
Motor Power :
2.2/3.7/7.5KW
Self Weight :
1200-3000Kg
Warranty :
1 year
After Service :
On-line service,Spare parts
Description

Feature:

1. The mechanistic form of optimized design effectively lowers the initial height of the lift table, and increases the lifting stroke to the maximum range.

2. The fairly strong rigidity of the lifting mechanism enables the lift table to have every high rise and fall steadiness.

3. The reliability of the lifting mechanism, and the stability of the hydraulic system make the lift table suitable for frequent operation.

4. The steel have undergone shot blast treatment, effectively improving the welding quality and paint adhesive force.

5. The precision ground hydraulic cylinder inner wall fitted with imported sealing elements ensure the hydraulic cylinder has very good sealing performance.

6. The compact type hydraulic station design can be integrated inside of most lift tables.

Specification:

Model Capacity (kg) Lifting height H2(mm) Rated height(mm) Lift Height(mm) Platform size(mm) Elevating time(s) Motor power(kw) Self weight (kg)
Stationary Hydraulic Lift Table with Single forks
SJG1-1.7 1000 1700 2160 460 2500x2000 30 2.2 1200
SJG2-1.7 2000 1700 2180 480 2500x2000 30 3.7 1400
SJG3-1.7 3000 1700 2180 480 2500x2000 30 3.7 1600
SJG5-1.7 5000 1700 2280 580 2800x2000 30 7.5 2000
SJG10-1.7 10000 1700 2500 800 4000x2000 30 7.5 3000
