Specifications
Brand Name :
Sinolift
Model Number :
CBD
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
1000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product name :
SINOLIFT CBD20Li Full Electric Pallet Truck Capacity 2000kg
Driving style :
Pedestrian
Load capacity Q :
2000kg
Load center C :
600mm
Overall length :
1780mm
Overall width :
690mm
Overall height :
1310mm
Power of driving motor :
1.5kw
Power of lift motor :
2.2kw
Net weight :
350kg
Warranty :
1 year
After service :
on-line service,free spart parts
Description

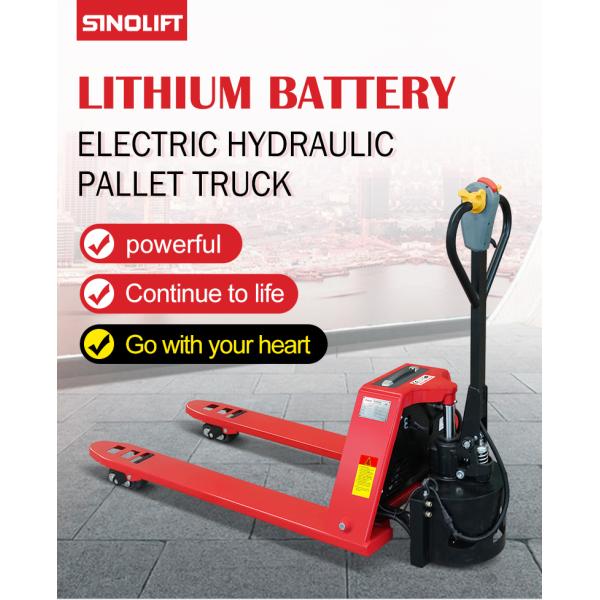

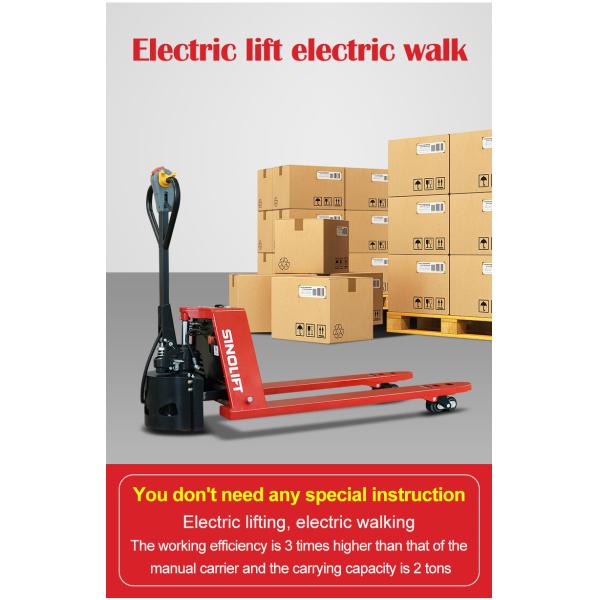

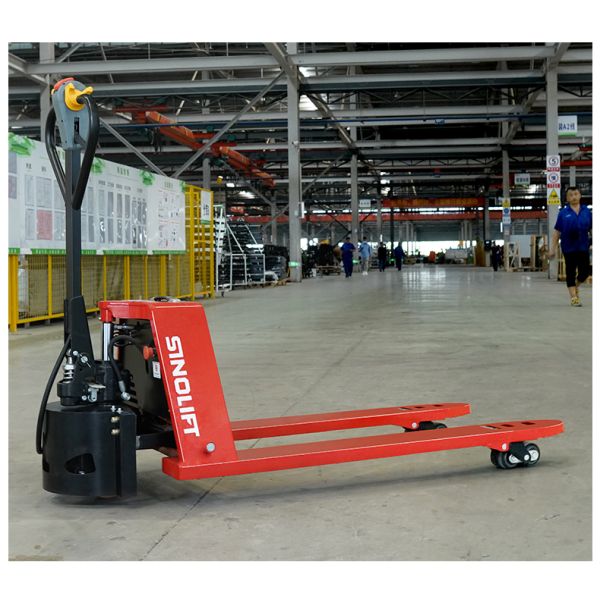

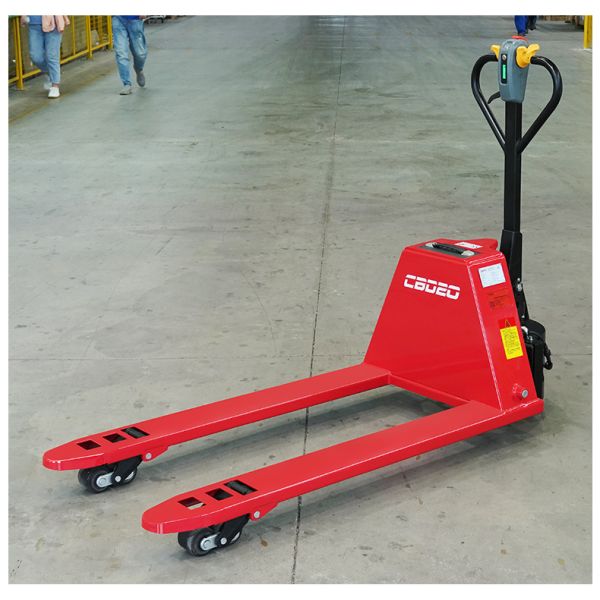

The CBD20Li is an electric pallet truck powered by a lithium ion battery, making it ideal for efficiently transporting goods over short distances. Unlike traditional manual pallet trucks, the CBD20Li utilizes electric power for both lifting and moving cargo. Its compact fork to face design allows it to easily navigate tight spaces, making it perfect for use in stores, commercial centers, and other confined environments. We support customization needs, if you have any customization needs please feel free to contact us

Model CBD20Li-712 CBD20Li-511
Type of Operation Walkie Walkie
Steering Mode Mechanical Mechanical
Load Capacity / Rated Load Q kg 2000 2000
Load Center Distance C mm 600 2000
Wheel Base y mm 1318 1248
Total Weight (Include Battery) kg 135 130
Overall Length L1 mm 1686 1616
Overall Width W1 mm 685 550

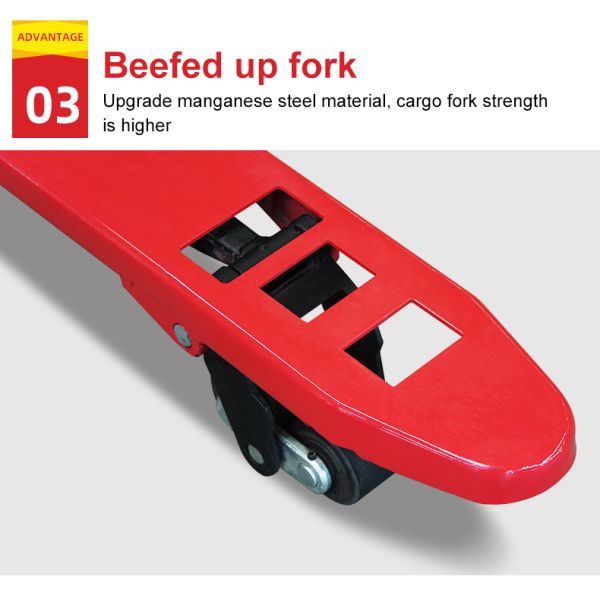

Fork Dimension I/e/s mm 1220 x150x45 1150x150x45
Width of Fork b2 mm 685 550
Min. Fork Height h3 mm 80 80
Lift Height h2 mm 195 195
Ground Clearance at Center of Wheelbase m1 mm 35 35
Height of Operating Handlebar (Max.) h14 mm 1245 1245
Turning Radius Wa mm 1575 1520
Aisle Width for Lengthways (Pallet Size1000*1200) Ast mm 2375 2312
Aisle Width for Lengthways (Pallet Size 800*1200) Ast mm 2205 2181

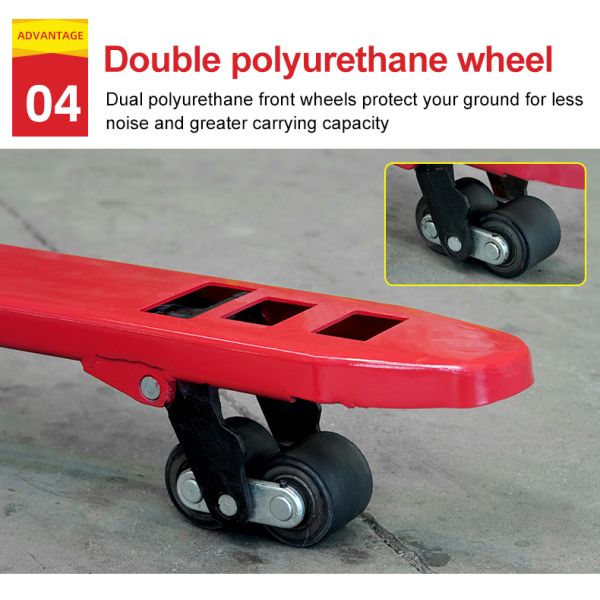

Tyre Type Polyurethane Polyurethane
Tyre Size (Front) mm p 78x70 p 78x70
Tyre Size (Driving Wheel) mm p 160x50 p 160x50
Wheels Quantity, Front/Rear(x=Driving Wheel) 2/1x 2/1x
Drive Damping Method / /
Traveling Speed (laden/unladen) Km/h 4.3/4.8 4.3/4.8
Lifting Speed (laden/unladen) mm/s 20/25 20/25
Lowering Speed (laden/unladen) ?>1s ?>1s

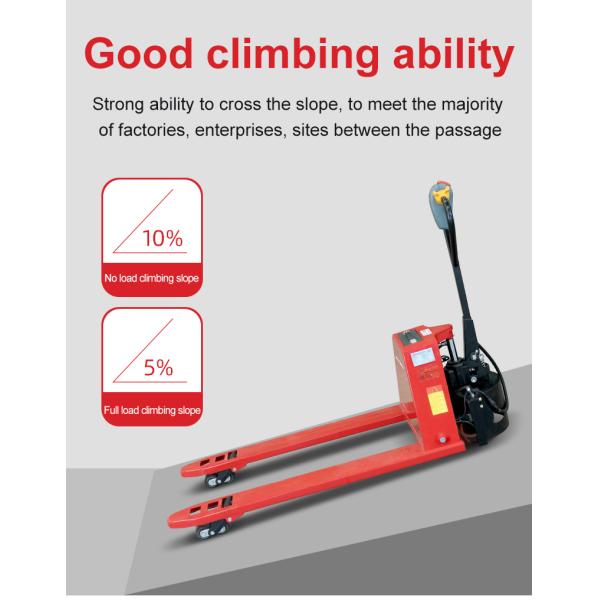

Max.Gradient Performance (laden/unladen) % 5/10 5/10
Paking/Service Brake Type Electromagnetic Electromagnetic
Drive Motor (DC) Kw 0.8 0.8
Lifting Motor (DC) Kw 0.8 0.8

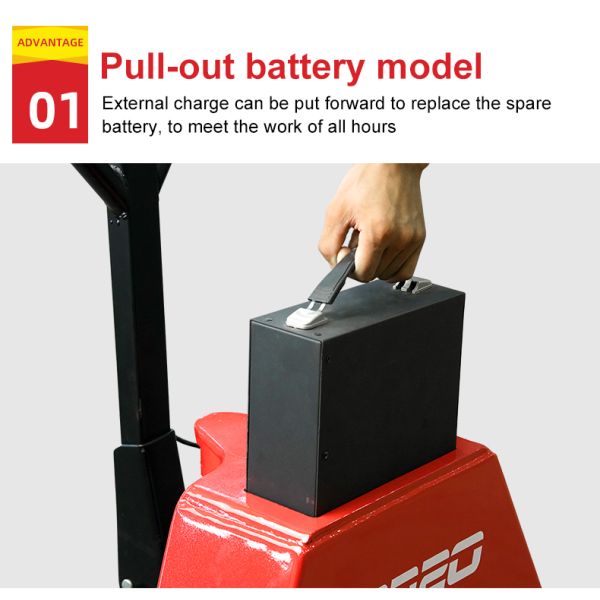

Battery Voltage/Capacity K5 V/Ah 48/16 48/16
Battery Weight kg 6.6 6.6
