Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Specifications
Brand Name :
Sinolift
Model Number :
CBD20M
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
1000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product name :
Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment
Driving style :
Pedestrian
Load capacity Q :
2000kg
Load center C :
600mm
Overall length :
1780mm
Overall width :
690mm
Overall height :
1310mm
Power of driving motor :
1.5kw
Power of lift motor :
2.2kw
Net weight :
350kg
Warranty :
1 year
After service :
on-line service,free spart parts
Description

Sinolift 2.5 ton ~ 3.0 ton series electric pallet truck CBD20M used in the warehouse environment

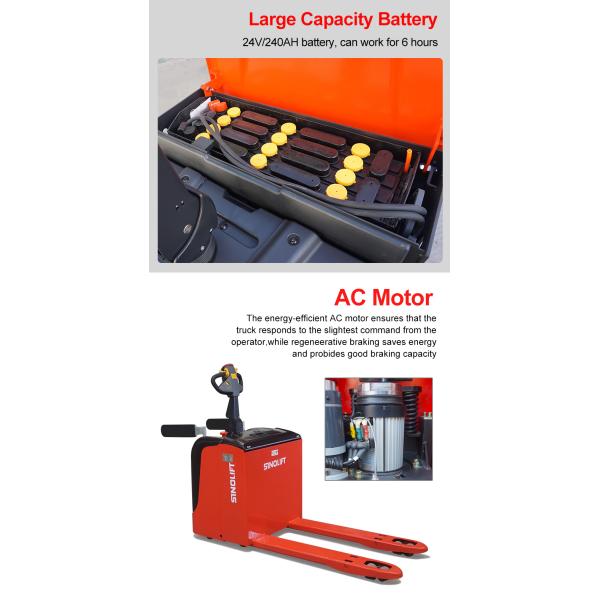

l Maintenance-free AC drive system for optimal performance.

l Premium quality controller ensuring reliable operation.

l Electromagnetic braking system for enhanced safety.

l Concealed shock-absorbing pedal design, offering high comfort during driving.

l High-performance hydraulic station with low noise, minimal vibration, and high efficiency.

l Electronic steering system, offering lightweight control, reduced noise, and effortless maneuvering.

l Emergency reverse device for enhanced safety.

Model CBD20M CBD25M CBD30M
Power Type Electric Electric Electric
Operation Type Stand-on Stand-on Stand-on
Steering Mode Electric Power Steering
Load Capacity Q kg 2000 2500 3000
Load Center C mm 600 600 600
Wheelbase y mm 1410 1410 1410
Total Weight(With Battery) kg 650 650 650
Axle Load( Loaded):rear/front kg 900/1750 1070/2080 1245/2425
Axle Load( Unloaded):rear/front kg 545/105 545/105 545/105
Overall Length L1/L2 mm 1800/2265 1800/2265 1800/2265
Overall Width W1 mm 810 810 810
Fork Size l/e/s mm 1150×170×55 1150×170×55 1150×170×55
Width of Fork b2 mm 540/685 540/685 540/685
Ground Clearance at Fork h3 mm 85 85 85
Lifting Height h2 mm 205 205 205
Ground Clearance at center of wheelbase m1 mm 55 55 55
Height of Operating Handlebar(Min./Max.) h14 mm 1000/1380 1000/1380 1000/1380
Turning Radius(Footboard Fold/Unfold) Wa mm 1660/2100 1660/2100 1660/2100
Right Stack Aisle Width Ast mm 2400/2840 2400/2840 2400/2840
(Pallet size 1000*1200,Footboard Fold/Unfold)
Right Stack Aisle Width Ast mm 2315/2755 2315/2755 2315/2755
(Pallet size 800*1200,Footboard Fold/Unfold)
Tyre Type Polyurethane Polyurethane Polyurethane
Tyre Size(Front) mm 85*70 85*70 85*70
Tyre Size(Balance Wheel) mm 115*55 115*55 115*55
Tyre Size(Driving Wheel) mm 230*75 230*75 230*75
Tyres Number front/rear(x=drive wheel) 4/1x+2 4/1x+2 4/1x+2
Drive Damping Method Drive frame integral rail type spring shock absorption
Traveling Speed(Loaded/Unloaded) Km/h 7.5/8 6.0/7 5.0/7
Lifting Speed(Loaded/Unloaded) mm/s 22/35 22/30 22/30
Lowering Speed(Loaded/Unloaded) mm/s 30/26 30/26 30/26
Max. Gradeability(Loaded/Unloaded) % 85 85 65
Service Brake Type Electromagnetic/Regeneration
Parking Brake Type Electromagnetic
Drive Motor Power(AC) KW 1.5 1.5 1.5
Pump Motor Power(DC) KW 0.8 0.8 2.2
Battery Voltage/Capacity K5 V/Ah 24V/210 24V/210 24V/240
Battery Weight kg 188 188 210
Controller Brand CURTIS CURTIS CURTIS
Controller Model 1232E 1232E 1232E
Noise Level dB 70 70 70
