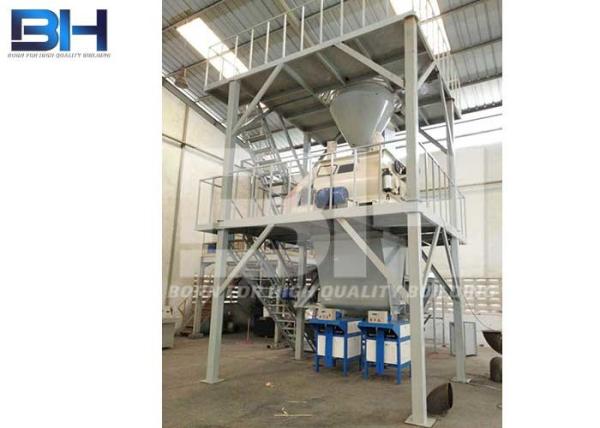

10-15T/H Automatic technology dry mortar production line dry mix plant

Description:

Dry mix mortar plant is mainly composed of raw materials storage system, lifting & conveying system, weighing system, mixing system, packing system dust collection system and control system.It's always used for mixing and producing all kinds of dry powder,such as mansory mortar, foor mortar, tile mortar, brick mortar, filing mortar, insulation mortar and so on.

BH Automatic dry mortar plant on the basis of semi-auto dry mortar plant, increases the raw material storage system, automatic weighing system and premix tank, that no need manual weighing, and improves the efficiency. Depending on the configuration, capacity at 10-15T/H, with an annual output of 30-100,000 tons per year. Occupation area: 60-100m² , Height: 8-13 m, Worker required: 3-4 persons.

Parameter:

Working flow:

According to requirements of the customers, the system can be equipped with 3-6 bulk storage bins.
Cement and fly ash will be filled to the silos by pump truck, then the cement, sand, fly ash and additives will be conveyed to the metering and batching system for dosing,
the material in which will, after being processed by the metering and batching system, be conveyed to pending-for-mixing bin,
and then fed into the high-efficiency biaxial agravic mixer for continuous mixing.
The finished product in conformity with mixing accuracy requirements can be sent to the finished products bin shortly after mixed.

Features:

The equipment structure sets out flexibly: According to the customers’ product formula requests, different investment scale and place environment, we custom and provide customers production equipments solution with good cost performance.

The equipments function is stable and reliable: The professional R&D team is the premise of product quality; the parts are purchased globally which ensure the equipments running stably.

Green, economized on energy and environmental protection: The reasonable structure of the projects, stable credibility of system function and the three-tube dryer are the guarantee for the economy and low consumption of the equipments; various types dust removing machine are installed at different position which greatly satisfy the requirements at the maximum limit and promise the equipments economy on energy and environmental protection.

Service first principle: Our professional service engineers pay attention to your equipments at every moment. Ensure your equipments running stably and reliably, lower cost of equipments maintenance, maximize your enterprise economic efficiency and social efficiency.

Applications:

1. Cement based insulation mortar
2. Polymer cracking mortar
3. Base coat mortar for EPS/XPS board, fiber glass mesh
4. Plaster rendering mortar
5. Substrate mortar for masonry
6. Light glazed hollow mortar
7. Flexible mortar fiber mesh
8. Mortar grout
9. Self-leveling mortar
10. Internal wall waterproofing putty powder
11. Internal wall flexible putty powder
12. External wall waterproofing putty powder
13. External wall flexible putty powder

Packaging and delivery:

Installation site:
