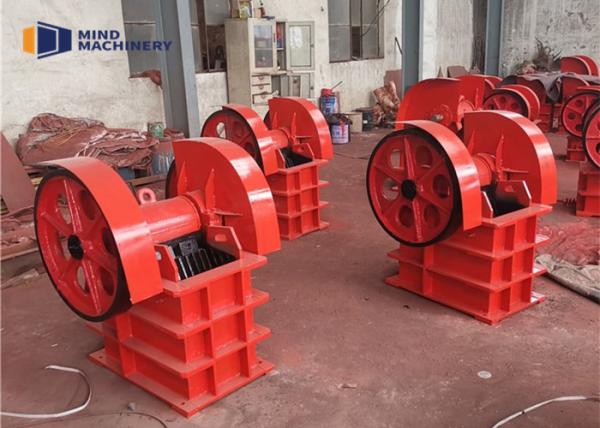

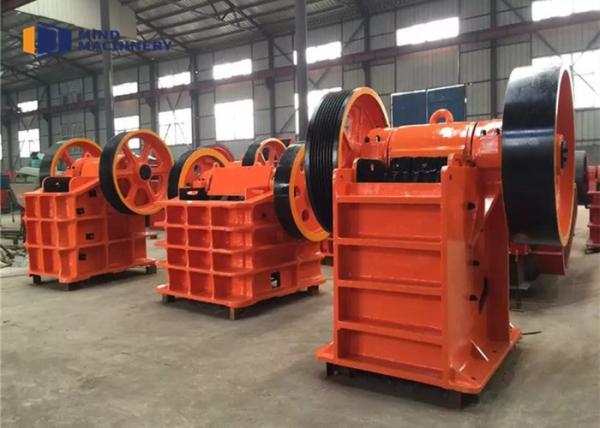

Mini Jaw 0.6T/H 3T/H Stone Crusher Plant For Quarry Construction
Mini Jaw 0.6T/H 3T/H Stone Crusher Plant For Quarry Construction
Mini Jaw 0.6T/H 3T/H Stone Crusher Plant For Quarry Construction
Mini Jaw 0.6T/H 3T/H Stone Crusher Plant For Quarry Construction
Specifications
Brand Name :
Mind
Model Number :
PE-150*250
Certification :
ISO,CE
Place of Origin :
Henan,China
MOQ :
1Set
Price :
USD 1200-3800 set
Payment Terms :
T/T, L/C, MoneyGram
Supply Ability :
200sets per month
Delivery Time :
7-20 Working Days
Packaging Details :
1. Plastic Films + 2. Wooden Case
Condition :
New
Application :
Mining,Stone Industrial,Quarry,Sandstone,construction
Voltage :
3 phase 380V
Type :
Jaw Crusher,Mobile Crusher
Motor type :
AC Motor
Capacity(t/h) :
3-12
Power(w) :
7.5KW
Warranty :
One Year Excluding Wearing Parts
Weight :
2t
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,commissioning and training
Description

0.6-3 tph Small Jaw Stone Crusher Plant for Quarry, Construction

Product Descriptions of Stone Crusher Plant:

Jaw crusher is a heavy-duty machine that crushes hard materials. So its hence muse be robustly constructed. Crusher frame is made from steel or cast iron. The jaws are made of cast steel. The liners are made from“Ni-hard,” Ni-Cr alloyed cast iron or manganese steel which can replaceable and use to reduce frame wear. The cheek plates are also made from hard alloy steel and installed to the sides of the crushing chamber to protect the frame from wear.

Jaw Crusher Working Principles:

A series of jaw stone crushers use compressive and squeezing force for reducing materials. This physical force is created by the two jaw plates, one of which is a movable plate and another is fixed, both of them are made of manganese. A V-shaped cavity, crushing chamber, is formed and the hydraulic discharge gap width of the crushing chamber, we can determine the suited feeding material size and discharging size, the width of top feeding is larger than that of bottom discharging.

Jaw Crusher Wear Parts:

Jaw crusher parts must have some wear after a period of use, but the easily damaged parts will wear out more. The price of crushing equipment with the same specifications and handling capacity is different in the material of parts.
Guard Plate The guard plate is made of high-quality high manganese steel, which is located between the fixed plate and the movable plate. The whole body is mainly to protect the jaw crusher frame wall.
Toothed Plate Tooth plate is divided into movable and fixed tooth plate, but both is made from high manganese steel casting. In order to prolong its service life, its shape is designed to be symmetrical. That is when one end of the wear can be used to turn the head. The movable and the fixed teeth plate are the main parts for stone crushing. So the movable teeth plate is installed on the movable jaw to protect the movable jaw.
Toggle Plate The toggle plate is a cast iron piece that has been precisely calculated. It is not only a force transmission component but also the safety parts of the crusher. When the crusher falls into the non-crushing material and makes the machine beyond the normal load, the toggle plate will immediately break. Then the crusher machine stops operation, thus avoiding the damage of the whole machine. The toggle plate and the toggle plate spacer adopt the rolling contact model which less attrition under normal use. It just needs smear a layer of grease on the contact surface is ok.
Triangular Belt When the motor transmits power, the triangle belt is connected with the pulley and the grooved pulley of the motor to drive the eccentric shaft and make the moving jaw move back and forth according to the predetermined track.
The tooth plate of the most jaw crushers are made of manganese steel, bearing linings are made of babbitt alloy, sliding blocks are made of carbon steel, toggle plates are made of cast iron, springs are made of 60SiMn. Regular Inspection and maintenance of the machine can extend its service life. In order to reduce customer costs, we will generally be in the purchase of customers are advised to buy some spare parts. Because once the parts need to be replaced, the temporary purchase will take some time. The wait time may cause the entire breakage line to suspend operations, thereby increasing operating costs.
