Industrial Stainless Steel Screw Conveyor Small Size 310 Rpm Rotation Speed
Industrial Stainless Steel Screw Conveyor Small Size 310 Rpm Rotation Speed
Specifications
Brand Name :
Mind
Certification :
ISO, CE
Place of Origin :
Henan, China
MOQ :
One Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 unit/units per Month
Delivery Time :
7-20 Working Days
Packaging Details :
Standard wood box, PP films
Product Name :
Industrial Screw Conveyor
Max. Conveying Length(m): :
14m
Rotation Speed(r/min) :
310 rpm
Carrying Capacity(t/h) :
15 t/h
Shell Pipe Diameter(mm) :
219 mm
Model :
LSY219
Description

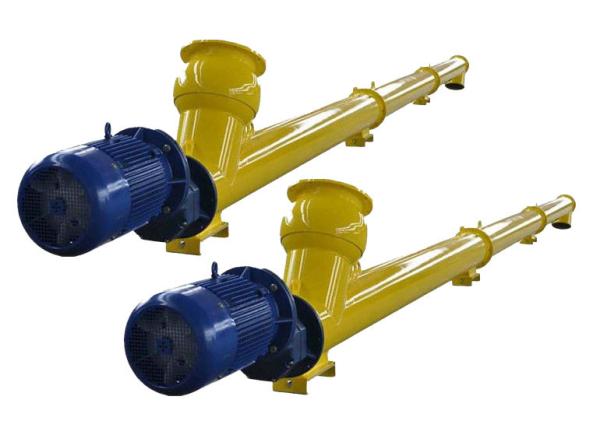

Industrial Stainless Steel Screw Conveyor Small Size 310 Rpm Rotation Speed

1. Product Description of screw conveyor machine:

Screw conveyor machine is a new type of transporting equipment, which use rotary screw vane to push material continuously in closed housing with round section.

It is applicable to transport various kinds of loose material such as power, granular and small piece material, for example: clay powder, pulverized coal, cement, sand, grain, small piece of coal, cobble and cast iron filings, etc. It is not applicable to transport material with high viscosity, easy to be curdled.

2. Technical Parameters of screw conveyor machine:

Carrying Capacity(t/h) LSY165 LSY219 LSY273 LSY325
Shell Pipe Diameter(mm) 165 219 273 325
Carrying Capacity(t/h) 10 15 30 60
Rotation Speed(r/min) 310 310 240 170
Max Working Angle(°) 0-45° 0-45° 0-45° 0-45°
Max. Conveying Length(m) 14 14 14 14
Length(m) (From inlet to outlet) <4 6 8 >11.5 <4 6 8 >11.5 <6 8 >11.5 <6 8 >11.5
Motor Power (kw) 3/2.2 4 5.5 7.5/11 5.5 7.5 11 15 11 15 18.5 15 18.5 22/30

3. Features of screw conveyor machine:

1. Large load capacity , safety and reliability ;
2. Well-adapted, convenient to install and maintain, long life;
3. Small size ,high rotation speed;
4. Flexible arrangement on position of inlet and outlet.

4. Working Principles:

Screw conveyor machine uses revolving screw to move the conveyor material in fixed casing, the bearings of head and tail are moved to shell, hanger bearing adopts sleeve bearing, which have dust proof sealing device, bearing bush usually adopts powder metallurgy,convey concrete adopts felt bushing, hanger shaft and screw shaft are connected by slider.

Industrial Stainless Steel Screw Conveyor Small Size 310 Rpm Rotation Speed

Industrial Stainless Steel Screw Conveyor Small Size 310 Rpm Rotation Speed
