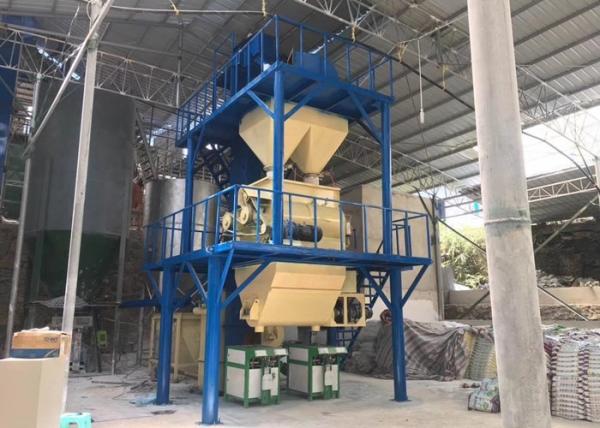

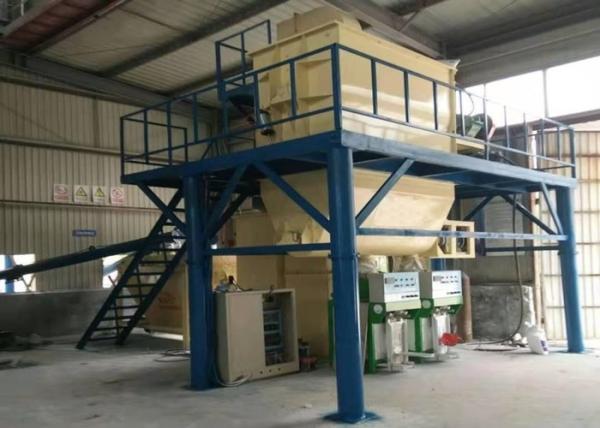

Semi Automatic Tile Adhesive Machine Wall Tile Grout Plant Computer Control
Semi Automatic Tile Adhesive Machine Wall Tile Grout Plant Computer Control
Semi Automatic Tile Adhesive Machine Wall Tile Grout Plant Computer Control
Semi Automatic Tile Adhesive Machine Wall Tile Grout Plant Computer Control
Specifications
Brand Name :
Mind
Certification :
ISO, CE
Place of Origin :
Henan, China
MOQ :
One Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
200 Sets per year
Delivery Time :
20-60 Days after receiving the prepayment
Packaging Details :
1 x 40 HQ Standard Export Container
Name :
Tile adhesive machine
Workshop Area :
400-500m²
Atuomatic type :
Semi-auto
Control system :
Computer and PLC control
Installation service :
We send engineer to oversea for guiding installation
Function :
Mixing and packing dry mortars
Packing method :
Valve packing or open packing
Warranty :
12 months
Description

Semi Automatic Tile Adhesive Machine Wall Tile Grout Plant Computer Control

Tile Adhesive Machine Technical Parameters:

Parameter Name Production Line Model and Parameter
Name Unit ZMZS5000 ZMZS4500 ZMZS3000 ZMZS2000
Design Capacity TPH 80-85 55-60 35-40 20-25
Annual Capacity (300d/y*16h/d) TPY 400,000 300,000 200,000 100,000
Mixer Model / ZMDH5000 ZMDH4500 ZMDH3000 ZMDH2000
Mixer Volume m³ 5 4.5 3 2
Load Factor / 70% 70% 70% 70%
Mixer Power KW 90 75 55 45
Dryer Model / ZMST3275 ZMST3270 ZMST3265 ZMST2560
Dryer Capacity TPH 80-85 55-60 35-40 20-25
Dryer Power KW 4*11 4*7.5 4*7.5 2*11
Powder Silo Volume (Cement,Fly Ash etc) m³ 3*120 3*80 3*80 3*50
Sand Silo Volume m³ 3*140 3*140 3*140 3*80
Additive Silo Volume m³ 2*1.5 2*1.5 2*1.5 2*1.5
Sand Weighing Volume m³ 3 2 1.2 0.6
Sand Weighing Accuracy % ≤±1.5 ≤±1.5 ≤±1.5 ≤±1.5
Powder Weighing Volume m³ 1.5 1 0.8 0.4
Powder Weighing Accuracy % ≤±1 ≤±1 ≤±1 ≤±1
Production Line m 22*15*28 22*15*28 22*15*28 22*15*28
Overall Dimension
Total Installed Power KW 420 380 350 320

Detail configurations of Mind Automatic Tile Adhesive Machine:

1) Raw Material Storing System and bucket elevator conveyor system:
Store raw materials such as cement, fly ash, thickened powder, quartz powder or yellow sand.
2) Automatic Weighing System:
Accurate weighing according to recipe requirements, small error, self-measurement error and repair, high precision.
3) Dust collector: Dust removal effect is good, fan, cloth cylinder and filter combination as a whole, can shorten the wind network, simplify the process, reduce equipment investment.
4) Twin Shaft Agravic Mixer: High mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer.
5) Finished product hopper: to store the finished material and prepare for the packing work, the ribbon mixer is to protect the finished material from segregation during the second falling.
6) Packaging Machine: accurate weighing, stable performance and simple operation. Equipped with dust mouth, truly environmentally friendly production.
6) Automatic PLC Control System:
PLC control system with characters of High degree of intelligence, automatic control from the weighing of ingredients to the mixing, packaging and full control, easy to operate.

Semi Automatic Tile Adhesive Machine Wall Tile Grout Plant Computer Control
