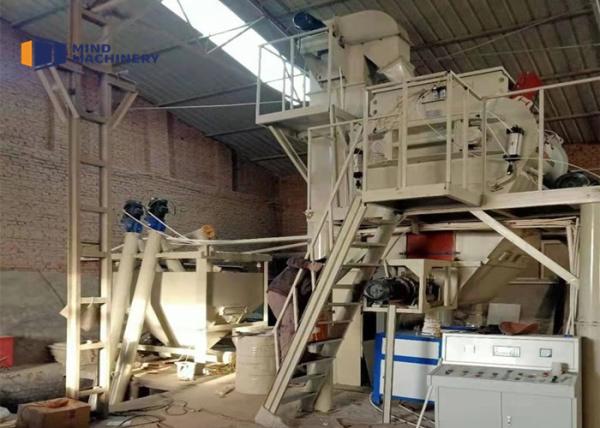

High Efficiency Tile Adhesive Machine , Compact Tile Glue Production Line

Parameters of 8 t/h Tile Adhesive Plant:

Descriptions of Tile Adhesive Machine:

1. In the construction industry, tile Adhesive is a general term related to mixture of cement and sand in different proportions along with water.
2. Tile adhesive is a kind of high-quality polymer modified adhesive based on cement. It has flexibility and quick-drying, suitable for thick and thin construction. Its special formula enables it to be applied to various types of substrates. on.
3. Its composition is cement, quartz sand and concentrated tackifier. Compared with the prior art, this adhesive has a wide range of construction, strong adhesion, easy construction, tiles and walls, and ground without water soaking before construction. The hardening time is long, and sufficient adjustment time is left for the construction personnel, so it has a good value for promotion and use.
4. This dry mortar plant can also be called an energy saving dry mortar mixing line, which can feed various materials in the container. Under the automatic control system, it can perform automation in the collection, feeding, filling and packing. It is a good choice to establish a dry mortar plant with a reasonable price and a quick refund.

Working Principles of Tile Glue Production Line:

1. Based on your formula and the mixture ratio, the raw material will be manually put into the bottom of the bucket elevator.
2. Through the transportation of the belt conveyor, the material will be conveyed to the biaxial agravic mixer, it can realize automatic feeding, mixing, storing and packaging.
3. The equipment adopts high-efficiency biaxial agravic mixer as its main mixing system. Requiring little investment and small area but with good efficiency, it shall be an ideal one for small and medium-sized company.
4. The dust collector can protect the working environment from the dust, and greatly better for worker's health.

Features:

1. The use of tower layout structure, shorten the transmission distance and increase production efficiency.
2. The screw conveyor is changed to bucket elevator, which increases production and speed, improves overall production efficiency.
3. Compared with fully automatic dry mortar plant, the semi-automatic dry mortar plant reducing automatic batching system, it requires less investment and small site area, suitable for the use of small and medium-sized enterprises with 6-8 tons per hour.
4. The use of a biaxial non-gravity mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
5. Equipped with a new electronic pulse dust removal system, it realized dust - free operation.

FAQ

1, How about the investment of this project?

A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.
Low capacity low cost, we will provide you cost effective solutions as your requirement.

2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?

A: (1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.
(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.
(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.

3, How many person required to operate this dry mortar plant?

A: Usually 2-4 workers are enogh to operate this dry mortar plant.

4, What equipment and services you can provide?

A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.
