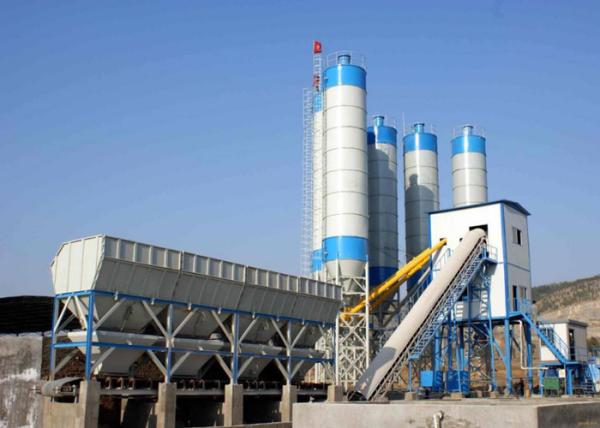

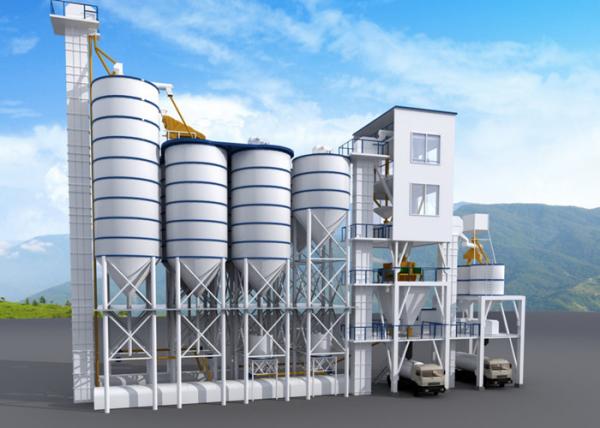

Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant
Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant
Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant
Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant
Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant
Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant
Specifications
Brand Name :
Mind
Model Number :
HZS-50
Certification :
CE,ISO 9001
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 Set Per Months
Delivery Time :
7-25 Working Days
Packaging Details :
standard packing of concrete batching plant for international transport
Condition :
New
Product name :
HZS50 Stationary Precast Concrete Batching Plant
Application :
Construction Projects,Engineering & Construction machinery
Power(w) :
80 KW
Capacity :
50m3/h
Cement silo :
50t/100t/150t.customized
Discharging height :
3.8-4.1 m
Mixer :
Concrete Mixer
Max. aggregate size(mm) :
80 mm
Warranty :
12 Months
After-sales service provided :
Engineers available to service machinery overseas
Description

Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant

Technical Parameters:

Model HZS50
Theoretical output(m³/h) 50
Mixer model JS1000
Output per batch(m³) 1
Aggregate batcher PLD1600
Total power(KW) 80
Aggregate weighing accuracy(%) (0-2500)kg±2%
cement weighing accuracy(%) (0-500)kg±1%
water weighing accuracy(%) (0-300)kg±1%
fly ash weighing accuracy(%) (0-300)kg±1%
additive weighing accuracy(%) (0-40)kg±1%
Discharge height(m) 3.8-4.1
Max. aggregate dia.(mm) 80
Cement silo and screw conveyor On request
Total weight (ton) 35
Overall dimension(LxWxH)(m) 20.5x7.5x19.4

Introduction:

1. HZS series Concrete Batching Plant on Sale is composed of feeding system,mixing system,electrical system and auxiliary equipents(such as air compressor,water pump etc.), fea-tured by high-precision computer control.
2. And aslo there are manual system,automatic head-drop compensation and aggregate moisture compensation.

Working Principles of Building Materials Batching Plant:

1. After the mixer control system is powered on, it enters the operation interface of man-machine dialogue, and the system performs initialization processing, including formula number, concrete level, slump, production volume, etc.


2. Detect each silo and weighing bucket according to the weighing, output empty or full signal, prompt the operator to determine whether to start the startup control program.


3. Start the sand and stone belt motor to feed the metering hopper; open the butterfly valve of fly ash and cement tank; start the screw machine motor to transport the fly ash and cement to the metering hopper; open the control valve of the water tank and admixture tank to make water And admixture into the measuring bucket.


4. After the measurement meets the set requirements, open the metering bucket door, and the ingredients enter the activated mixer to mix and mix. Open the mixer door at the set time, and the concrete enters the mixing truck that has been charged.

Certifications:

Since it has established, our company has paid great attention to the improvement of its own quality. In recent years, the company has made breakthroughs in market access and qualification certification, providing consumers with excellent product quality.

Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant

FAQ:

Q1. What is the function of the concrete mixing plant?

A. It is used to produce all kinds of concrete to meet the building work ofbuildings bndges dock,airport, railway,etc

Q2. How to choose the suitable modelof mixing plant?

A. Just tell us the capacity (t/h) of concrete you want to produce per hour or per month.

Q3. What payment terms you accept?

A. Usually the world most common used TT,L/C Westem Union elc

Q4. What is the delivery time?

A. 15-30 days after receiving advance payment

O5. How many engneers do you have in your pfessional team to guide?

A. We have more than 60 engineers.

Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant

Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant

Concrete Batching Plant Vertical Skip Type Batch Building Material Mix Plant
