PF Type Mining Sand Crusher Machine Double Toggle Jaw Crusher 400 X 600
PF Type Mining Sand Crusher Machine Double Toggle Jaw Crusher 400 X 600
PF Type Mining Sand Crusher Machine Double Toggle Jaw Crusher 400 X 600
PF Type Mining Sand Crusher Machine Double Toggle Jaw Crusher 400 X 600
Specifications
Brand Name :
Mind
Certification :
CE ISO 9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 Set/Sets per Month
Delivery Time :
7-25 working days
Packaging Details :
Standard package in wooden boxes or containers
Name :
Hammer Mill
Capacity :
10-25 t/h
Power :
18.5 kw
Input Size :
<120 mm
Dimension :
600*400 mm
Output size :
<15 mm
Weight :
1.5 t
Application :
Mining, Building, Sand Making, Quarry, etc.
Description

PF Type Mining Sand Crusher Machine Double Toggle Jaw Crusher 400 X 600

1. Gravel Crushing Equipment:

Vibrating Feeder->Jaw Crusher->Impact Crusher->Vibrating Screen->VSI Crusher

2. Gravel crushing process:

1) Feeding: The material is loaded into the vibrating feeder by the forklift, and the gravel is evenly conveyed into the crusher by the vibrating feeder.
2) Crushing: the stone is crushed by a jaw crusher, and the impact crusher is crushed and then transferred into the vibrating screen.
3) Screening: After the sieve is sieved out of the gravel of 40mm or less, it is sent into the sand making machine, and more than 40mm is re-crushed.
4) Sand making: gravel below 40mm is broken into sand in sand making machine

3. Gravel Crushing Process Flow Chart:

PF Type Mining Sand Crusher Machine Double Toggle Jaw Crusher 400 X 600

4. Introduction to Gravel:

Broken small rock, its size, shape, and texture are irregular. It may be caused by natural causes or by artificial destruction.


5. Gravel Application Range:

Mining, building materials, water conservancy, transportation, chemicals, etc.

PF Type Mining Sand Crusher Machine Double Toggle Jaw Crusher 400 X 600

6. Gravel Related Crushing Processing Equipment Parameters:

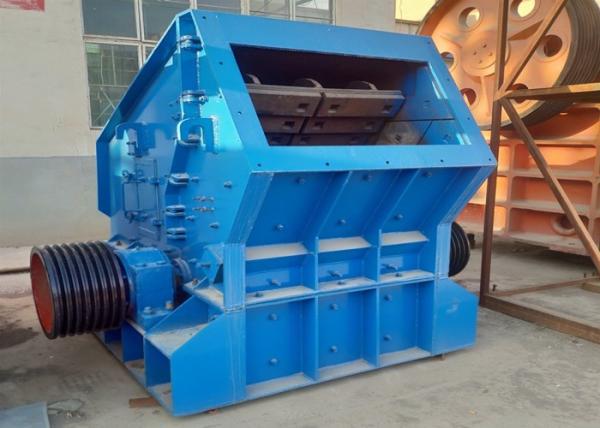

Impact crusher parameter

Model Size (mm) Inlet Size (mm) Max. Inlet Length (mm) Capacity (t/h) Power (kw)
PF-0807 850*700 400*730 300 15-30 30-45
PF-1008 1000*800 400*830 300 30-50 37-55
PF-1010 1000*1050 400*1080 350 50-80 55-75
PF-1210 1250*1050 400*1080 350 70-120 110-132
PF-1214 1250*1400 400*1430 400 130-180 160-200
PF-1315 1320*1500 860*1520 500 160-250 180-260

PF Type Mining Sand Crusher Machine Double Toggle Jaw Crusher 400 X 600


Jaw Crusher Parameter:

Model

Inlet Size

(mm)

Feed size

(mm)

 Adjustable Range

Capacity

(t/h)

Speed

(r/min)

Power

(kw)
PE-150*250 150*250 125 10-40 0.6--3 300 5.5
PE-250*400 250*400 210 20-60 3--13 300 15
PE-400*600 400*600 340 40-100 10--34 275 30
PE-500*750 500*750 425 50-100 20--52 275 55
PE-600*750 600*750 500 150-200 50--100 275 55
PE-600*900 600*900 500 65-160 30--75 250 55-75
PE-750*1060 750*1060 630 80-140 72--130 250 110
PE-800*1060 800*1060 640 100-200 85--143 250 110
PE-900*1060 900*1060 685 230-290 100--250 250 110
PE-900*1200 900*1200 750 95-165 87--164 200 110
PE-1000*1200 1000*1200 850 195-265 197--214 200 110
PE-1200*1500 1200*1500 1020 150-300 250--500 180 160
PEX-150*750 150*750 120 18-48 5--16 320 15
PEX-250*750 250*750 210 25-60 8--22 330 22
PEX-250*1000 250*1000 210 25-60 10--32 330 30-37
PEX-250*1200 250*1200 210 25-60 13--38 330 37

PF Type Mining Sand Crusher Machine Double Toggle Jaw Crusher 400 X 600
