Heavy Marble Iron Ore Crusher Plant Hammer Rock Crusher Production Line
Heavy Marble Iron Ore Crusher Plant Hammer Rock Crusher Production Line
Heavy Marble Iron Ore Crusher Plant Hammer Rock Crusher Production Line
Heavy Marble Iron Ore Crusher Plant Hammer Rock Crusher Production Line
Specifications
Brand Name :
Mind
Model Number :
PC1312
Certification :
ISO, CE
Place of Origin :
Henan, China
MOQ :
One Set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200 set/sets per Month
Delivery Time :
7-20 Working Days
Packaging Details :
1. Plastic Films + 2. Wooden Case
Use :
Marble,Solid Surface,Granite,construction material,stone
Voltage :
3 phase 380V,380V-415V
Type :
General,Mobile Crusher,Stone Cutting Machine
Motor type :
AC Motor
Installation :
under engineer's guide,Foundation Drawing
Test&installation :
Senior Professional Engineers Assigned
Function :
Stone Engraving Carving Cutting,Marble cutting machine,Stone crushing plant
Power(w) :
37-630KW
Description

Heavy Marble Iron Ore Crusher Plant Hammer Rock Crusher Production Line

Technical Parameters of Heavy Hammer Crusher:

Model Input size Output size Capacity Power Weight
(mm) (mm) (t/h) (kw) (t)
PC400*300 <100 <10 5--10 11 0.8
PC600*400 <120 <15 10--25 18.5 1.5
PC800*600 <120 <15 20-35 55 3.1
PC1000*800 <200 <13 20-40 110 7.9
PC1000*1000 <200 <15 30-80 132 8.65
PC1300*1200 <250 <19 80-200 240 13.6

Descriptions of PC 1312 Hammer Crusher:

Stone hammer crusher is a new type sand making equipment in combination with national mechanism sand standard, users' requirement and recognition of the sand,it is suitable for low investment,short-term high efficiency and other type customers.

Stone hammer crusher is mainly suitable for artificial sand industry,and rock crushing with not too high hardness,can also be used for secondary crushing in mining,chemical industry,etc.

Features of Rock Crushing Line:

1. Small cubic measurement , large reduction ration , low energy consumption;
2. Even size. Little exceedingly-crushing powder;
3. Wear resistant hammer heads,longer serice life,high capacity and easy adjusting of discharging grid plate;
4. The crushing cavity is deep and no dead area, these structure improve thethroughput;
5. Rotating part with thermal refined structure by CNC, make the rotating part higher toughness.

Working Principles of Iron Ore Production Line:

The motor drives the rotor rotates of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.

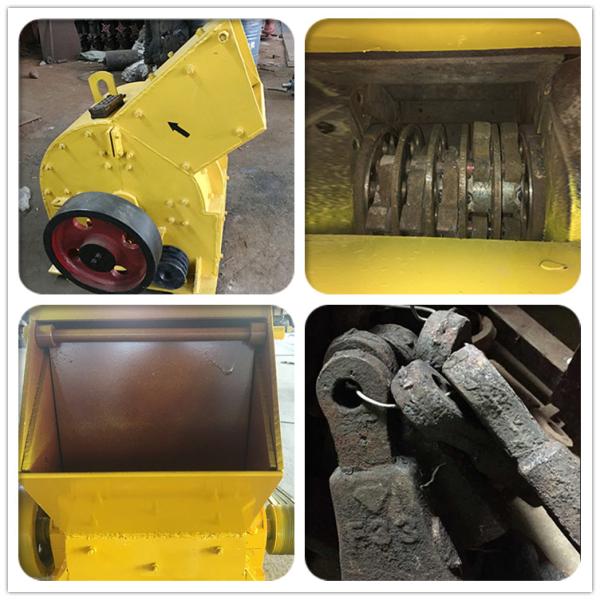

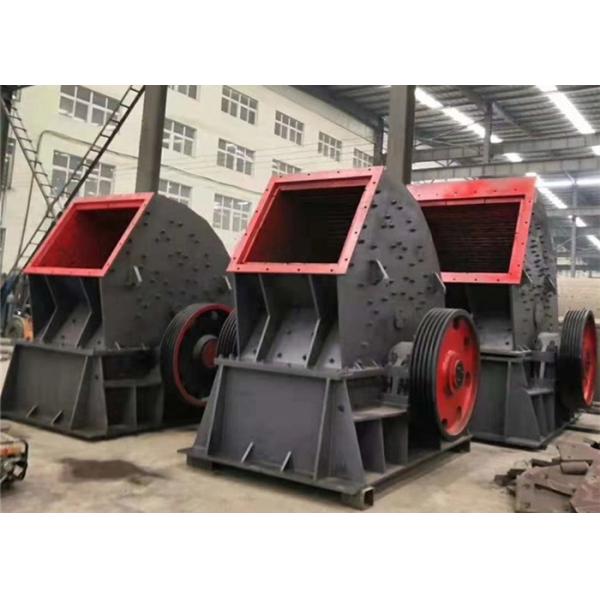

Detailed Images:

Heavy Marble Iron Ore Crusher Plant Hammer Rock Crusher Production Line

Heavy Marble Iron Ore Crusher Plant Hammer Rock Crusher Production Line
