Double Rotor Stone Crushing Equipment Energy Efficient For Limestone Gravel
Double Rotor Stone Crushing Equipment Energy Efficient For Limestone Gravel
Double Rotor Stone Crushing Equipment Energy Efficient For Limestone Gravel
Double Rotor Stone Crushing Equipment Energy Efficient For Limestone Gravel
Specifications
Brand Name :
Mind
Certification :
CE ISO 9001 BV
Place of Origin :
China(Mainland)
MOQ :
1 set/sets
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
200 Sets per Month
Delivery Time :
7-25 Working Days
Packaging Details :
Standard Export box
Condition :
New
Color :
Iron Grey,Blue,as your demand
Use :
Marble,Solid Surface,Granite,construction material,stone
Voltage :
380V/50Hz,3 phase 380V,380V-415V
Motor type :
AC Motor
Test&installation :
Senior Professional Engineers Assigned
Function :
Stone Engraving Carving Cutting,Marble cutting machine,Stone crushing plant
Power(w) :
37-630KW
Description

Double Rotor Stone Crushing Equipment Energy Efficient For Limestone Gravel

1. Gravel Crushing Equipment:

Vibrating Feeder->Jaw Crusher->Impact Crusher->Vibrating Screen->VSI Crusher

2. Gravel crushing process:

1) Feeding: The material is loaded into the vibrating feeder by the forklift, and the gravel is evenly conveyed into the crusher by the vibrating feeder.
2) Crushing: the stone is crushed by a jaw crusher, and the impact crusher is crushed and then transferred into the vibrating screen.
3) Screening: After the sieve is sieved out of the gravel of 40mm or less, it is sent into the sand making machine, and more than 40mm is re-crushed.
4) Sand making: gravel below 40mm is broken into sand in sand making machine

3. Gravel Crushing Process Flow Chart:

Double Rotor Stone Crushing Equipment Energy Efficient For Limestone Gravel

4. Introduction to Gravel:

Broken small rock, its size, shape, and texture are irregular. It may be caused by natural causes or by artificial destruction.


5. Gravel Application Range:

Mining, building materials, water conservancy, transportation, chemicals, etc.

Double Rotor Stone Crushing Equipment Energy Efficient For Limestone Gravel

6. Gravel Related Crushing Processing Equipment Parameters:

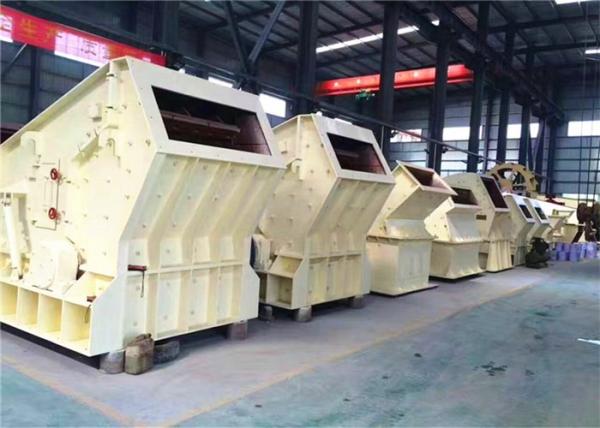

Impact crusher parameter

Model Size (mm) Inlet Size (mm) Max. Inlet Length (mm) Capacity (t/h) Power (kw)
PF-0807 850*700 400*730 300 15-30 30-45
PF-1008 1000*800 400*830 300 30-50 37-55
PF-1010 1000*1050 400*1080 350 50-80 55-75
PF-1210 1250*1050 400*1080 350 70-120 110-132
PF-1214 1250*1400 400*1430 400 130-180 160-200
PF-1315 1320*1500 860*1520 500 160-250 180-260

Double Rotor Stone Crushing Equipment Energy Efficient For Limestone Gravel


Jaw Crusher Parameter:

Model

Inlet Size

(mm)

Feed size

(mm)

 Adjustable Range

Capacity

(t/h)

Speed

(r/min)

Power

(kw)
PE-150*250 150*250 125 10-40 0.6--3 300 5.5
PE-250*400 250*400 210 20-60 3--13 300 15
PE-400*600 400*600 340 40-100 10--34 275 30
PE-500*750 500*750 425 50-100 20--52 275 55
PE-600*750 600*750 500 150-200 50--100 275 55
PE-600*900 600*900 500 65-160 30--75 250 55-75
PE-750*1060 750*1060 630 80-140 72--130 250 110
PE-800*1060 800*1060 640 100-200 85--143 250 110
PE-900*1060 900*1060 685 230-290 100--250 250 110
PE-900*1200 900*1200 750 95-165 87--164 200 110
PE-1000*1200 1000*1200 850 195-265 197--214 200 110
PE-1200*1500 1200*1500 1020 150-300 250--500 180 160
PEX-150*750 150*750 120 18-48 5--16 320 15
PEX-250*750 250*750 210 25-60 8--22 330 22
PEX-250*1000 250*1000 210 25-60 10--32 330 30-37
PEX-250*1200 250*1200 210 25-60 13--38 330 37

Double Rotor Stone Crushing Equipment Energy Efficient For Limestone Gravel
