Three Phase Dry Mix Mortar Plant Cement Mixed Machine Slab Laying Mortar Mix Station
Three Phase Dry Mix Mortar Plant Cement Mixed Machine Slab Laying Mortar Mix Station
Three Phase Dry Mix Mortar Plant Cement Mixed Machine Slab Laying Mortar Mix Station
Three Phase Dry Mix Mortar Plant Cement Mixed Machine Slab Laying Mortar Mix Station
Specifications
Brand Name :
Mind
Model Number :
Mind 1-5 T/H
Certification :
ISO 9001, CE
Place of Origin :
Henan, China
MOQ :
One Set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 Set per Month
Delivery Time :
7-15 Working Days
Packaging Details :
Plastic Films + Standard Wooden Case
Model :
1-3 t/h Dry Mix Plant
Voltage :
380 v 50 hz Three phase
Power :
20-30 kw
Capacity :
2-5 T/h
Dimension(l*w*h) :
2000*1200*2350mm Dry Mortar Plant
Application :
Tile Adhesive Plant,Building material,sand/cement/paint
Features :
Simple Dry Powder Mixing Plant
After-sales service provided :
Engineers available to service machinery overseas
Description

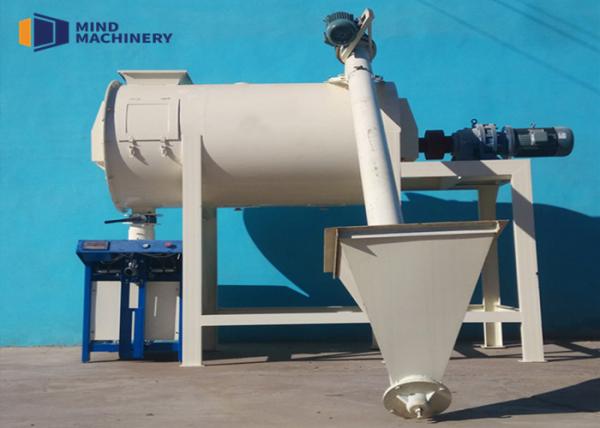

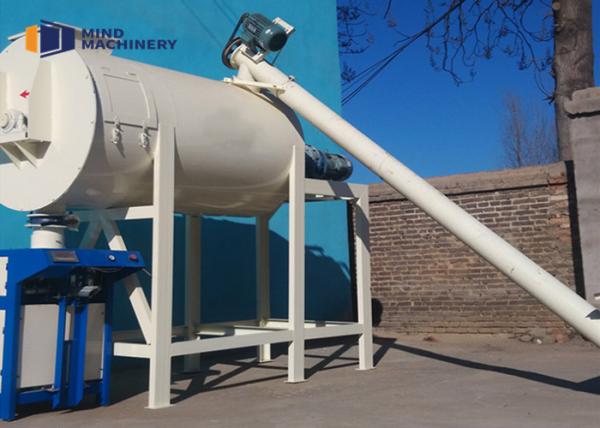

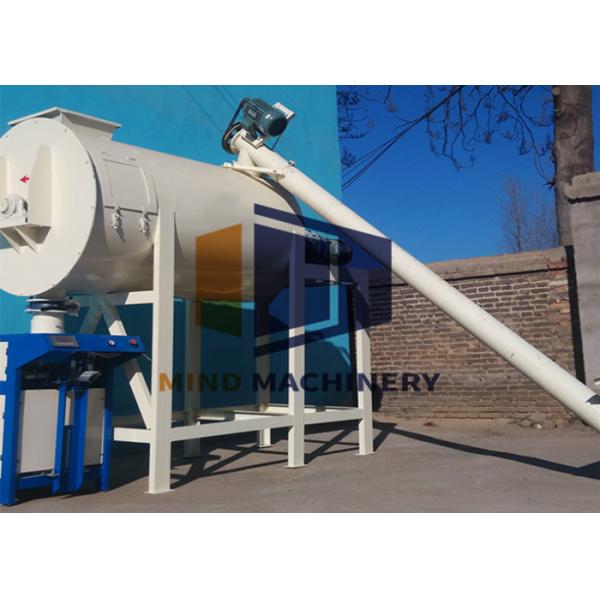

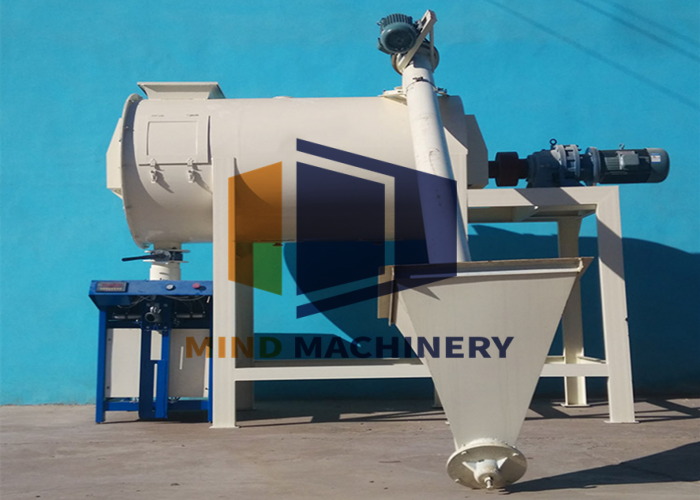

Three Phase Dry Mix Mortar Plant Cement Mixed Machine Slab Laying Mortar Mix Station

Product Descriptions of Cement Mortar Plant:

1. The dry mortar mixer adopts a horizontal spiral structure to make the material up and down and staggered to achieve the purpose of mixing the material quickly and evenly.
2. The dry mortar equipment has the characteristics of simple structure, convenient use, small floor space, light weight, low noise, energy saving, convenient loading and unloading, durability, and easy maintenance.
3. Residual materials are easy to remove, which is beneficial for multi-purpose use (such as: production of dry powder putty of multiple colors).

Structures of Dry Mix Plant:

Model Capacity(t/h) Total Power Hight Manpower Mixer Volume Occupied Area
simple dry mortar plant 1--5 20-30 kw 3-4m 2-3 workers 2 m3 20 m2

Main Configurations:

1. Material hoister: for lifting material to mixer.
2. The second hoister: for lifting materials to pre-mix silo
3. The horizontal multi-ribbon mixer: for uniform mixing of material.
finished product silo: Storing finished material for automatic weighing and package.
4. Automatic packer: with automatic weighing for packing finished product.

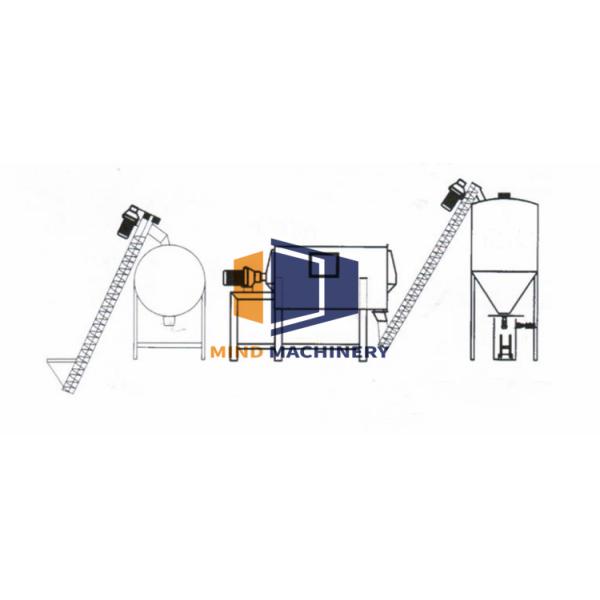

Working Flows of Mortar Mix Station:

Raw materials→Bucket Elevator →Biaxial Agravic Mixer→Pneumatically Gate→Finished Product Warehouse→Packaging Machine (finished product)

Three Phase Dry Mix Mortar Plant Cement Mixed Machine Slab Laying Mortar Mix Station

Three Phase Dry Mix Mortar Plant Cement Mixed Machine Slab Laying Mortar Mix Station

Three Phase Dry Mix Mortar Plant Cement Mixed Machine Slab Laying Mortar Mix Station
