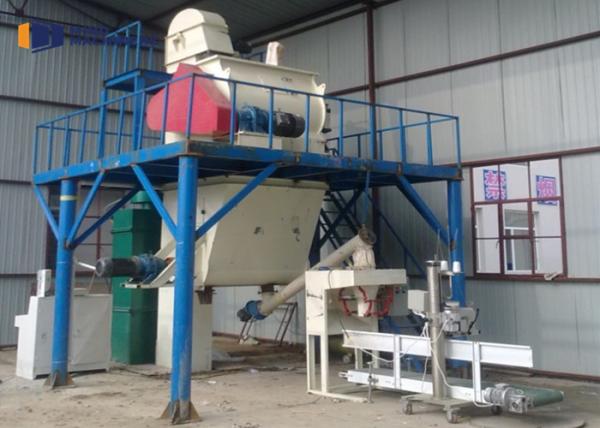

Dry Cement Sand Concrete Mixing Plant Flexible Mortar Fiber Mesh Production Line
Dry Cement Sand Concrete Mixing Plant Flexible Mortar Fiber Mesh Production Line
Dry Cement Sand Concrete Mixing Plant Flexible Mortar Fiber Mesh Production Line
Dry Cement Sand Concrete Mixing Plant Flexible Mortar Fiber Mesh Production Line
Specifications
Brand Name :
Mind
Model Number :
6-10 t/h
Certification :
ISO 9001:2008
Place of Origin :
Henan, China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, D/A
Supply Ability :
50 units per Month
Delivery Time :
7-20 Working Days
Packaging Details :
1. Plastic Films + 2. Wooden Case
Condition :
New
Application :
Dry Mortar Mixing,Dry Mortar Production Line,Automatic Dry Mortar Plant,building materials,For the production of ordinary or special mortor
Voltage :
Customized 220V/380V/415V
Features :
dry powder mixer machine,Durability,full automatic tile adhesive premix
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation
Name :
dry mortar production line,Dry mortar equipment,putty mix mortar production line
Raw material :
Additives,Cement,Flyash,Sand,Sand Cement Glue Mortar
Capacity :
10-15 T/H
Description

Dry Cement Sand Concrete Mixing Plant Flexible Mortar Fiber Mesh Production Line

Specifications of Fiber Mortar Mesh Plant:

Model Output Equipment height Occupy area Man power Batching and packing
Simple type 3T/H 3-4m 20m2 2-3 person Manual batching
Automatic packing
Improved simple type 4-5T/H 3-4m 20m2 2-3 person Manual batching
Automatic packing
Semi-automatic type 6-8T/H 6-8m 40-50m2 3-4 person Automatic batching
Automatic packing
Automatic type 10-30T/H 8-12m 80-100m2 3-4 person Atuomatic batching
Automatic packing


Product Descriptions of Dry Mortar Production Line:

1. Semi automatic dry mortar plant also called energy-saving dry mortar mixing line.
2. It steel platform design in modular structure has great advantages in transportation and easy installation, saving labor cost. This semi-auto dry mortar plant can realize fast installation.
3. Besides, It can feed various materials into the bin. It can realize automation in collecting, feeding, filling and packing with the automatic control system.
4. It is a perfect choice for set up a dry mortar factory with reasonable price and quick refund.

Working Principles of Cement Sand Mixing Plant:

1. The raw material is put into the feed hooper according to mixture ratio.
2. Through the action of control system, the equipment can realize automatic feeding, automatic mixing and automatic rationing and packaging.
3. The equipment adopts high-efficiency biaxial agravic mixer as its main mixing system. Requiring little investment and small area and with good efficiency, it shall be an ideal one for small and medium-sized company.

Features of Flexible Mortar Line:

1.The use of tower layout structure, shorten the transmission distance and increase production efficiency.
2.The screw conveyor is changed to bucket elevator, which increases production and speed, improves overall production efficiency.
3. Compared with fully automatic dry mortar plant, the semi-automatic dry mortar plant reducing automatic batching system, it requires less investment and small site area, suitable for the use of small and medium-sized enterprises with 6-8 tons per hour.
4. The use of a biaxial non-gravity mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
5. Equipped with a new electronic pulse dust removal system, it realized dust - free operation.
