75 KW Base Coat Mortar Production Line for EPS XPS Board / Fiber Glass Mesh
75 KW Base Coat Mortar Production Line for EPS XPS Board / Fiber Glass Mesh
75 KW Base Coat Mortar Production Line for EPS XPS Board / Fiber Glass Mesh
75 KW Base Coat Mortar Production Line for EPS XPS Board / Fiber Glass Mesh
Specifications
Brand Name :
Mind
Certification :
CE
Place of Origin :
Henan, China
MOQ :
One Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 Sets per Month
Delivery Time :
7-20 Working Days
Packaging Details :
Big size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.
Name :
premix dry mortar production line
Power :
75 kw
Floor area :
90 m2
Total Height :
8.5 m
Packaging :
Valve Packer 25kg/bag
Production Worker :
3-5 worker
Daily output :
>120 t/day
Batching and weighting :
Manual and Auto
Description

75 KW Base Coat Mortar Production Line for EPS XPS Board / Fiber Glass Mesh

Parameters of Base Coat Mortar Production Line:

Output capacity 10-30t/h
Floor Area 150m2
Total Power 75kw
Operators 3-4 persons
Height 8.5m
Warranty 12 months
Operation Mode Full automatic
Main Material Batching and Weighing Automatic&manual
Packaging System 25kg, ton bag, bulk packaging
Installation and Debugging Engineers available working abroad
Application Drymix mortar and putty powder
Investment Scale Small and middle business

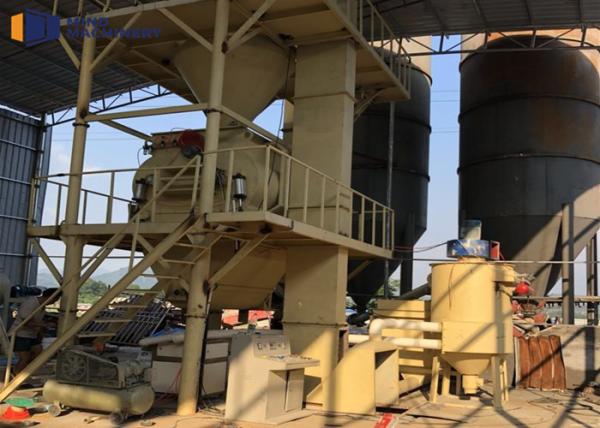

The dry mortar production line consists of:

1. Storage silos and bucket elevator Store raw materials such as cement, fly ash, thickened powder, quartz powder or yellow sand. Our company's raw material warehouse cone parts pneumatic break arch device, can effectively prevent cement, fly ash knot arch. Ensure smooth measurement of spiral ingredients.
2. Screw conveyor Screw conveyor is a kind of continuous conveying equipment. The screw conveyor of our company has the characteristics of simple structure, small cross-sectional area, convenient closing and conveying, and easy operation.
3. Weighting hopper Accurate weighing according to recipe requirements, small error, self-measurement error and repair, high precision.
4. Pre-mix hopper It used to store one batch material where various formulation materials and additives are gathered together at a certain ratio by other equipment, is prepared for the next step of mixing.
5. High effciency Twin-shift agravic mixer High mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer.
6. Finished product line To store the finished material and prepare for the packing work, the ribbon mixer is to protect the finished material from segregation during the second falling.
7. Automatic weighting and packing machine The use of computerized metering devices provides accurate weighing, stable performance and simple operation. And equipped with dust mouth, truly environmentally friendly production.
8. Impulse dust collector Bag pulse dust removal and centrifugal cyclone dust removal, dust removal effect is good, fan, cloth cylinder and filter combination as a whole, can shorten the wind network, simplify the process, reduce equipment investment.
9. PLC control system PLC control system with characters of High degree of intelligence, automatic control from the weighing of ingredients to the mixing, packaging and full control, easy to operate.
10. Air compressor Supply the air for the high effciency twin-shift agravic mixer, Impulse dust collector and automatic valve packing machine.

Features of :

1. Mixing system: with 60~180s blending, materials are mixed evenl
2. Drying system: equipped with Triple-cylinder dryer to reduce the sand water content to ≤0.5%
3. Depending on different raw materials and formulas, weighing device adopt independent system to improve the weighing accuracy greatly
4. Equipped with dust collection system to collect dust from drying system, weighing system, mixing system and bag packing system, it is efficiently protects the working and living environment
5. Full Automatic control system, convenient for operation and management

Sand Making System

◆ Large capacity and high output------VSI sand-making machine has a 30% increase in output and stable operation compared with traditional equipment under the same power.


◆ Excellent grain shape-----cube shape, good grain shape, reasonable gradation, adjustable fineness modulus; especially suitable for artificial sand making and stone shaping, practice has proved that compared with other traditional equipment sand making, the shaping effect is increased by 30%;


◆ Pay attention to environmental protection-----sand making equipment work noise is small, no pollution. The unique air self-circulation system greatly reduces the exhaust air volume, reduces the dust, and is conducive to environmental protection.
