Specifications
Brand Name :
Mind
Model Number :
30 T
Certification :
CE,ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Set per Month
Delivery Time :
15-20 Working days
Packaging Details :
1)FCL:20''GP,40''HQ standard exporting container 2)LCL,Flat Rack container: Poly wood case Wire cables are used for fastening the machine on the trailer or inside the container. Cork wood are placed in front or behind the machine to protect it. Plastic
Material :
Galvanized steel plate,Galvanized steel sheets with 275g/m2 zinc coating
Weight :
1.8 t
Capacity :
30T
Application :
Farming Industry,Construction Materials,Construction project,food industry
Discharging height (m) :
≥1.5 m
Warranty :
1 Year
Landing leg height (m) :
≥4.1 m
Diameter :
2.5 m
After-sales service provided :
Video technical support,commissioning and training
Tank Height (m) :
4.8 m
Cone Height :
2.6 m
Silo materials :
Hot Galvanized Steel
Total Height :
8.5 m
Description

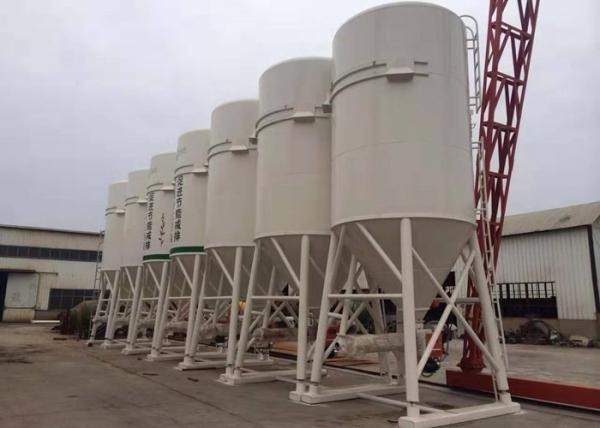

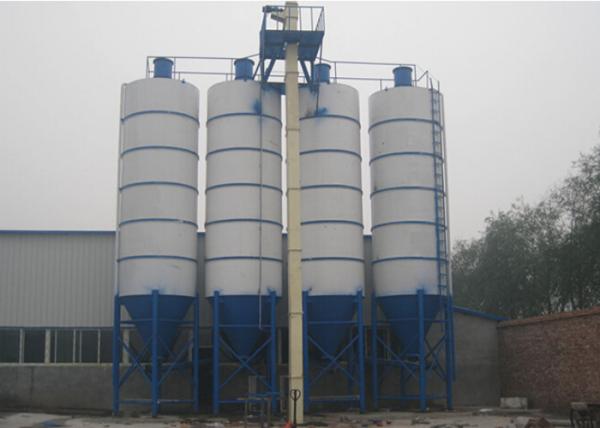

Galvanized Steel Cement Storage Silo Cement Concrete Storage Tank 30T - 150T

Introduction of Storage Silos:

1. The Top selling products grain storage silo 30T-150T cement silos with good quality cost is usually used with concrete batching plant to store bulk cement.
2. It is a main part of concrete mixing plant. Except cement,it can also store bulk material, like fly ash, fine ore, dry mortar, etc. It is featured by rain and dampness resistant, and easy to use, etc.
3. Our 30 ton Silo For Export Market, detachable cement silos which are manufactured in different capacities, provide great advantages especially in transportation.

Specifications of Grain Storage Silo:

Tank Height (m) 4.8 (m)
Diameter (m) 2.5 (m)
Section quantity 3
Each section is divided into three pieces, the height of each section is 1.5 meters.
Top Cover Top cover is divided into two pieces
Cone Height (m) 2.6 (m)
Pieces Cone is divided into 5 pieces
Discharging Discharging height (m) ≥1.5 (m)
Landing leg height (m) ≥4.1 (m)
Landing leg height depend on discharging height
Weight (t) 1.8 (t)
Other parts Arch breaker Pneumatic arch breaker
Pneumatic Valve DN300
Dust collector Dust collector

Features of Cement Silo:

1. Different types have different capacities:30T, 50T, 80T, 100T, 150T, 120T, 200T, 300T, etc.

2. Customized sizing and layout to specific requirement Sub-structure, easy transportation, installation fast, level display, with positive and negative regulator,Green filter.

3. Put in bulk powder (cement or fly ash), waterproof and moisture, easy to use and reduce costs , the top of cement silo with green filter, used to reduce dust leakage.

4. Equipped with a safety valve at the top of cement silo, cement silo used to balance the pressure difference between inside and outside.

Six reasons for choosing our Galvanized Steel Grain Storage Silo Tank 30T-150T Cement Silos:

1. The Top selling products grain storage silo 30T-150T cement silos with good quality have been exported to more than 20 countries,believe that we have certain experience to provide the best service for you.

2. According to customer requirements,flexible customization.

3. Environmental protection,energy conservation,reliablity,high efficiency.

4. The technical presonal will be send abroad for installation,commissioning and training work.

5. After receiving the order,shipment in 10-15 working days.

6. Best quality with best price,your best choice.

Galvanized Steel Cement Storage Silo Cement Concrete Storage Tank 30T - 150T

Galvanized Steel Cement Storage Silo Cement Concrete Storage Tank 30T - 150T

Galvanized Steel Cement Storage Silo Cement Concrete Storage Tank 30T - 150T
