GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing
GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing
GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing
GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing
GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing
GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing
GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing
GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing
Specifications
Brand Name :
suli
Model Number :
GMP
Certification :
ISO9001
Place of Origin :
china
MOQ :
20 set
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
According to customer requirements
Usage :
Medicinal Drying
Type :
Oven
Material :
sus304, carbon steel, 316l
Control System :
PLC+HMI
Description

Product Description:
◎Heating sources include steam, electricity, and electric steam dual-use.
◎Using temperature: steam heating 50-140℃, highest 150℃; electric heating 50-350℃;
◎The temperature is automatically controlled and recorded by a recorder;
◎The inner wall of the box is fully welded, and each transition point adopts arc transition without dead angles.
◎The whole machine has good sealing performance, and the unique guide rail sealing device ensures the sealing performance of the whole machine;
◎The air inlet is equipped with a high-efficiency air filter; the dehumidification port is equipped with a medium-efficiency air filter.
◎The double doors of the double-door oven are mechanically interlocked;
◎All parts in the oven can be quickly disassembled and installed for easy cleaning;
◎The control system is equipped with a text display and a touch screen to choose from;
◎The whole machine meets the "GMP" requirements.

Technical specification:

Model/Specification

Drying amount

each time
(kg)

 Fan power
(kw)		 Consumption of steam
(kg/h)		 Drying car
(Vehicle)		 baking tray
(Only)		 Width×Length×Height
(mm)

upper and

lower temperature
(℃)
GMP-O 35 0.45 8 / 16 1130×1100×1750 ±2
GMP-I 120 0.45 18 2 48 2300×1200×2000 ±2
GMP-II 240 0.9 36 4 96 2300×2200×2000 ±2
GMP-III 360 1.35 54 6 144 3430×2200×2000 ±2
GMP-IV 480 1.8 72 8 192 4460×2200×2290 ±2

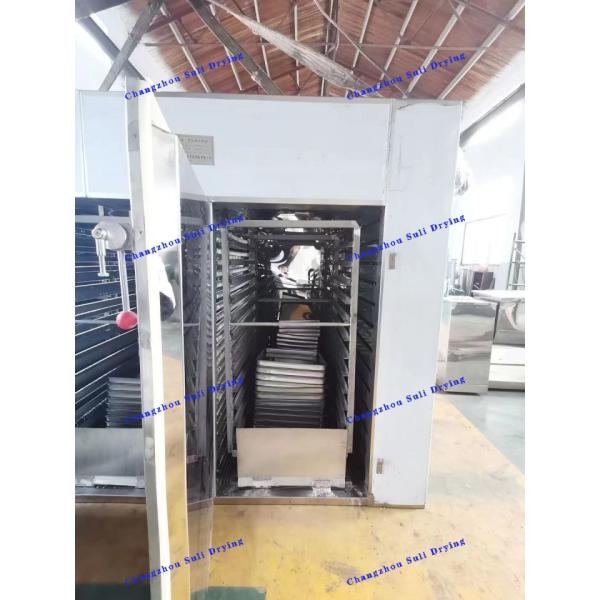

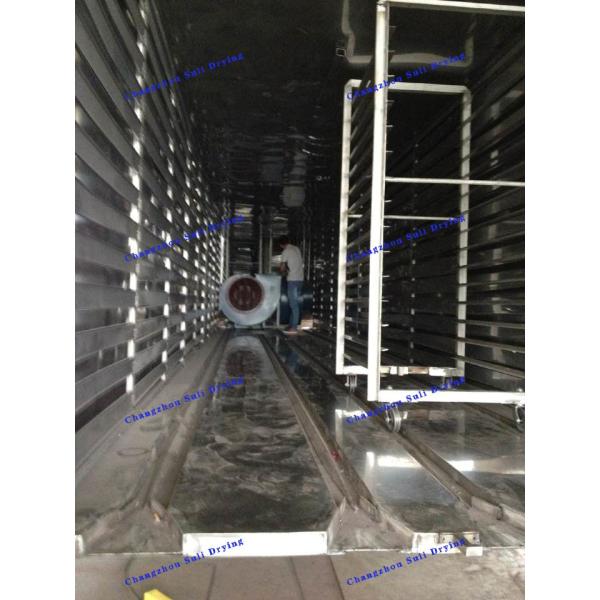

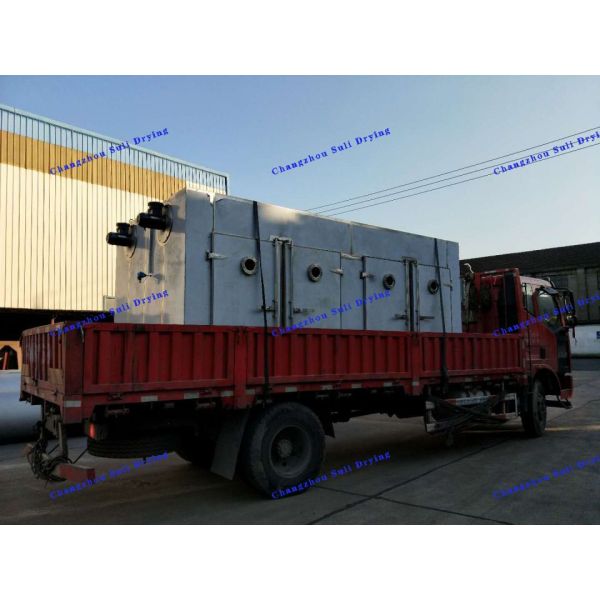

Picture:

GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing

GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing

GMP Type Steam Fully Welded Inner Wall Medicinal Oven Good Sealing
