Spray dryer: the secret weapon of the laboratory

Product introduction:

Spray dryer sounds a bit high-end, but it is actually a treasure in the laboratory. Whether it is a university, a research institute or a food,

pharmaceutical and chemical enterprise, as long as you need to produce trace particle powder, it can help you get it done.

Moreover, it has a wide range of applicability to solutions, from emulsions to suspensions.

The best thing is that it is particularly suitable for drying heat-sensitive substances, such as biological products, biological drugs,

enzyme preparations, etc. Because the spray drying process is only heated for a moment, it can well maintain the activity of these active materials.

Main features:

Easy operation: This machine is equipped with a large color touch screen, which is very intuitive to operate and has a memory function, which saves a lot of trouble.

Fully automatic control: One-button start-up, after setting the spray process parameters, the temperature reaches the preset temperature,

and the peristaltic pump will automatically start. The touch screen will also display the running animation, and the whole process can be seen clearly.

Manual control: If the process parameters need to be adjusted during the experiment, you can adjust them manually, and the color touch screen

will dynamically display (animation) the whole process, which is very convenient.

Shutdown protection: When shutting down, just press the stop button, and the machine will stop running immediately except for the fan,

ensuring that the equipment will not burn out due to misoperation.

Material selection: The spray, drying and collection systems are made of 304 stainless steel. Experiments are conducted in

a pollution-free and stable environment, making it easier for researchers to control the experimental process and results. All stainless steel components

are easy to disassemble and clean.

Oil-free air compressor: The built-in oil-free air compressor has a normal distribution of powder particle size, very good fluidity,

and very low noise, less than 60db, which meets the laboratory noise standard (optional centrifugal atomization).

Compact design: The atomization structure of the two-fluid spray, the whole machine is made of stainless steel material, compact design,

no auxiliary equipment required, easy to use, and long-lasting. (Optional centrifugal atomization)

PID constant temperature control: In order to meet the user's requirements for adjusting various parameters

within the experimental range, the drying temperature control adopts real-time PID constant temperature control t

echnology to make the temperature control of the entire temperature zone accurate, and the heating temperature control accuracy is ±1℃.

Inlet filter: In order to keep the sample pure, an inlet filter is equipped.

Feeding amount adjustment: The feeding amount can be adjusted at will through the feeding peristaltic pump, and the magnetic stirrer is optional.

Uniform particle size: The particle size of the finished dry powder after drying is relatively uniform, and more than 95%

of the dry powder is in the same particle size range.

Nozzle cleaner: The small spray dryer is equipped with a nozzle cleaner (needle) for sticky materials.

When the nozzle is blocked, it will be automatically cleared, and the frequency of the needle can be automatically adjusted.

Technical parameters:

Model: BA-GZJ3L, BA-GZJ5L, BA-GZJ10L

Processing capacity: 50-3000ml/H, 50-5000ml/H, 50-10000ml/H

In general, the spray dryer is really a multi-functional assistant in the laboratory. Whether it is drug research and development,

food processing or any other occasion where dry powder is needed, it can help you easily get it done. Hurry up and get one!

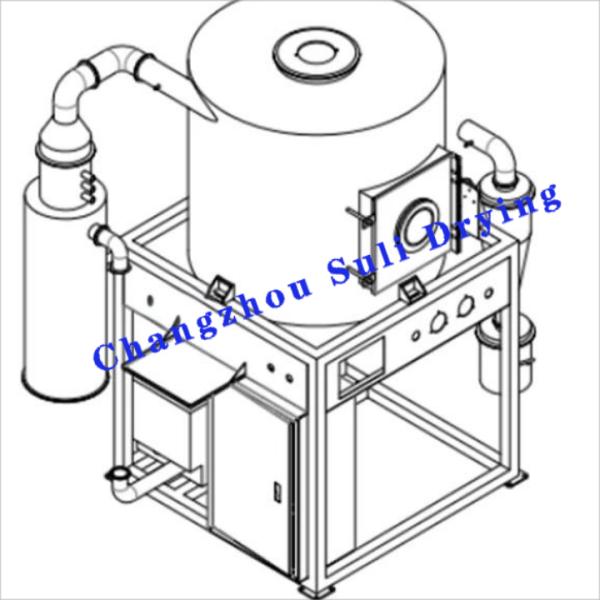

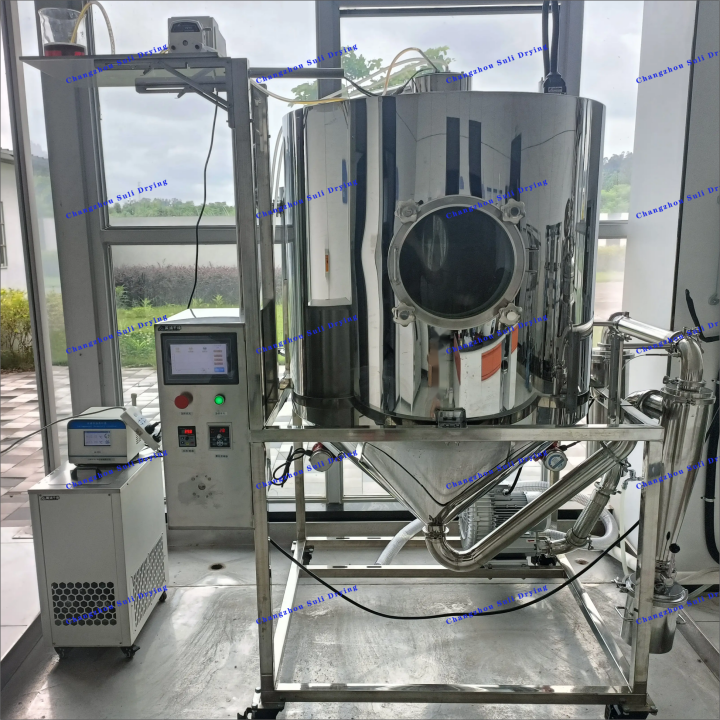

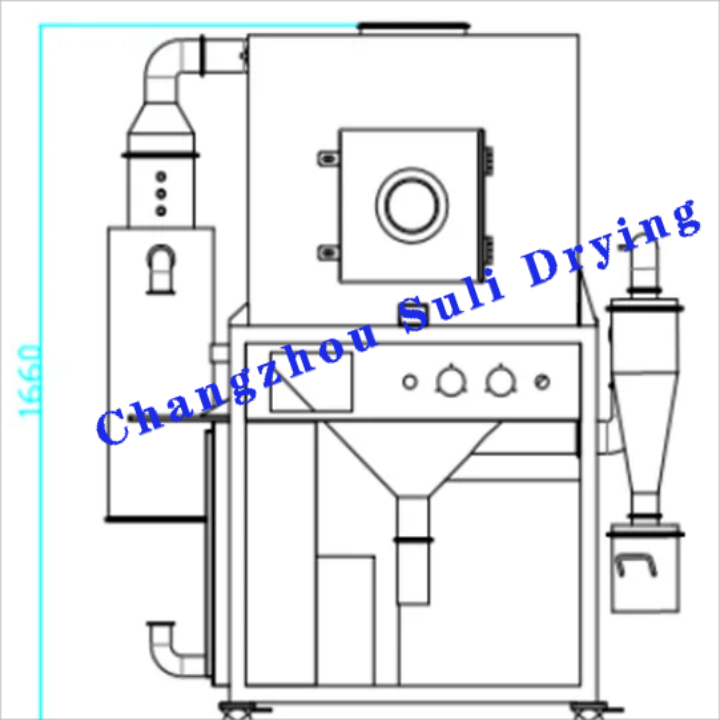

Spray Dryer Pictures:
