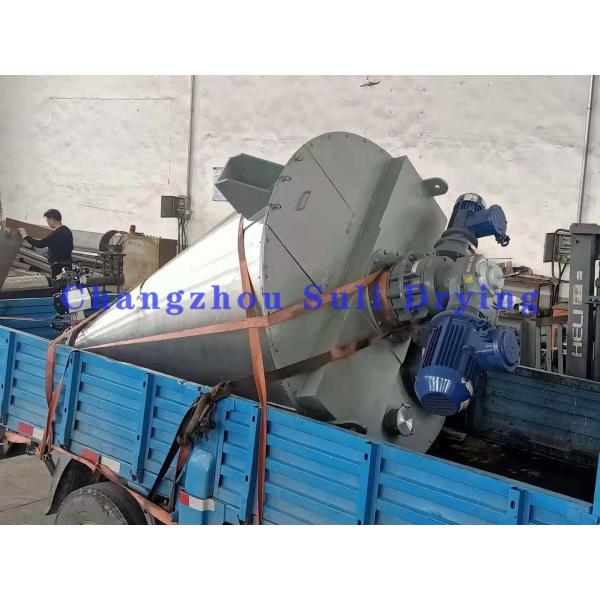

Non -Customized Dual Spiral Cone Mixed Machines Suitable For Dyes, Petroleum, And Metallurgy
Non -Customized Dual Spiral Cone Mixed Machines Suitable For Dyes, Petroleum, And Metallurgy
Non -Customized Dual Spiral Cone Mixed Machines Suitable For Dyes, Petroleum, And Metallurgy
Non -Customized Dual Spiral Cone Mixed Machines Suitable For Dyes, Petroleum, And Metallurgy
Specifications
Brand Name :
SULI
Model Number :
DSH
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Packaging Details :
According to customer requirements
model :
DSH
Material :
SUS304 Or 316L
Description

product description


Materials from the spiral public and self -rotation to produce composite movements in the cone, which mainly produce four forms of movement:
1. Rotate the spiral along the wall to make the material peripherally move along the cone wall;
2. The spiral self -rotation enables the bottom of the material self -cone to rises along the spiral;
3. The spiral public and self -rotating composite motion causes part of the material to be absorbed into the spiral cylindrical surface.
4. Rising materials have declined by their own gravity. The four movements generate the goal of flowing, cutting, diffusion, and a fast and uniform mixing in the mixed machine.

Non -Customized Dual Spiral Cone Mixed Machines Suitable For Dyes, Petroleum, And Metallurgy


Features


◎ Flying knife can be installed, sprayed toastal assembly to meet special process requirements.
◎ The material outlet valve has two ways: manual and pneumatic.
◎ Special materials can increase motor power (aggravated).

Non -Customized Dual Spiral Cone Mixed Machines Suitable For Dyes, Petroleum, And Metallurgy


Applications


It is used in chemical industry, medicine, pesticide, dye, oil, metallurgy, building materials and other powder (solid-solid), powder and liquid (solid-liquid), liquid and liquid (liquid-liquid) mixing, reaction, drying, drying, drying, drying, drying, drying ,cool down.

Technical specification

model 单位 DSH0.3 DSH0.5 DSH1 DSH2 DSH4 DSH6 DSH10
Full volume (m3) 0.3 0.5 1 2 4 6 10
Loading coefficient 0.4-0.6
Mixture (um)40-3000
Working conditions Normal temperature, normal pressure, dust sealing
Per time (kg) 180 300 600 1200 2400 3600 6000
power (kw) 2.2 2.2 5.5 5.5 11 20.7 30.7
Mixed time (min)4-10(Special materials are determined by the test)
Total Weight (kg) 500 1000 1200 1500 2800 3500 4500
