Dehydrated Vegetables CT Series Hot Air Circulation Oven Electric Heating
Dehydrated Vegetables CT Series Hot Air Circulation Oven Electric Heating
Dehydrated Vegetables CT Series Hot Air Circulation Oven Electric Heating
Dehydrated Vegetables CT Series Hot Air Circulation Oven Electric Heating
Dehydrated Vegetables CT Series Hot Air Circulation Oven Electric Heating
Dehydrated Vegetables CT Series Hot Air Circulation Oven Electric Heating
Specifications
Brand Name :
suli
Model Number :
CT-C
Certification :
ISO9001
Place of Origin :
china
MOQ :
10 set
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
According to customer requirements
Material :
sus304, carbon steel, 316l
Heat Source :
Steam, electricity, far infrared, electric steam
Production requirements :
Customized according to customer requirements
Control System :
PLC+HMI
Description

Application of hot air circulation oven:
Hot air circulation oven is used for heating, curing, drying and dehydrating materials in the pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry and other industries. Such as raw materials, Chinese herbal medicine slices, extracts, powders, granules, dehydrated vegetables, etc.

Scope of application:
Hot air oven is suitable for baking chemical gases and food processing items to be baked, ink curing, paint film drying, etc. It is widely used in electronics, motors, communications, electroplating, plastics, hardware chemicals, instruments, printing, pharmaceuticals, PC boards, powders, impregnation, spraying, glass, wood building materials, etc. Precision baking, drying, tempering, preheating, shaping, processing, etc.; internal heat circulation, the baked objects are heated evenly.

Performance characteristics:
Most of the hot air circulates in the box, with high thermal efficiency and energy saving. Using forced ventilation, the box is equipped with an adjustable air distribution plate, the material is dried evenly, and the heat source can be steam, hot water, electricity, and far infrared, with a wide range of choices. The whole machine has low noise and balanced operation. The temperature is automatically controlled and easy to install and maintain. It has a wide range of applications and can dry various materials. It is a universal drying equipment.

Technical specification:

Industry standard model

Technical Parameters

Model specification

 Dry each time
(kg)		 Applied power
(kw)		 Steam
(kg/h)		 Cooling area
(m2)		 Air volume
(m³/h)

Up and down

temperature difference
(oC)

Use a

plate

Dimensions

Facial width × depth × height

 Supporting hand cartar

Equipment

weight
RXH-14-B CT-Ⅰ 120 1.1 20 20 2800 ±2 48 2430×1200×2375 2 1200
RXH-27-B CT-Ⅱ 240 2.2 40 40 5200 ±2 96 2430×2200×2433 4 1500
RXH-41-B CT-Ⅲ 360 3 60 80 8000 ±2 144 3430×2200×2620 6 2000
RXH-54-B CT-Ⅳ 480 4 80 100 9800 ±2 192 4460×2200×2620 8 2300
RXH-5-C CT-C-O 25 0.45 5 5 3450 ±2 16 1130×1100×1750 0 800
RXH-7-C CT-C-ⅠA 50 0.45 10 10 3450 ±2 24 1400×1200×2000 1 1000
RXH-14-C CT-C-Ⅰ 120 0.45 18 20 3450 ±2 48 2300×1200×2000 2 1500
RXH-27-C CT-C-Ⅱ 240 0.9 36 40 6900 ±2 96 2300×2200×2000 4 1800
RXH-27A-C CT-C-ⅡA 240 0.9 36 40 6900 ±2 96 4460×1200×2290 4 1800
RXH-41-C CT-C-Ⅲ 360 1.35 54 80 10350 ±2 144 3430×2200×2000 6 2200
RXH-42A-C CT-C-ⅢA 360 1.35 54 80 10350 ±2 144 2300×3200×2000 6 2200
RXH-54-C CT-C-Ⅳ 480 1.8 72 100 13800 ±2 192 4460×2200×2290 8 2800
RXH-25-A High -efficiency High temperature Far -infrared sterilization oven power supporting according to temperature requirements 1200×1000×1600 1 1200

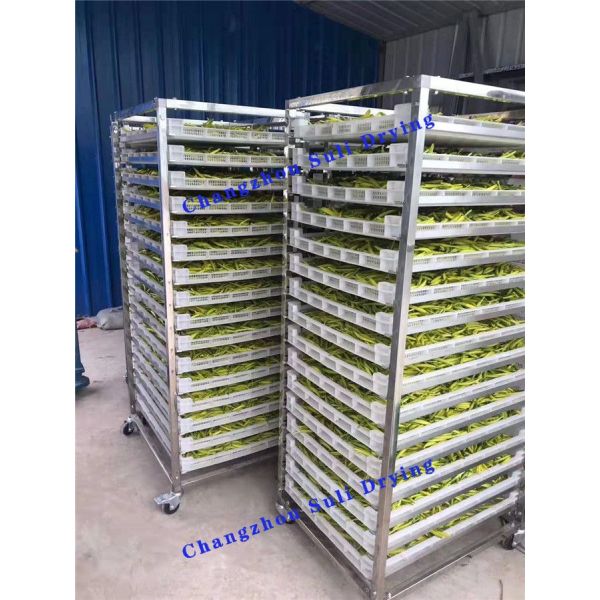

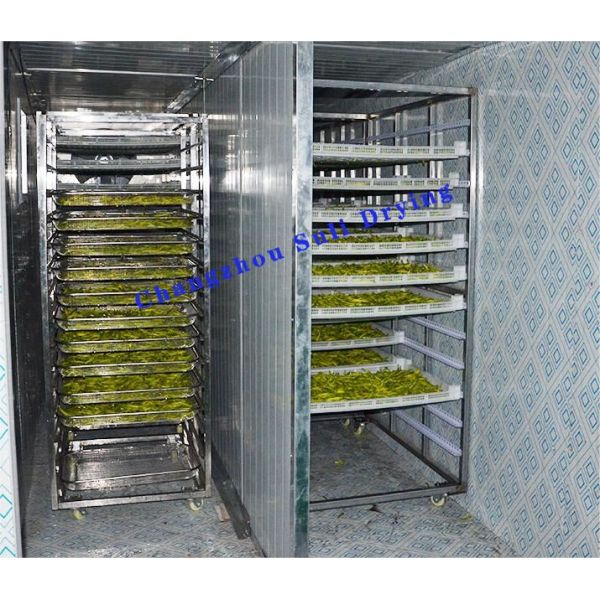

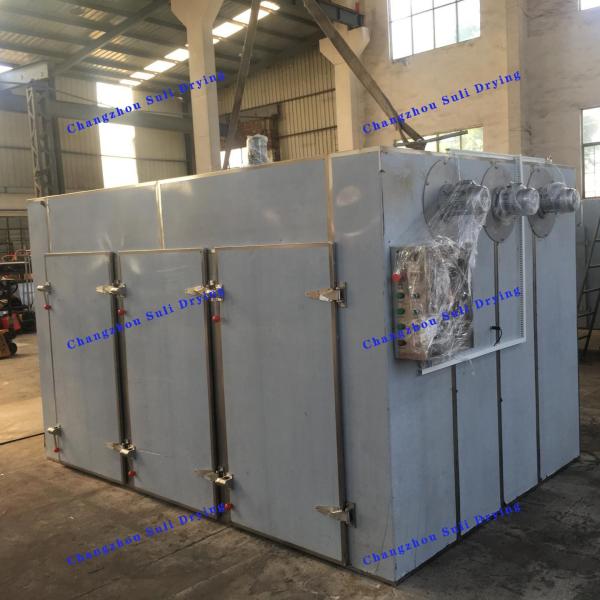

On-site shooting of Suli Drying Factory:

Dehydrated Vegetables CT Series Hot Air Circulation Oven Electric Heating

Dehydrated Vegetables CT Series Hot Air Circulation Oven Electric Heating

Dehydrated Vegetables CT Series Hot Air Circulation Oven Electric Heating
