Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Specifications
Brand Name :
WKS
Model Number :
WKS-3
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/month
Delivery Time :
10-30 working days
Packaging Details :
Normally it is packed in the plywood case, or loaded directly in the container after film wrapping
Name :
Hot Air Oven Dryer
Usage :
Reduce Material's Moisture
Product name :
Hot Air Drying Oven
Type :
Drying Oven
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Material :
Stainless Steel
Color :
Silver
Description

Customized Hot Air Circulation Dryer Oven for Chinese Medicine Herbs Drying Machine

Hot Air Oven Dryer

Important parts about Oven dryer WKS-3

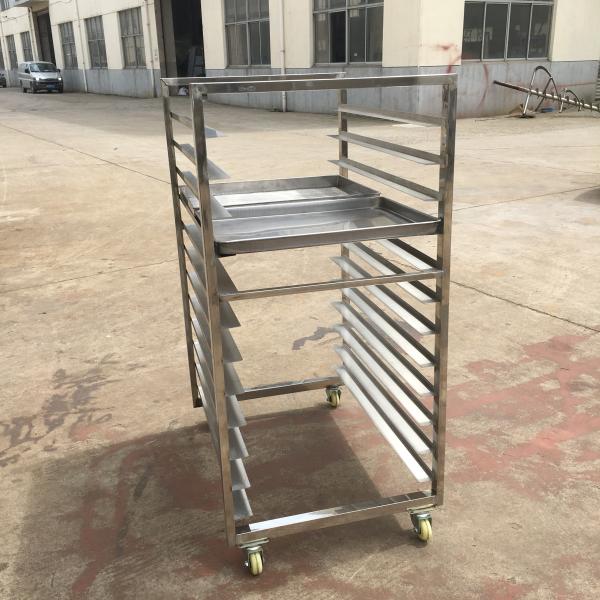

4*Trolleys

96*Trays

Dimension 2300*2200*2000

Standard power distribution auxiliary heat(15-30kw)

2*Circulating hot air blower

1*Moisture release outlet

1*fresh air inlet

1*control panel

Axial Fan

- Power: 0.45kw

- Material: Aluminum alloy casting

- Speed: 2800r/min

- Air flow:3000m³/hour

- The fan has the feature of high temperature resistance, corrosion resistance, low noise, low power and large air flow.

Heater

The oven's default heat source is electricity, using a W-shaped stainless steel electric heating tube. Also according to customer requirements to use gas, LPG, oil, steam, coal, wood and other biomass particles as heat source..

Technical parameters

Model Heater
(kW)		 Fan
(kW)		 Tray
Qty.		 Tray & Trolley
(mm)		 Trolley
Qty.		 Dimensions
(mm)		 Weight
(kg)
WKS-1 6~9 0.45 24 640*460*45
950*700*1300		 1 1400*1200*2000 400
WKS-2 9~15 0.45 48 2 2300*1200*2000 600
WKS-3 15~30 0.9 96 4 2300*2200*2000 900
WKS-4 15~45 1.35 144 6 3660*2300*2000 1500
WKS-5 15~60 1.8 192 8 5000*2250*2100 2000

Our service

We provide complete Pre-service such as 24 Hours online service for your consult & Help choose right model & a series of service,person,advise. Middle service such as Give you best offer Provide discount for many sets order & Do customer's request & Choose payment term as you are convenient & Promptly production and delivery & inform you in time & Can provide invoice value as you like to decrease your tax. After sale like service 1 year warranty service & Technical Engineer are available for oversea training & Free change for some parts Remote control technical consult.
