Specifications
Brand Name :
MG
Model Number :
MGDM-1.0
Certification :
CE ISO9001:2008
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100 Sets per month
Delivery Time :
5-7 working days
Packaging Details :
Wooden box packaging
Advantage :
Professional manufacturer
Production Capacity :
1-3t/h
Voltage :
220V/380V/410V/440V or customized
Manpower :
2-3 people
After-sales Service Provided :
Engineers available to service machinery overseas
Dimension(L*W*H) :
Depends
Application :
Dry mortar powder
Warranty period :
12 months
Power(W) :
7.5kw
Features :
Energy- saving
Price :
negotiable
Description

Improved Dry Mortar Mixer Machine forTile Adhieve or Other Dry Mortar Powder

Description of Improved spiral ribbon mixer:

In order to convenient with the worker packing the finished products, we install the mechanical discharge device on the multi spiral ribbon mixer.

There are two kinds of discharge methods:valve port discharging and open mouth port discharging.

Main features:

More efficiency: adopts screw conveying discharges style, greatly improved working efficiency.

Conveniently packing: this equipment with valve port and open mouth type, suitable for two kinds of packing bags .

Easy operation: with manual and food switch, easy to up and stop .

Environment friendly: this type mixer improved the working environment, and reduced the working labor intensity.

The advantages of the equipment :

This model mixer can stop the main motor of the mixer when discharging, so as to save the electricity consumption. We assume that every batch takes 10 minute as a circle.

Every batch save electricity: motor 7.5kw*10minutes =1.25kw

every day produce 10 batch total save electricity: 1.25kw*10=12.5kw

so that every year saving electricity: 12.5*300 days=3750kw

We assure 1RMB/kw so that it can save RMB3750 every year.

Main technical parameters

Item Mixing motor(kw) Hoist Motor (kw) Production capacity (KG/Time)

Capacity

(t/h)

 Dimension(mm0 Barrel Dia(mm)
MG300 Type 2.2 3 300 0.5-1 2200*700*1500 Φ700
MG500 Type 5.5 3 500 1-1.5 3000*800*2000 Φ800
MG1000 Type 7.5 3 1000 2-3 3300*1050*2100 Φ1050
MG1500 Type 11 3 1500 3-4 3300*1050*2100 Φ1050
MG2000 Type 11 4 2000 4-5 3680*1200*2000 Φ1200

The MGDM-1.0 Improved Dry Mortar Mixer Machine in factory:

Industrial Dry Mortar Mixer Machine For Putty Powder Or Tile Adhieve

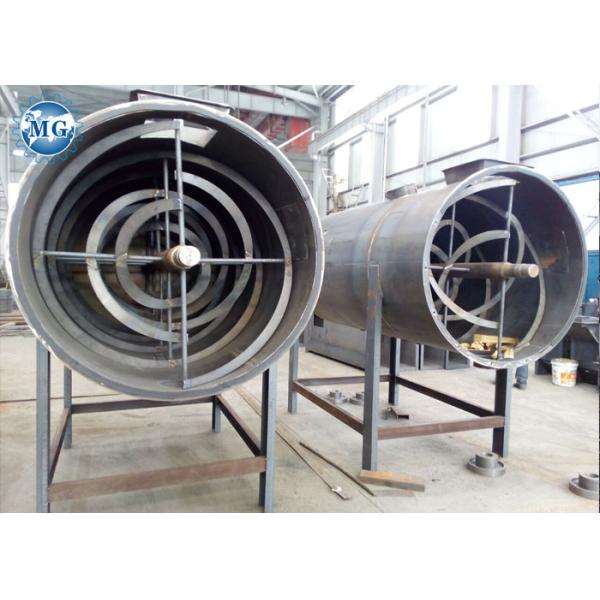

The inner structure of MGDM-1.0:

Industrial Dry Mortar Mixer Machine For Putty Powder Or Tile Adhieve

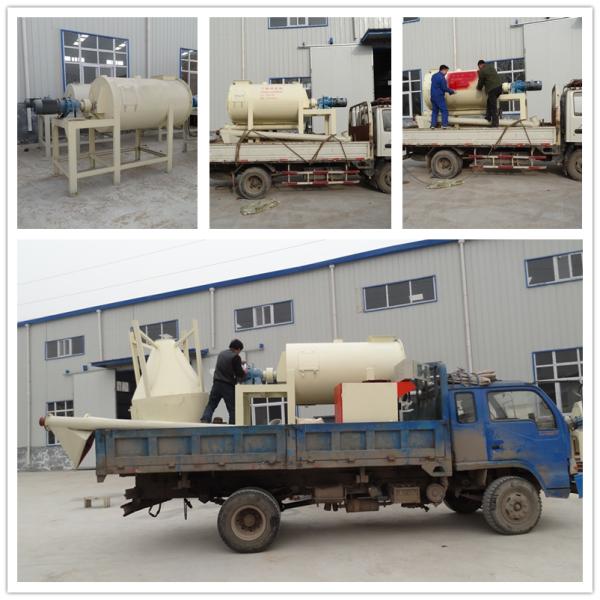

The loading and delivery of MGDM-1.0 Improved Dry Mortar Mixer Machine:

Industrial Dry Mortar Mixer Machine For Putty Powder Or Tile Adhieve

We are the integrated solution supplier of dry mortar production line (professional maufacturer over 20 years), provide you quality verified equipment, formula process, raw material of additives, and good after-sales services.

Escort for your success!
